Model 2300QC Twin Pac

Mobile 24V DC Aircraft Starting Unit

PATENTED

Ideal for jump starting aircraft, tank and military truck engines, this 24V All-In-One air portable/carry-on START PAC® with built-in chargers, power plug and cables is specifically designed for engine starting only.

CONTACT US ABOUT THIS UNIT
PRINT SPECIFICATION SHEET
PARTS & ACCESSORIES

PLEASE NOTE – THIS UNIT IS NOT DESIGNED FOR BATTERY CHARGING

STARTING UNIT model reference2300QC
Battery typeLead acid
Voltage24 VDC
Peak Current2300 A
Capacity @10 Amp Rate28 Ah
Total Weight67lbs/30kg

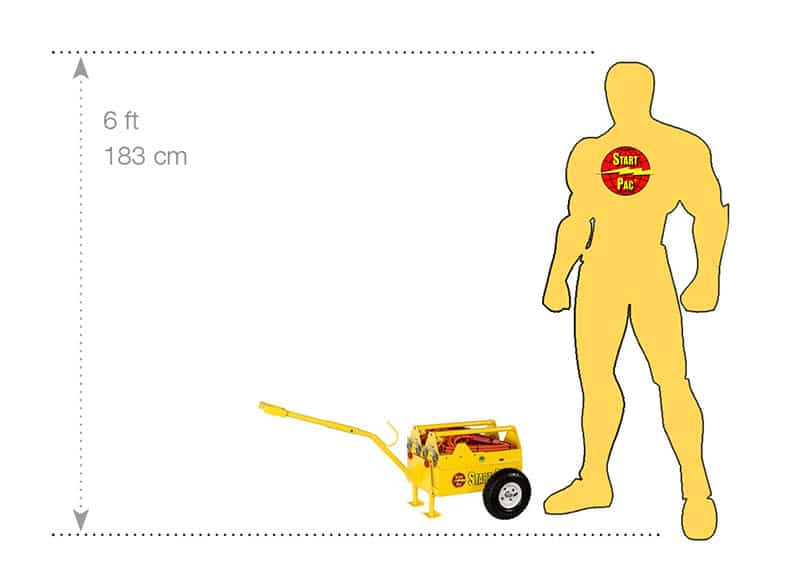

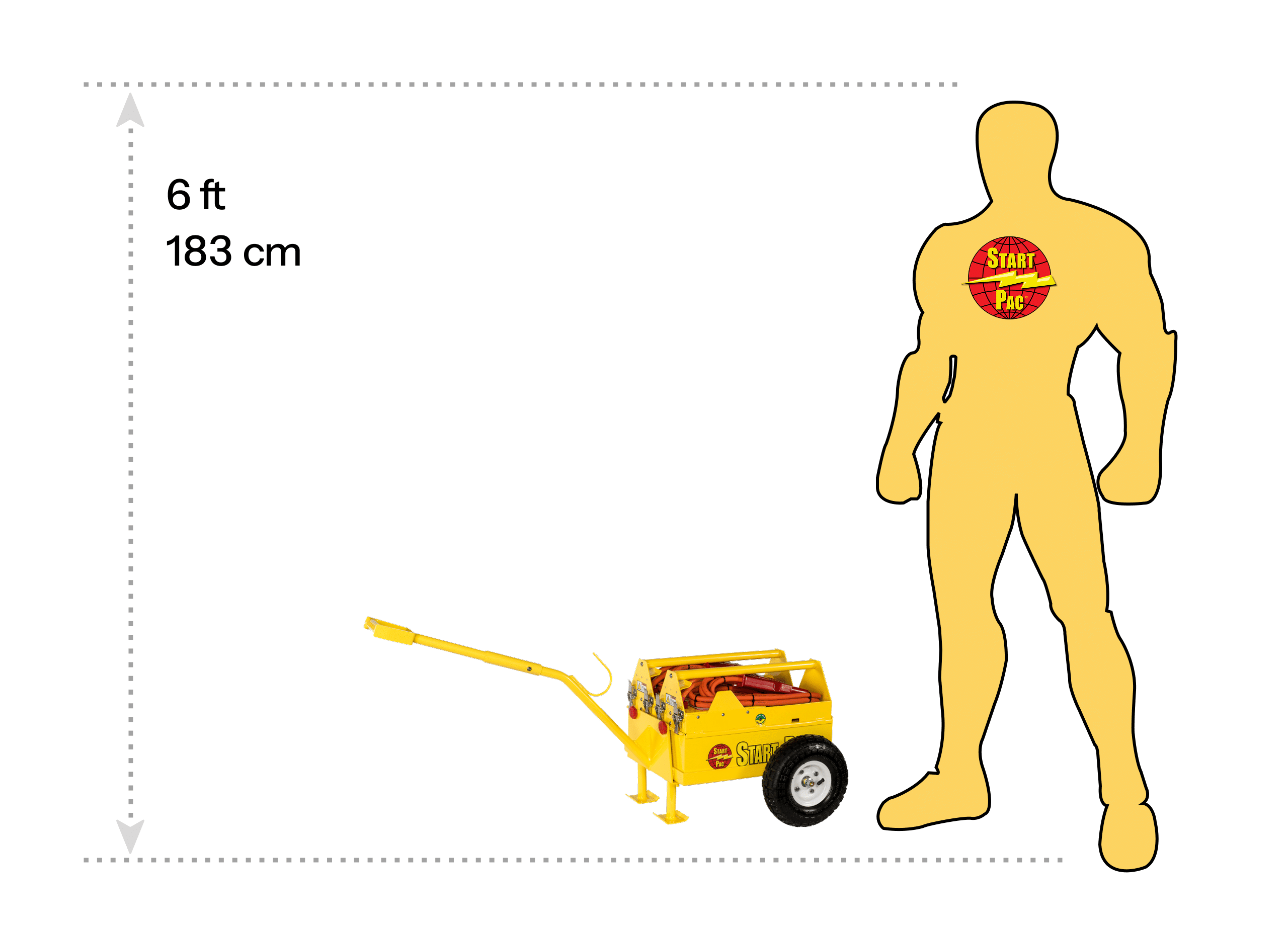

Dimensions – Length x Width x Height19.2″ x 7.5″ x 11.5″ 48.8 x 19 x 29.2 cm
Charger typeBuilt in
Float type charger input (must be specified on order)90-240 VAC 50/60 hertz
Charging time range30 minutes to 3 hours

This portable starting unit is one of our most popular for ground use at home or in the field; it will start turbine or piston engines with up to 1500 horsepower. Versatile and dependable, this 24 volt Twin Pac can be used as a single unit or separated into two complete units that can easily be carried on board different aircraft. This Twin Pac comes with its own trolley and “Y” connector included and its environmentally responsible, low VOC powder coating protects the case from wear, tear and poor weather conditions.

Please note that the 2300QC Twin Pac is not to be used as an aircraft battery charger.

Load vs. Time (click to view larger)

2300QC Twin Pac Load vs Time Curve

NOTE: When storing the START PAC® for more than 30 days, fully recharge the unit, then remove the battery box from the charging unit and keep separately. Do not plug the charging top in when it is disconnected from the battery box.
