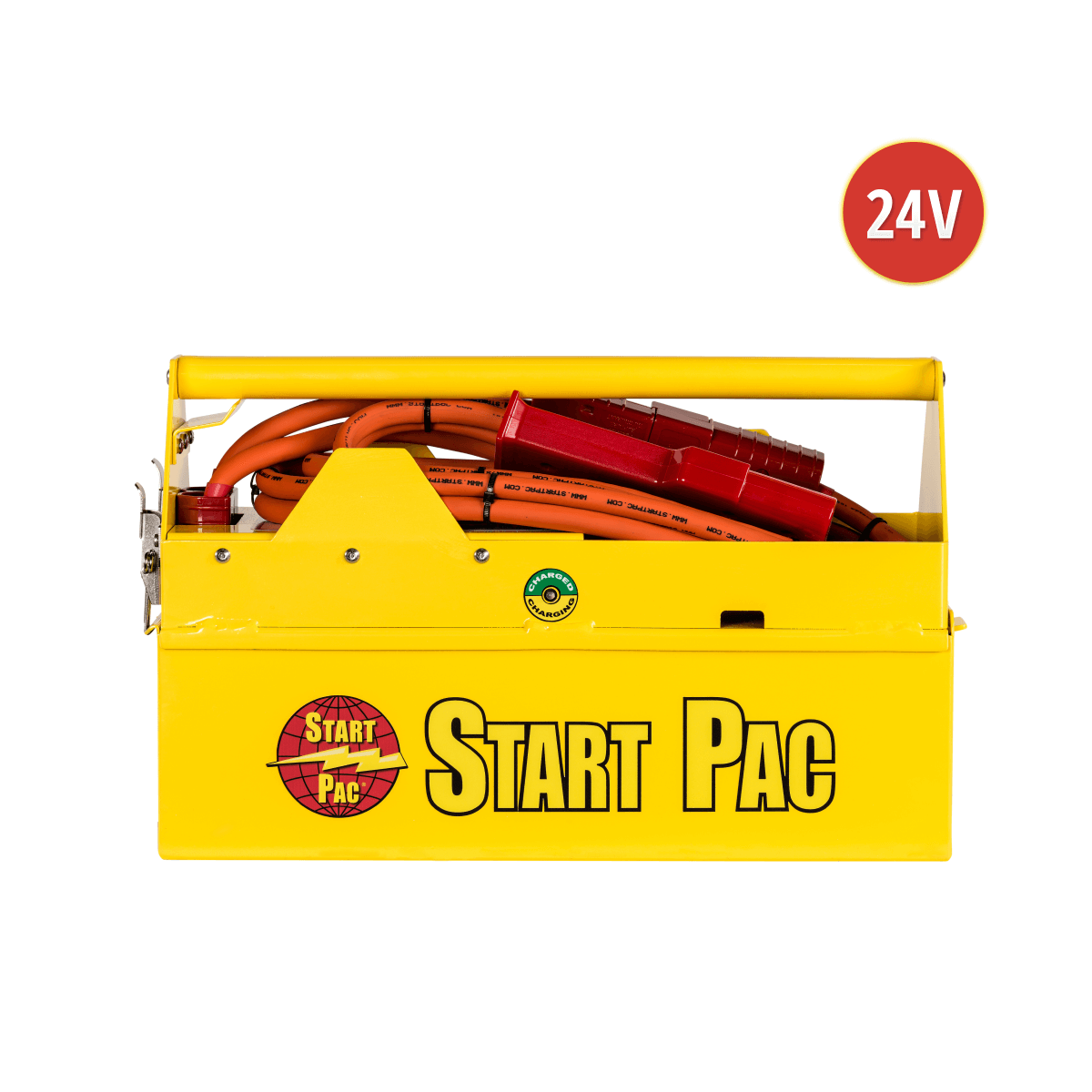

Model 2300QC

Mobile 24V DC Aircraft Engine Jump Starter

PATENTED

Ideal for ground use when jump starting aircraft, tank and military truck engines, this 24V All-In-One air portable/carry-on START PAC® with built-in chargers, power plug and cables is specifically designed for engine starting only.  Additionally, the environmentally responsible, low VOC powder coating protects the case from wear, tear and poor weather conditions giving you maximum peace of mind.

Contact us about this unit
Print Specification Sheet
Parts & Accessories

PLEASE NOTE - THIS UNIT IS NOT DESIGNED FOR BATTERY CHARGING

STARTING UNIT model reference2300QC
Battery typeLead acid
Voltage24 VDC
Peak Current2300 A
Capacity @10 Amp Rate28 Ah
Total Weight67lbs/30kg
Dimensions - Length x Width x Height19.2″ x 7.5″ x 11.5″48.8 x 19 x 29.2 cm
Charger typeBuilt in
Float type charger input (must be specified on order)90-240 VAC 50/60 hertz
Charging time range30 minutes to 3 hours

One of our most popular ground power unit starters for ground use at home and in the field, this portable starting unit will start turbine or piston engines with up to 1500 horsepower.  It is equipped with universal chargers and is also available as a “Twin Pac”.  Its environmentally responsible, low VOC powder coating protects the case from wear and poor weather conditions.

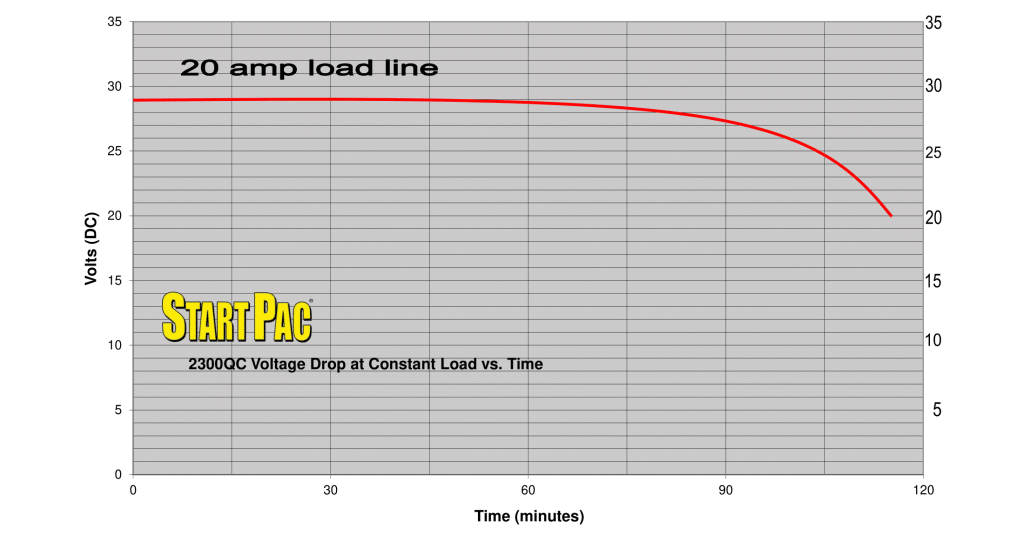

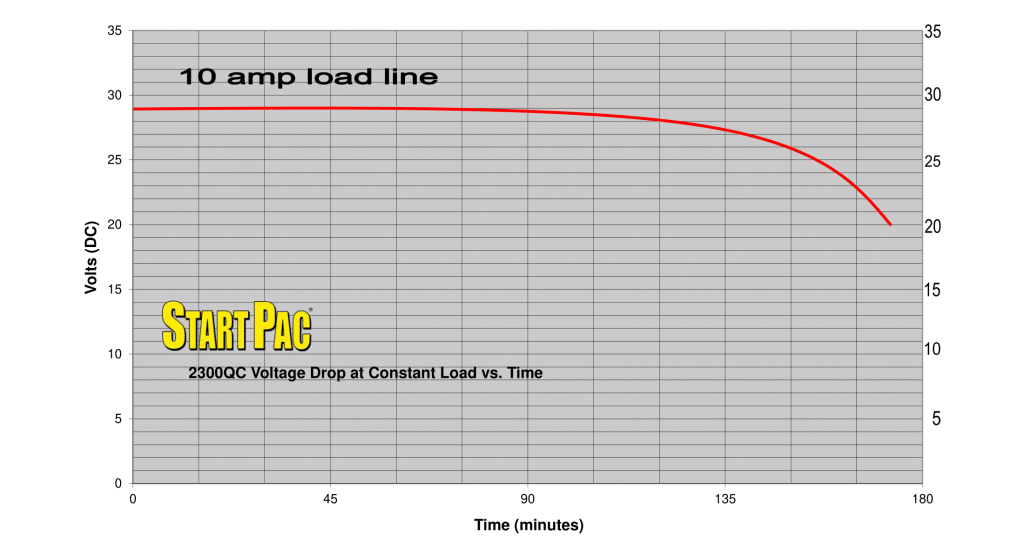

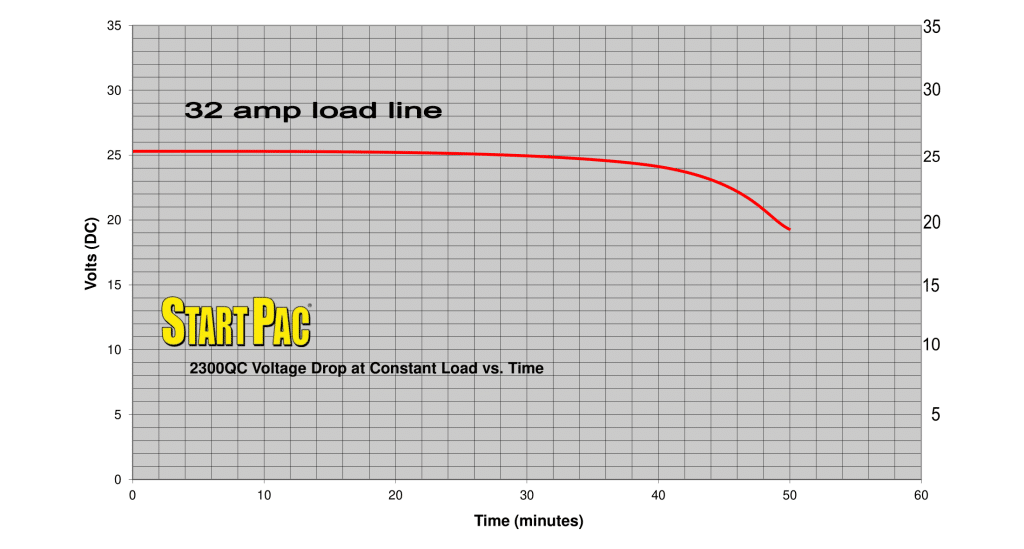

Load vs. Time (click to view larger)
2300QC Load vs Time Curve

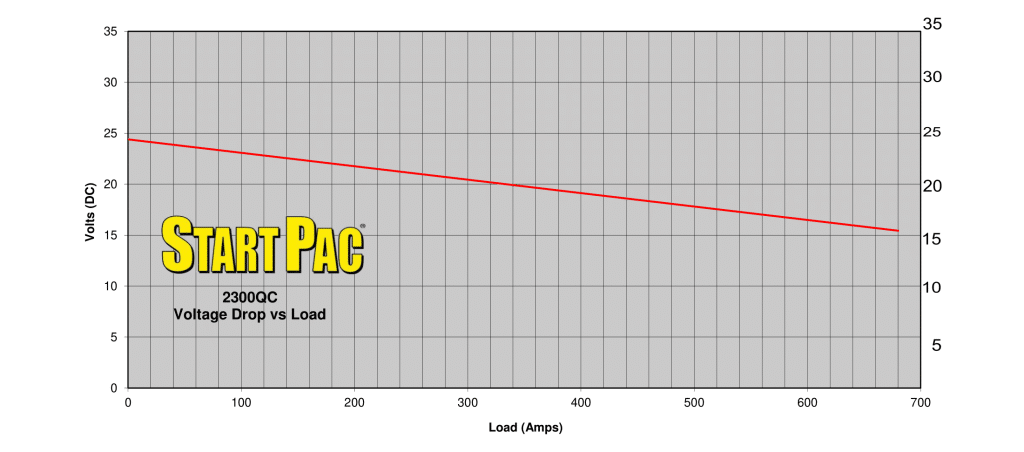

Voltage Drop vs. Load (click to view larger)
2300QC Load vs Time Curve

NOTE: When storing the START PAC® for more than 30 days, remove the battery box from the charging unit and keep separately.

All START PAC™ products come with a 1-year warranty on workmanship and materials.*

Please handle this unit in a responsible manner.  START PAC™ is not responsible for damages caused by misuse or neglect.
