High capacity 24 volt aircraft starting battery

Model 3324XL Special

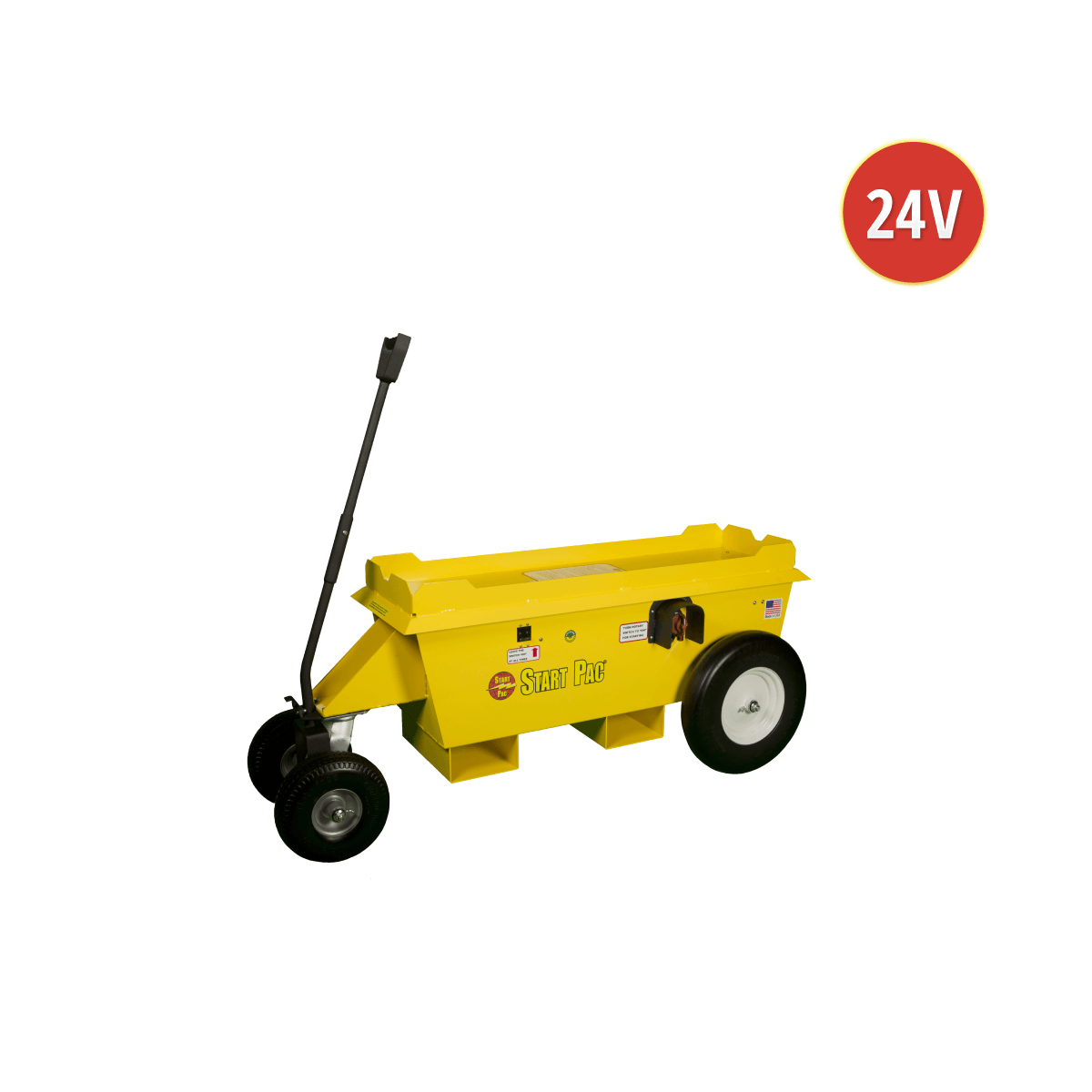

High Capacity 24V 210AMP Aircraft Starting Unit

PATENTED

This unit is designed for engine starting only.

The START PAC® GPU model 3324 XL Special is the largest 24 volt jump starter in the range with a capacity of 210 Amph. It is designed to perform an extensive number of starting on any type of aircraft. It is rated at 3500 peak starting amps. The high battery capacity allows multiple starts even on cold turbine engines. It is capable of starting any type of electrically started engine, even voltage sensitive ones.

CONTACT US ABOUT THIS UNIT
PRINT SPECIFICATION SHEET
PARTS & ACCESSORIES

PLEASE NOTE – THIS UNIT IS NOT DESIGNED FOR BATTERY CHARGING

STARTING UNIT model reference3324 XL Special
Battery typeLead acid
Voltage24 VDC
Peak Current3500 A
Capacity @10 Amp Rate210 Ah
Total Weight492lbs / 223kg

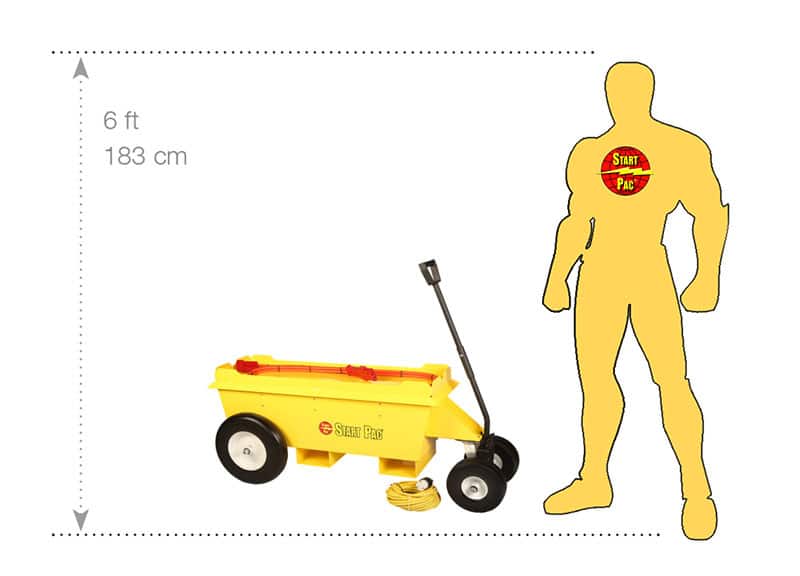

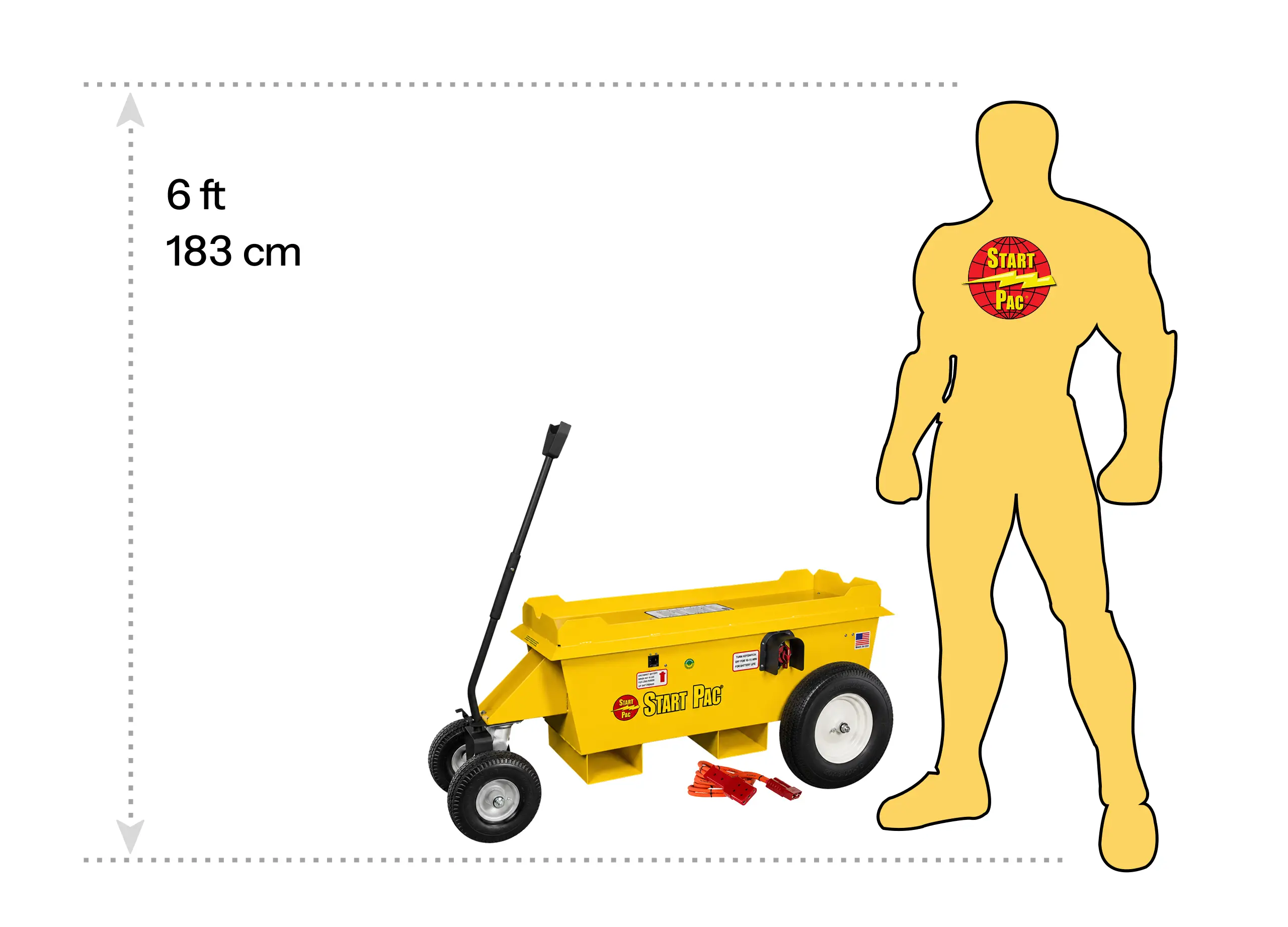

Dimensions – Length x Width x Height55” x 23” x 33” 139,7 x 58,4 x 83,8 cm
Charger typeBuilt in
Float type charger input (must be specified on order)110 VAC 50/60 hertz 220 VAC 50/60 hertz
Charging time range1 to 9 hours

The 3324XL engine starting unit will give faster, cooler starts (turbines are spooled to more revolutions per second, before fuel is injected) and extended turbine life (less stress on starter and other engine components) and at the same time preserves the costly aircraft’s batteries, which both help to lower operating costs. As a START PAC® secures all your engine starts, it will prevent you from any downtime. It can be used in remote locations using battery power to give extended time for cockpit maintenance checkout. Its large battery capacity will allow extended usage time when no AC power source is available; you can then save your onboard battery for emergencies only. This mobile unit will start any turbine, or piston engine and can be configured for 110 Volt or 220 Volt AC input.

The environmentally responsible, low VOC powder coating protects the case from wear and poor weather conditions and all-weather cover accessory is also available as an option for this unit to further protect it from inclement weather in order to gain the maximum performance and product life.

All START PAC™ products come with a 1-year warranty on workmanship and materials.*

Please handle this unit in a responsible manner. START PAC™ is not responsible for damages caused by misuse or neglect.
