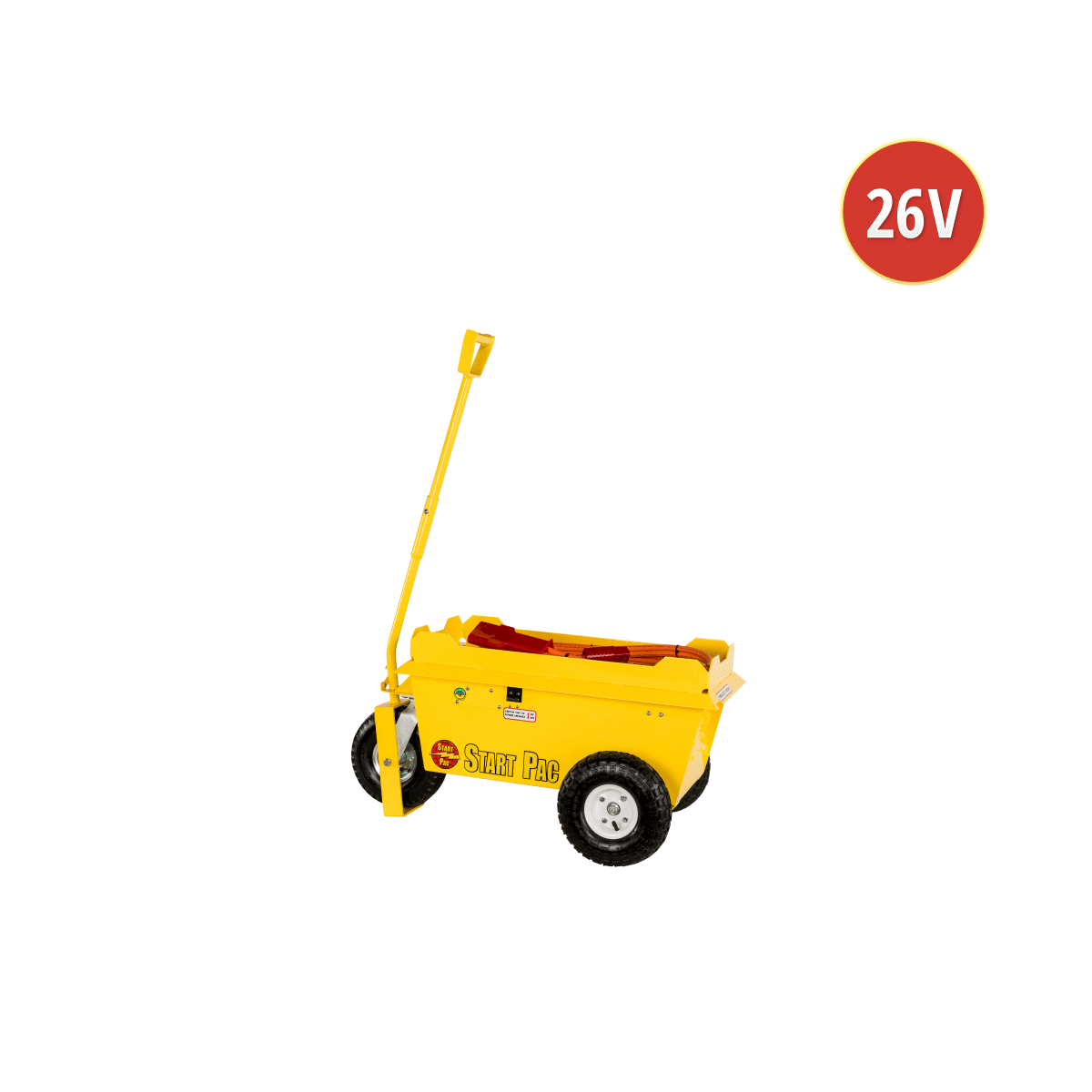

Model 3326 Special

PATENT PENDING

This turbine starting unit is designed to provide repeated superior starting power for voltage sensitive turbine engines. The Model 3326 Special ground power unit is designed for repeated engine starting requirements on voltage sensitive aircraft.

Contact us about this unit
Print Specification Sheet
STARTING UNIT model reference3326 Special
Battery typeLead acid
Voltage26 VDC
Peak Current2800 A
Capacity @10 Amp Rate84 Ah
Total Weight220lbs / 100kg
Dimensions - Length x Width x Height38″ x 21″ x 20″ 96.5 x 53.3 x 50.8 cm
Charger typeBuilt in
Float type charger input (must be specified on order)110 VAC 50/60 hertz 220 VAC 50/60 hertz
Approximate charging time when fully depleated (Hours)4

These StartPac GPUs are designed for ground use to perform repeated engine starting functions. When connected to AC power, the depleted batteries can be charged in four hours with the built-in battery chargers.

This turbine starting unit is designed to provide repeated superior starting power for voltage sensitive turbine engines. The Model 3326 SpecialGPU is designed for repeated engine starting requirements on voltage sensitive aircraft.

Batteries

  • Sealed cells non-hazardous
  • Valve regulated high amperage output lead acid

Chargers

  • 6 built in chargers for faster recharge time

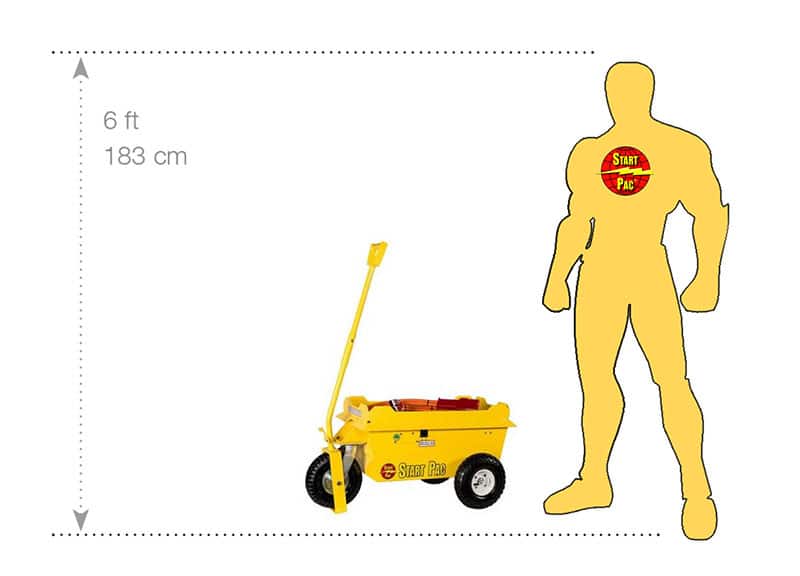

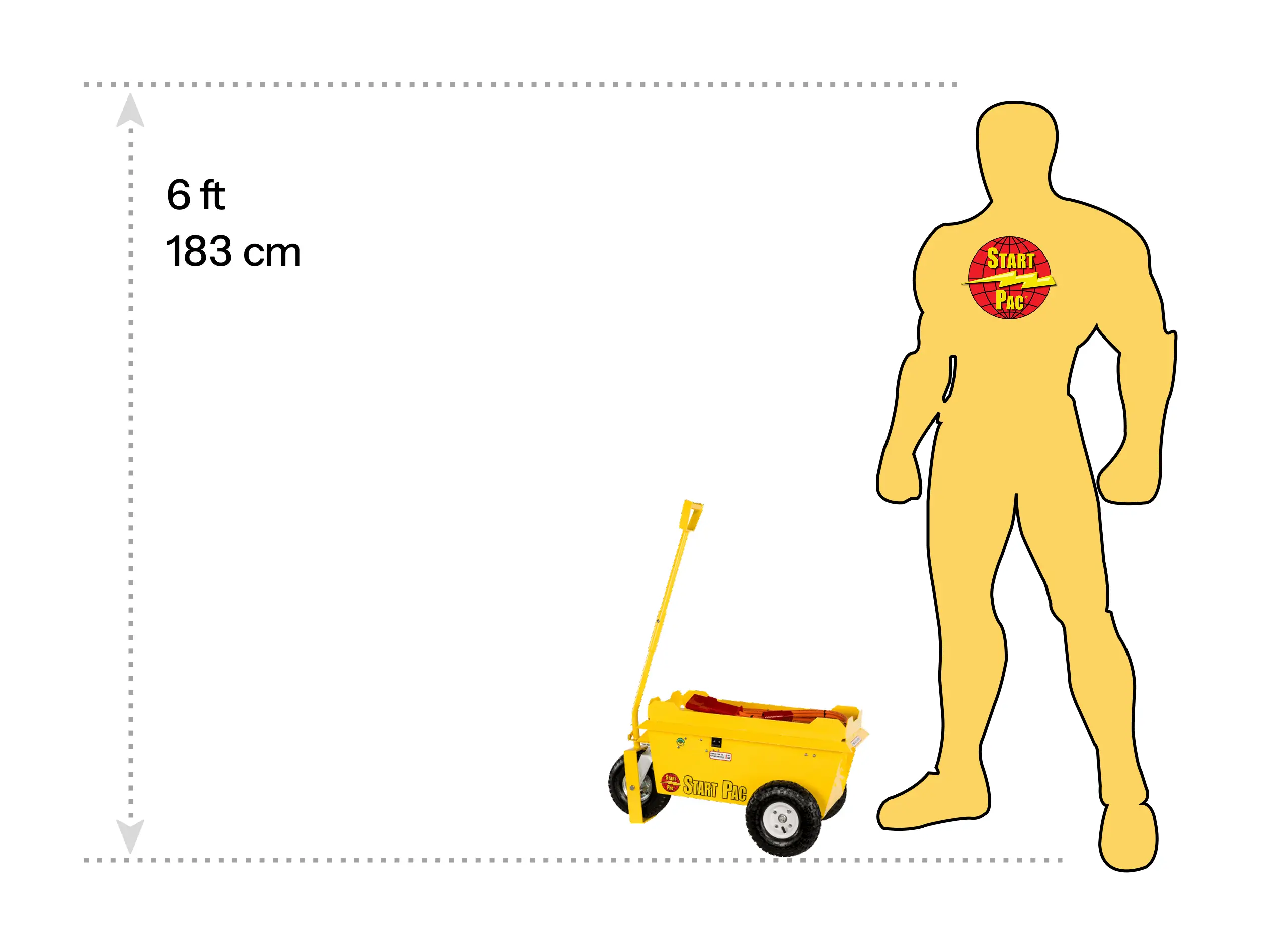

The following dimensions apply to each of the 3300s:
38″x21″x20″ Handle Height 48″.

This GPU is rated at 2800 peak starting amps and is a full 26 Volt battery pack (27.6 volts). Due to the extra starting power provided by the 26 Volt batteries, turbine engines will experience faster, cooler starts and extended turbine life. This model is primarily designed for superior starts on voltage sensitive aircraft.

This unit can be configured for 110 Volt or 220 Volt AC input. The 3326 Special weighs 220 lbs./100kilos. This GPUis designed for repeated engine starting only, always avoid discharging the batteries completely as damage to the cells can result, leading to premature battery failure.

Always recharge batteries immediately after use to achieve maximum battery life and optimum performance.

There are approximately thirty 110 volt and thirty 220 volt NEMA plugs in use. Also, customers have various receptaclesat their hangars and MRO facilities and may require specific AC cord length to meet their requirements. Due to these facts, we provide 50 foot AC power cordswith blank wall ends. If you provide the NEMA plug number and specify the AC power cord length you require we will build a cord to be shipped with your unit for a small fee.

NOTE – PLEASE USE #12 or Larger AC EXTENSION CORD

All START PAC™ products come with a 1-year warranty on workmanship and materials.*
