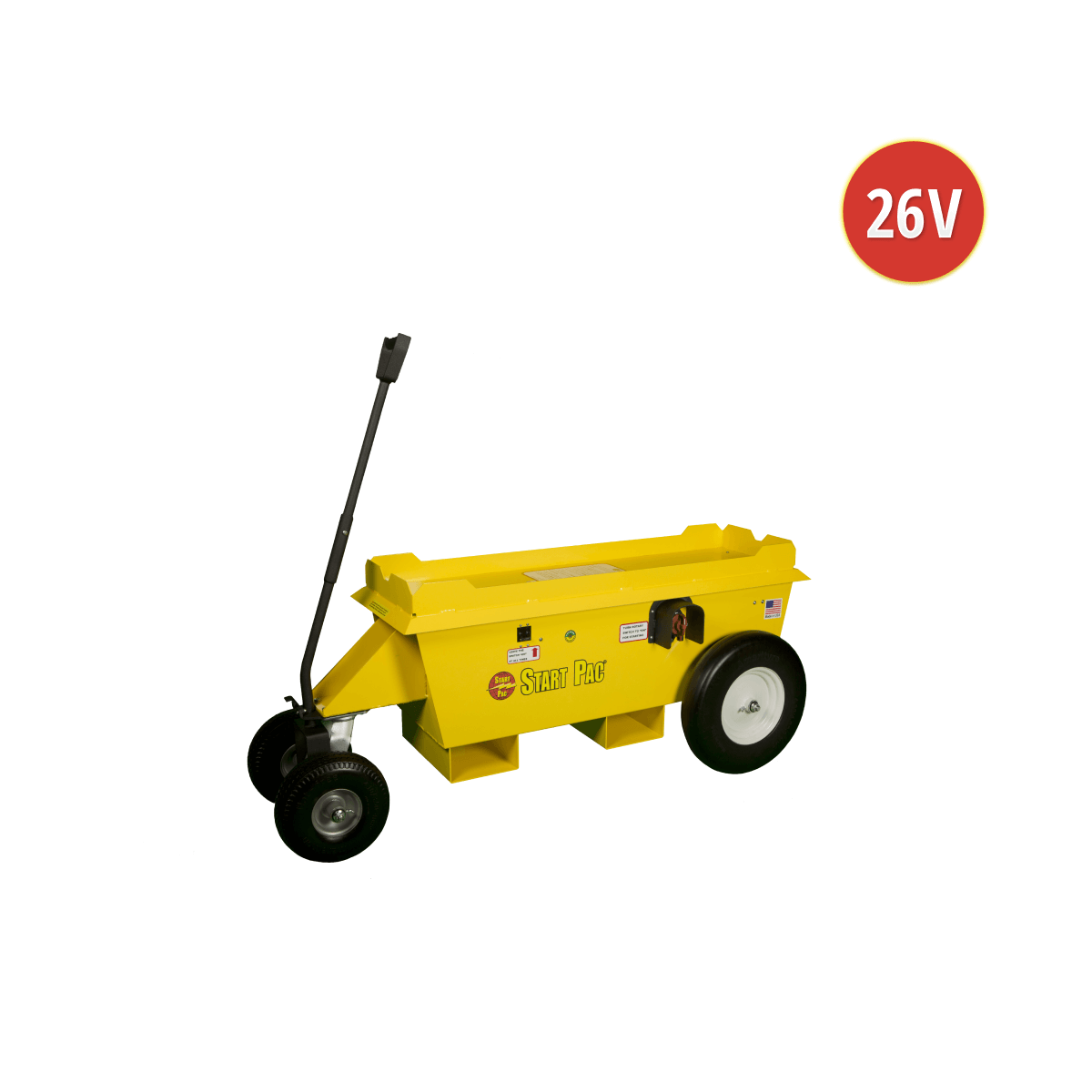

Mobile 26V Aircraft
Starting Unit – Model
3326XL Special

PATENTED

This unit is designed for engine starting only.

The START PAC® GPU model 3326 XL Special is the largest 26 volt jump starter in the range with a capacity of 210 amp hour. It is designed to perform an extensive number of starting on any type of aircraft. It is rated at 3500 peak starting amps. The high battery capacity allows multiple starts even on cold turbine engines. It is capable of starting any type of electrically started engine, even voltage sensitive ones.

Model: 3326XL Special

Please NoteThis unit is not designed for battery charging.

Description

The 3326XL engine starting unit will give faster, cooler starts (turbines are spooled to more revolutions per second, before fuel is injected) and extended turbine life (less stress on starter and other engine components) and at the same time preserves the costly aircraft’s batteries, which both help to lower operating costs. As a START PAC® secures all your engine starts, it will prevent you from any downtime. Its large battery capacity will allow extended usage time when no AC power source is available; you can then save your onboard battery for emergencies only. This mobile unit will start any turbine, or piston engine and can be configured for 110 Volt or 220 Volt AC input.

Specifications
  • Battery type Lead acid
  • Voltage26 VDC
  • Peak Current 3500 A
  • Capacity @10 Amp Rate 210 Ah
  • Total Weight 492lbs / 223kg
  • Dimensions – Length x Width x Height 55” x 23” x 33”
    139,7 x 58,4 x 83,8 cm
  • Charger type Built in
  • Float type charger input (*must be specified on order) 110 VAC 50/60 hertz* 220 VAC 50/60 hertz*
  • Charging time range 1 to 9 hours

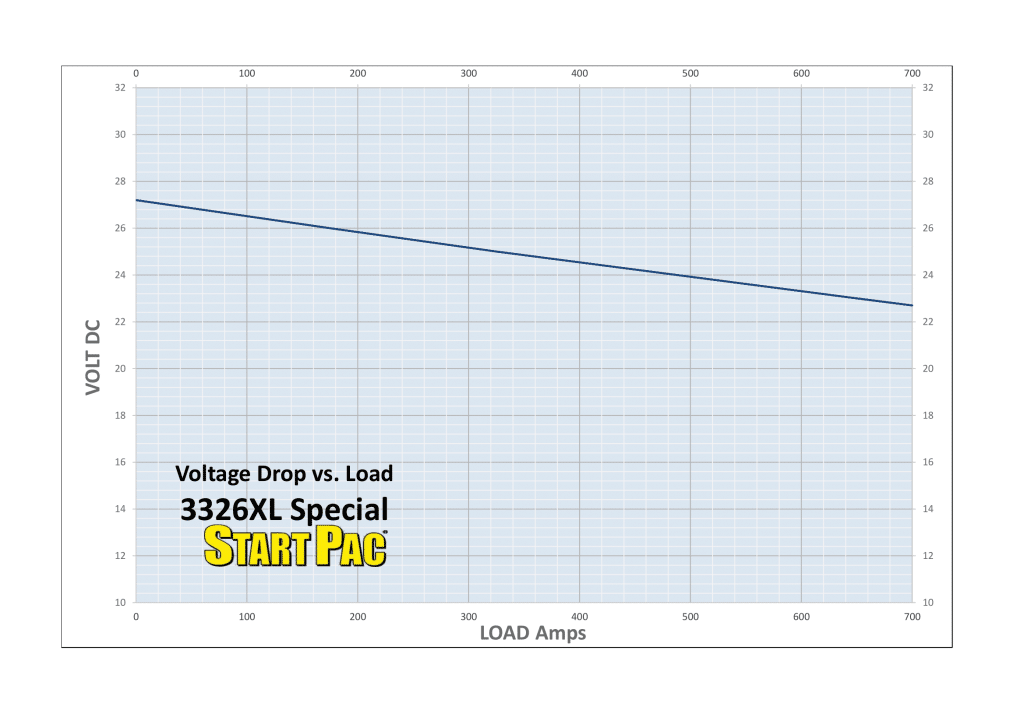

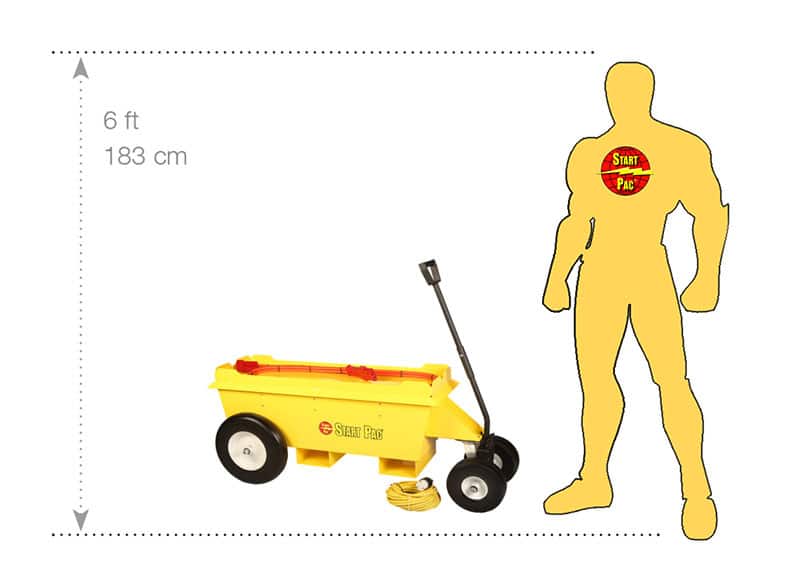

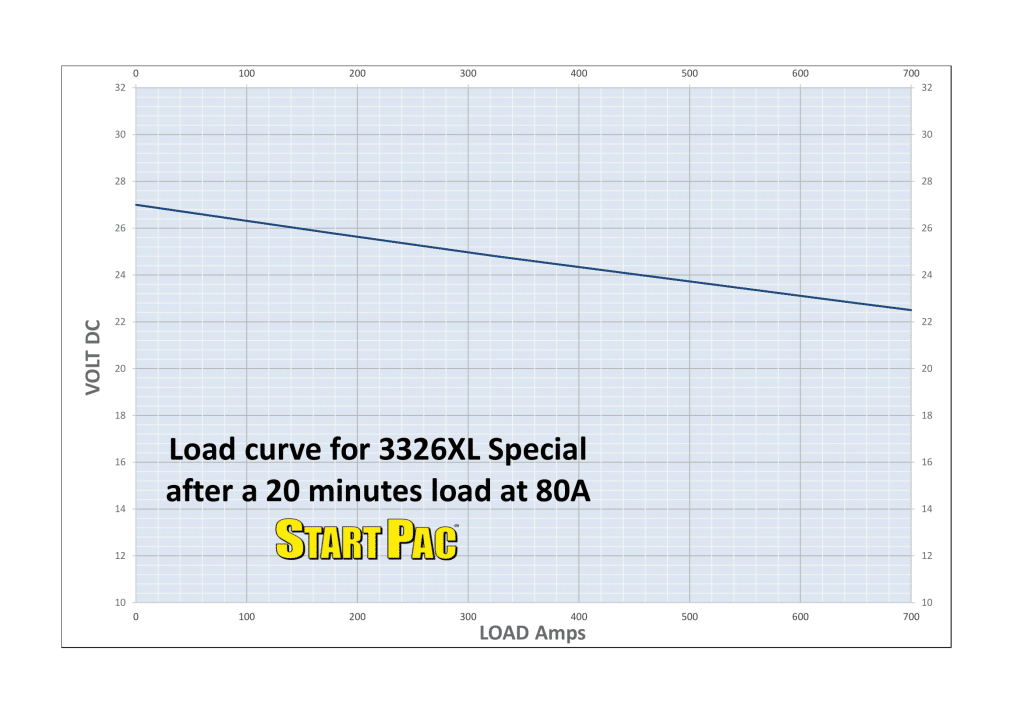

The environmentally responsible, low VOC powder coating protects the case from wear and poor weather conditions and all-weather cover accessory is also available as an option for this unit to further protect it from inclement weather in order to gain the maximum performance and product life.Model 3326XL Size voltage drop vs loadvoltage drop vs load after 20min load at 80a
