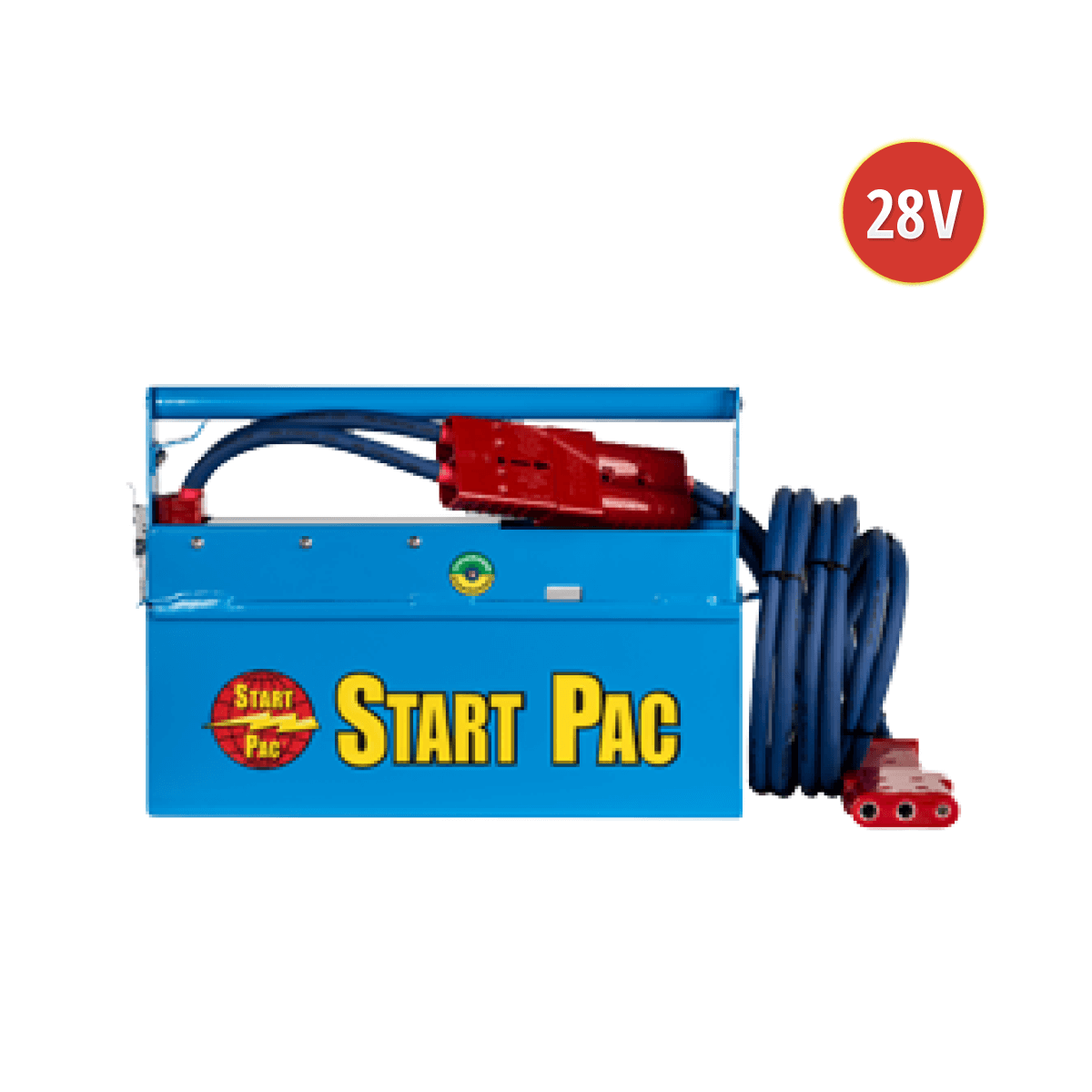

Model Li2000QC

Mobile 28V Lithium Aircraft Engine Starting Unit

PATENTED

Providing superior starts on small to medium size turbine engines – both planes and helicopters – this compact, portable Lithium-ion starting unit with built-in charger is a full 28VDC battery pack. Capable of starting turbine or piston engines, lithium technology is the lightest available on the market, which makes this lithium GPU ideal to preserve the aircraft battery.

CONTACT US ABOUT THIS UNIT
PRINT SPECIFICATION SHEET
PARTS & ACCESSORIES

PLEASE NOTE – THIS UNIT IS NOT DESIGNED FOR BATTERY CHARGING

STARTING UNIT model referenceLi2000QC
Battery typeSafe lithium-Ion
Voltage28 VDC
Peak Current2400 A
Capacity @10 Amp Rate20 Ah
Total Weight30lbs/13.6kg
Dimensions – Length x Width x Height16” x 3.75” x 12” 40.6 x 9.5 x 30.5 cm
Charger typeBuilt in
Float type charger input (must be specified on order)90-240 VAC 50/60 hertz
Charging time range1 to 6 hours

This patented START PAC® unit will provide a faster and cooler engine start than most ship’s aircraft batteries (the turbine is spooled to more revolutions per second before fuel is injected). Thus, turbine life will be extended because there is less stress on the starter and other engine components. This will preserve the aircraft’s costly batteries and help lower operating costs. Your airborne, on-board battery can then be saved for emergency use only.

With separate removable batteries that can be changed in less than one minute (no tool necessary), this unique feature allows the START PAC®’s user to switch the batteries in the field without needing to return the unit to the shop or manufacturer for battery replacement; it’s virtually maintenance free. Additionally, certain aircraft will allow the ship’s generator to back charge a GPU. In this manner, the START PAC® unit can be recharged in the field indefinitely without an AC source.

The Li2000QC is coated in an environmentally responsible, low VOC powder coating, which protects it from wear, tear and extreme weather conditions. Additionally, an all-weather cover is also available as an option to protect this unit further from inclement weather and to gain the maximum performance and product life.

This battery pack has been specifically designed for engine starting only. Note that it is not to be used as an aircraft battery charger.

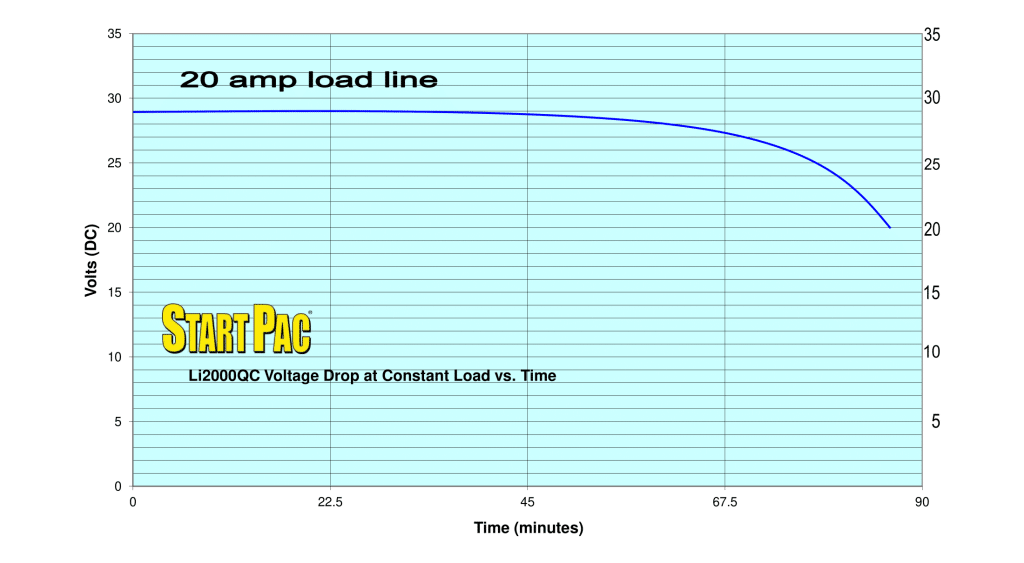

Load vs. Time (click to view larger)

Li2000QC Load vs Time Curve

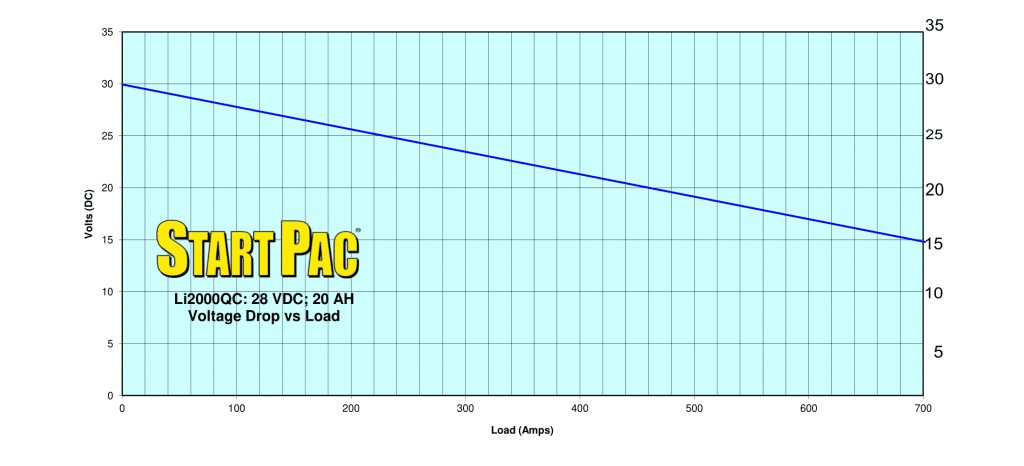

Voltage Drop vs. Load (click to view larger)

Li2000QC Drop vs Load Curve

All START PAC™ products come with a 1-year warranty on workmanship and materials.*

Please handle this unit in a responsible manner. START PAC™ is not responsible for damages caused by misuse or neglect.
