Product Set

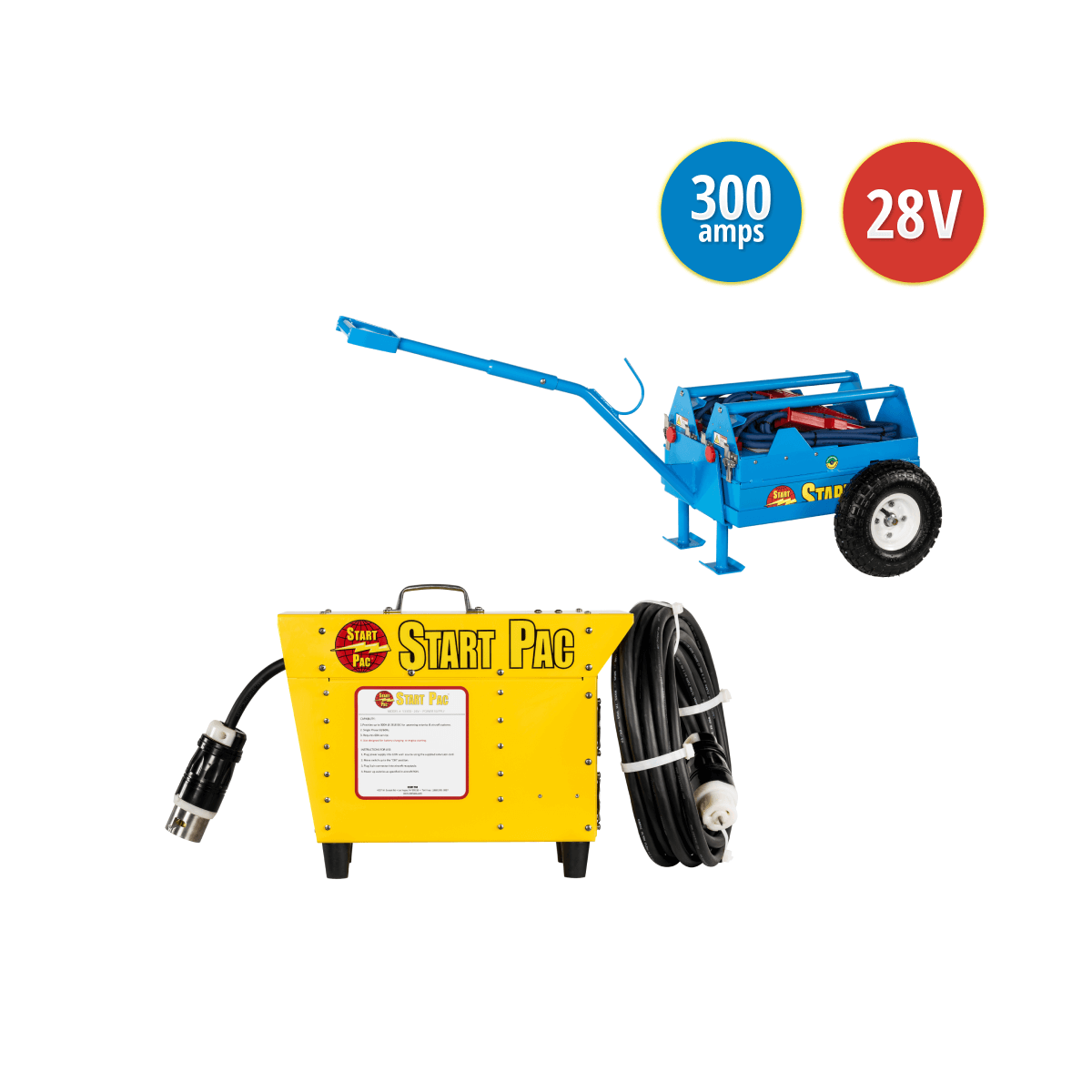

Model Li3328QC 300 Amp Set

Mobile 28V DC Lithium Aircraft Starting Unit
MODEL LI2800QC TWIN PAC
Mobile 24V/28V 300amp Aircraft Power Supply
MODEL 53300-24/28V
MODEL LI2800QC TWIN PAC

Mobile 28V DC Lithium Aircraft Starting Unit

PATENTED

This powerful Lithium aircraft starter unit is a full 28VDC battery Twin Pac and will provide superior starts on all electrically-started turbine engines. Versatile and highly portable, this Twin Pac can be used as a single unit or separated into two complete Lithium units that can easily be carried on board two different aircraft. The Lithium twin pack has redundant chargers with a total of 14 Amps output and a recharge time of approximately four hours.

Please Note

This unit is not designed for battery charging.

Specifications
  • Battery type Safe lithium-Ion
  • Voltage 28 VDC
  • Peak Current 3500 A
  • Capacity @10 Amp Rate 62 Ah
  • Total Weight 88lbs/40kg
  • Dimensions – Length x Width x Height 52″ x 23″ x 23.5″ 132 x 58 x 60 cm
  • Charger type Built in
  • Float type charger input (must be specified on order) 90-240 VAC 50/60 hertz
  • Charging time range 30 minutes to 4 hours
MODEL 53300-24/28V

Mobile 24V/28V 300amp Aircraft Power Supply

When plugged into 220Volt single-phase AC power, START PAC® Model 53300 is a 28.5 Volt continuous DC power supply. This unit will deliver full 300 Amp DC output, but it won’t provide enough current for engine starting. This unit has been specifically designed for maintenance and to power up various functions, such as inverters, avionics, GPS and air conditioning.

Please Note

This unit is not designed for battery charging.

Specifications
  • Maximum Continuous Current output 300 A
  • DC voltage output 28 VDC
  • AC voltage input 180 – 240 VAC
  • AC current input at maximum DC power output 40 A @220VAC
  • Phase Single
  • Forced air-cooling Yes
  • Over current protection Yes
  • Over voltage protection Yes
  • Over temperature protection Yes
  • Complete weight with aircraft cables 42lbs/19kg
  • Dimensions Length x Width x Height 20″ x 8″ x 13″ 51 x 20 x 33 cm

This unit is specifically designed for engine starting only.

  • Not to be used as an aircraft battery charger.
  • Do not charge in flight.

The all-new, patent pending START PAC® Model Li2800 QC Twin Pac utilizes the latest technology in Lithium batteries and lithium ground support equipment. Providing the same power as the lead-acid type, these batteries are superior being 42 percent lighter and 32 percent smaller. Additionally, lithium batteries have two other major advantages:

  1. Twice the battery life of lead-acid batteries
  2. No sulfation problems (can be left in a discharged state without causing damage)

Please handle this unit in a responsible manner. START PAC™ is not responsible for damage caused by misuse or neglect.

PLEASE NOTE: Lithium ion batteries can be damaged by deep discharges. Do not run the batteries down below 24 volts, although a spike during a start is okay. Voltages below 24 begin to damage the batteries. At 20 volts, the batteries will be damaged beyond repair.

This unit is NOT designed for engine starting or battery charging.

  • Over current protection
  • Over voltage protection
  • Over temperature protection
  • Forced air cooling.
  • Weights 40 lbs/ 18.1 kilos complete with power cable.
  • L 20″ x W 8″ x H 13″ / L 51cm x W 20cm x H 33cm
  • 8 foot power cable
  • CE Certified Components
