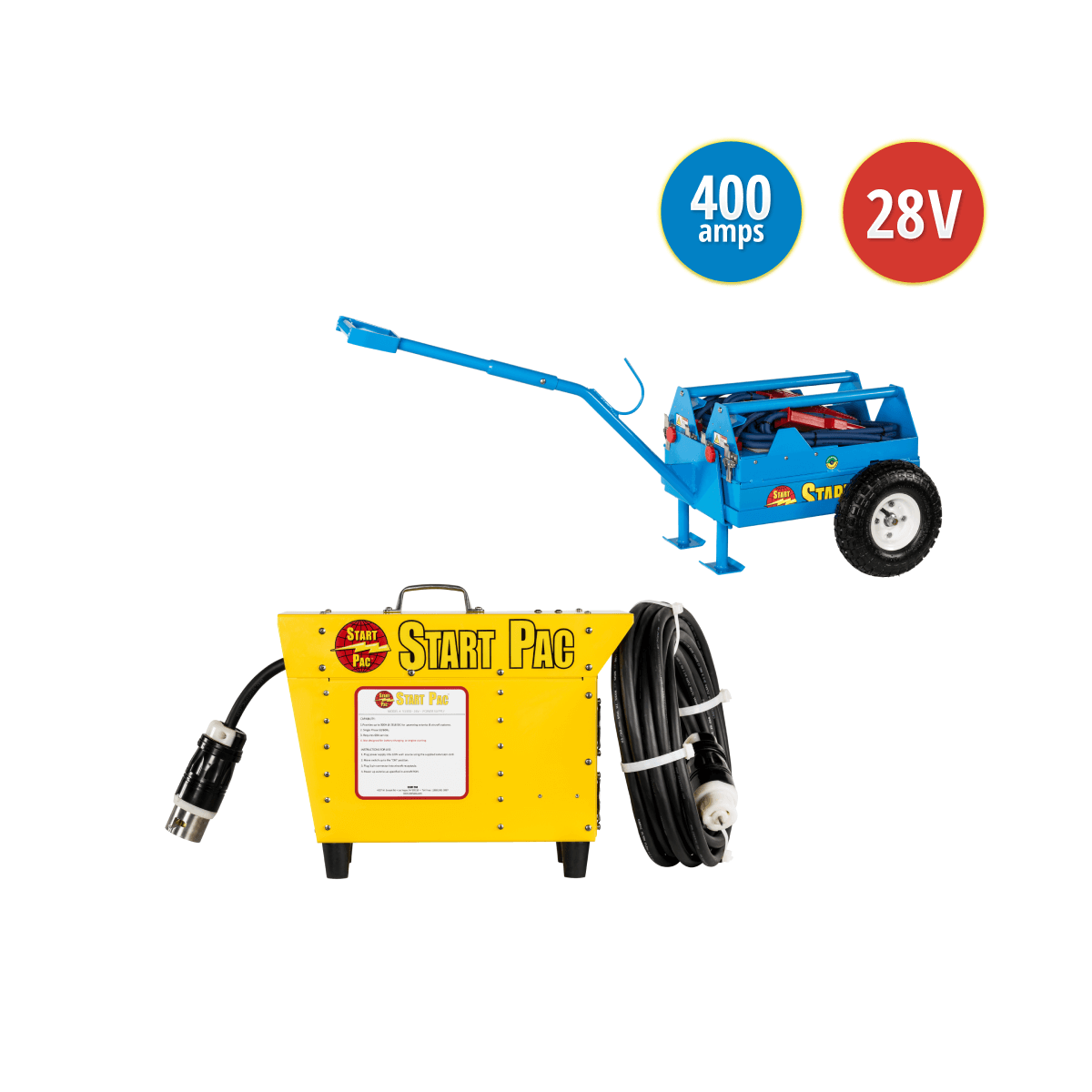

Model Li3328QC 400 Amp Set

Model Li2800QC Twin Pac

PATENTED

This powerful Lithium aircraft starter unit is a full 28VDC battery Twin Pac and will provide superior starts on all electrically-started turbine engines.  Versatile and highly portable, this Twin Pac can be used as a single unit or separated into two complete Lithium units that can easily be carried on board two different aircraft.  The Lithium twin pack has redundant chargers with a total of 14 amps output and a recharge time of approximately four hours.

Print Li2800QC Twin Pac Spec Sheet

Mobile Power Supply Model 53400

When plugged into 220Volt single-phase AC power, START PAC® Model 53400 is a 28.5 Volt continuous DC power supply.  This unit will deliver full 400 amp DC output, but it won’t provide enough current for engine starting. This unit therefore, has been specifically designed for maintenance and to power up various functions. such as inverters, avionics, GPS, and air conditioning.

Remember, this unit is NOT designed for engine starting or battery charging.

Print Model 53400-24/28V Spec Sheet
STARTING UNIT model referenceLi2800QC Twin Pac
Battery typeSafe lithium-Ion
Voltage28 VDC
Peak Current2400 A
Capacity @10 Amp Rate62 Ah
Total Weight113lbs / 51kg
Dimensions - Length x Width x Height52″ x 23″ x 23.5″ 132 x 58 x 60 cm
Charger typeBuilt in
Float type charger input (must be specified on order)90-240 VAC 50/60 hertz
Approximate charging time when fully depleated (Hours)4

This unit is specifically designed for engine starting only.

  • Not to be used as an aircraft battery charger.
  • Do not charge in flight.

The all-new, patent pending START PAC® Model Li2800 QC Twin Pac utilizes the latest technology in Lithium batteries and lithium ground support equipment.  Providing the same power as the lead-acid type, these batteries are superior being 42 percent lighter and 32 percent smaller.  Additionally, lithium batteries have two other major advantages:

  1. Twice the battery life of lead-acid batteries
  2. No sulfation problems (can be left in a discharged state without causing damage)

Load vs. Time (click to view larger)
Li2800QC Twin Pac Load vs Time

Please handle this unit in a responsible manner.  START PAC™ is not responsible for damage caused by misuse or neglect.

PLEASE NOTE: Lithium ion batteries can be damaged by deep discharges.  Do not run the batteries down below 24 volts, although a spike during a start is okay.  Voltages below 24 begin to damage the batteries.  At 20 volts, the batteries will be damaged beyond repair.

POWER SUPPLY model reference53400-24/28V
Maximum Continuous Current output400 A
DC voltage output28 VDC
AC voltage input180 - 240 VAC
AC current input at maximum DC power output53 A @220VAC
PhaseSingle
Forced air-coolingYes
Over current protectionYes
Over voltage protectionYes
Over temperature protectionYes
Complete weight with aircraft cables119lbs / 54kg
Dimensions Length x Width x Height50″ x 23″ x 23″ 127 x 58 x 58 cm
  • Over current protection
  • Over voltage protection
  • Over temperature protection
  • Forced air cooling.
  • L38″ x W21″ x H20″ / L96.5 x W53.3 x H50.8 cm, Handle height 48” / 122 cm
  • 8 foot power cable
  • CE Certified Components

All START PAC™ products come with a 1-year warranty on workmanship and materials. Batteries are cycle-dependent and therefore are not covered under this warranty.
