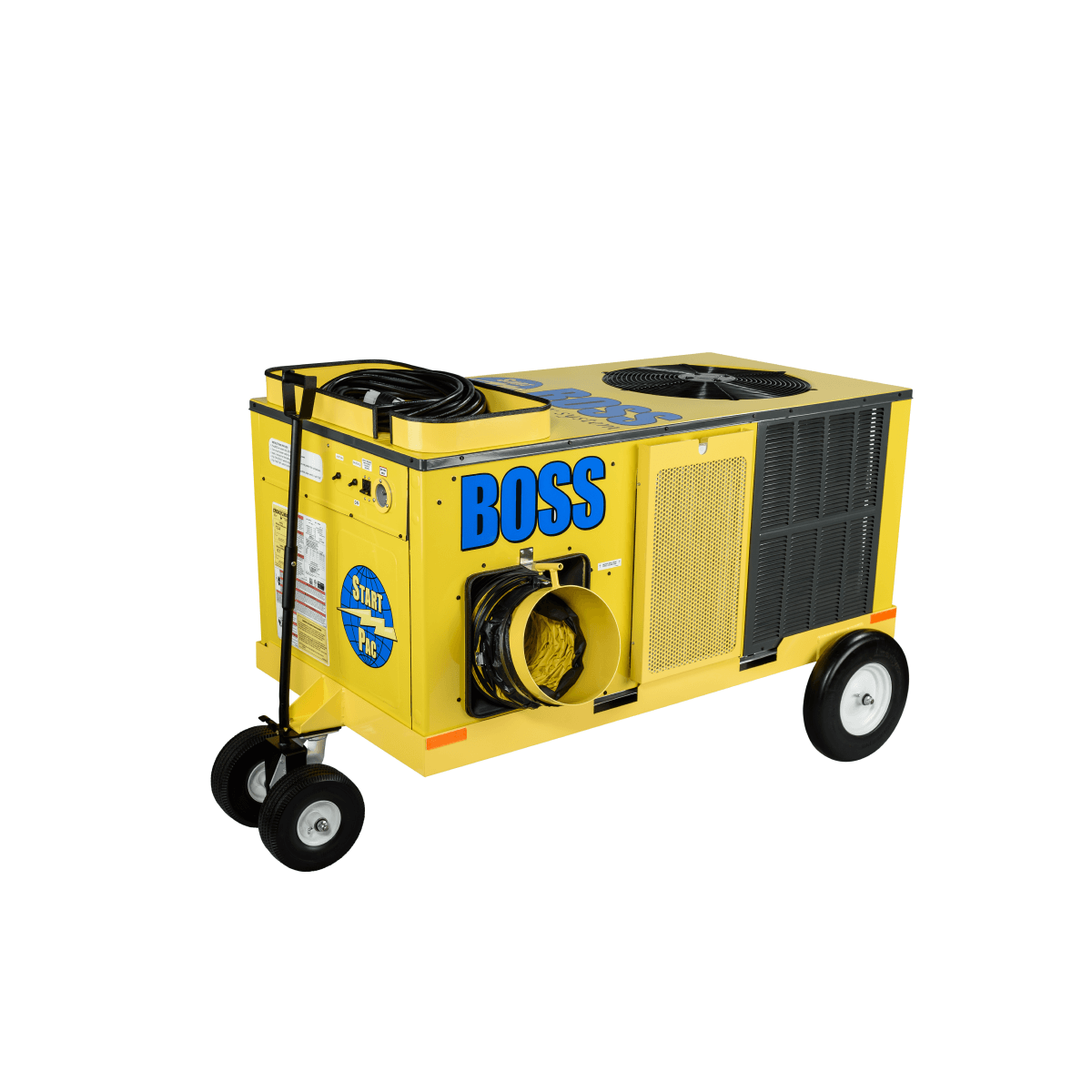

START PAC® BOSS Air System

The START PAC® BOSS air system is a mobile HVAC unit capable of delivering 23,400 BTU of refrigerated air for pre-cooling aircraft for maintenance operations, cooling 1500-2500 square feet, dependent upon ambient conditions. With an additional 22,800 BTU ‘Heating’ option, the START PAC® BOSS air system can create a comfortable climate year round.

Model: BOSS air system (220V single phase unit)

Description

STANDARD FEATURES:

  • Integral 20A Breaker / Switch
  • Only 20A Service Required
  • Sealed Refrigerant System for unmatched reliability and performance
  • 922-1231 CFM Air Movement System
  • 50’ Foot Input Power Cable (longer cable available upon request)
  • Maintenance Free Tires
Specifications
  • Weight463 Lbs. (210 kg)
  • Voltage Range 208-240 VRMS, 1O, 2 Wire Plus Safety Ground
  • Frequency 50 Hz + 10%
  • Compressor Rated Load 9.5 Amps
  • Safety Disconnect Circuit Breaker ON/OFF
  • Refrigerant Type/Qty R410A – 47.3 oz
  • Moisture Protection IP24
  • Air Filter Replaceable
  • Sound Level 76 dBa
  • Cooling BTU/Tons 21,000 / 1.75
  • Heating (Optional)11,000 BTU
  • Airflow 547 CFM
  • Moisture Removal 5.2 Pints per Hour
  • Operating ConditionsCooling and optional heating mode

START PAC® BOSS air system is a mobile HVAC unit that can deliver cool or heated air via its heat pump design. The BOSS air system runs at a very high efficiency due to its modern design.

  • Refrigerant: R410A
  • Amp Draw: 20.8 Amps
  • Capacity Cooling: 23,400 BTU
  • Voltage: 208/230 Volts
  • Capacity Heating: 22,800 BTU
  • Dimensions: L 76 in., W 42 in., H 46 in.
  • Airflow Range: 922 to 1231 CFM

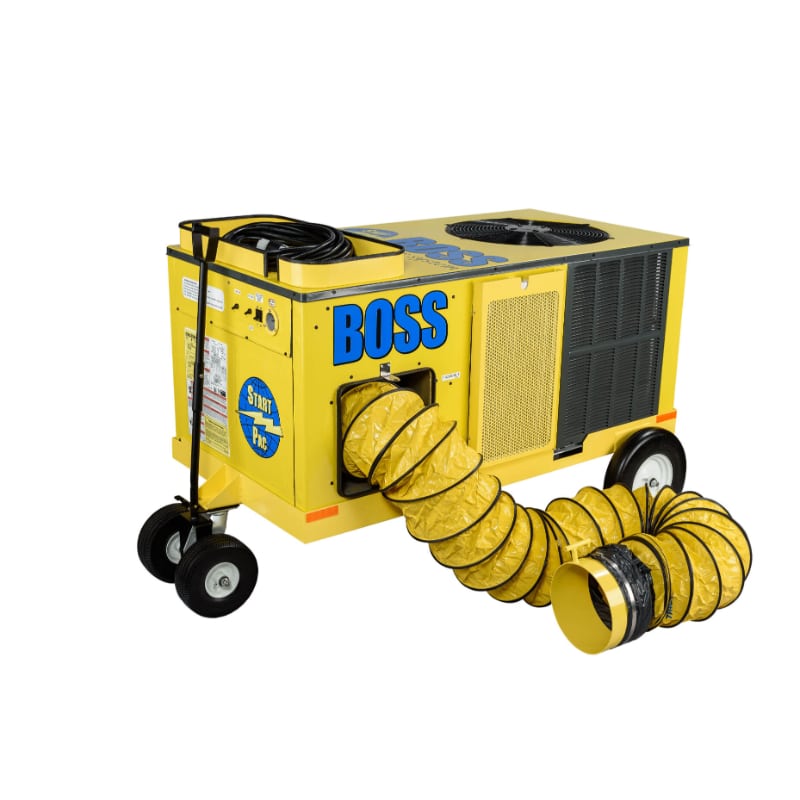

  • Air Delivery Hose: 12 in. in Diameter, 16 ft long standard patent pending retractable ducting
  • Max Sound Level: 76 DB
  • 50 Ft AC power cord standard
  • SEER2: 13.4
  • Operating Modes: Cool or Heat
  • SEER2: 10.6
  • Weight: 463 Lbs.
  • 4 Solid Wheels for optimal safety
