What Is Dynamic Braking On A Train?

Dynamic braking is one of the essential braking systems of train technology, which improves safety, efficiency, and performance in modern rail transportation. Unlike friction brakes in trains, it makes use of the electrical systems of the train to reduce its speed. This, in turn, enhances control and reduces the wear and tear of mechanical components.

How Dynamic Braking Works?

Well, it works through a set of key components and processes that work together to help slow down a train.

Electric Traction Motors

The foundation of dynamic braking lies in electric traction motors. These motors, which typically drive the train forward, are repurposed during braking. Instead of supplying power to the wheels, they function as generators. This process is a cornerstone of the train’s engine’s operation and marks the transition from motion to controlled deceleration.

Conversion of Kinetic Energy

In simple words, dynamic braking converts the kinetic energy of trains into electrical energy. This conversion occurs when the wheels slow down and force the motors to produce electricity. This is the fundamental principle on which the effectiveness of electrical braking is based and differentiates them from the traditional friction-based systems.

Energy Dissipation

Once the kinetic energy is converted into electrical energy, it must be dissipated to avoid system overload. This dissipation can take two primary forms: resistance or regeneration.

• Resistance-based systems: In these systems, heat is the byproduct, which is managed through dynamic brake fans and other cooling mechanisms.
• Regenerative systems: In these systems, the energy is fed back into the power grid for reuse, enhancing overall energy efficiency.

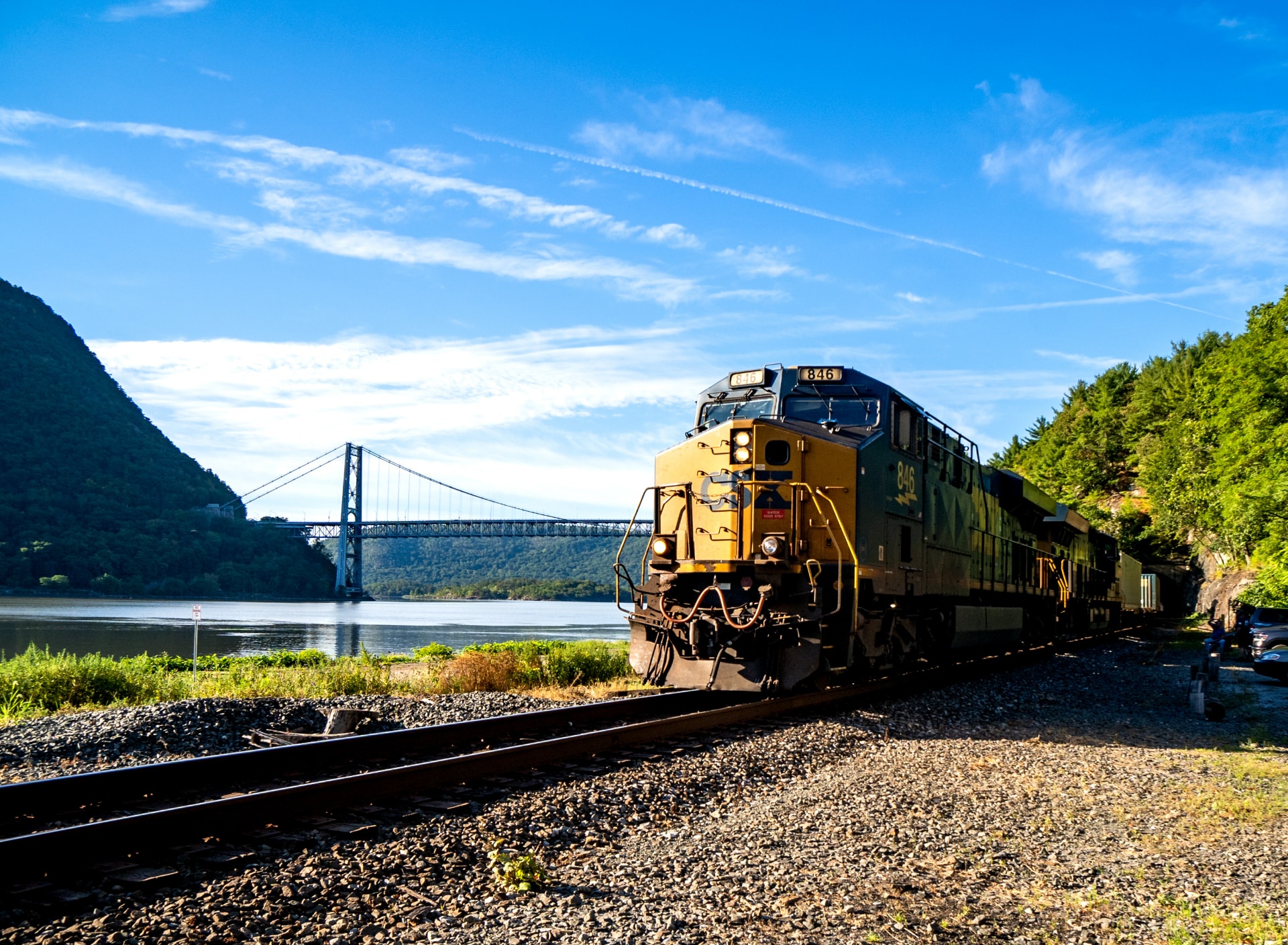

Types of Dynamic Braking Systems

Each of the below dynamic braking systems plays a crucial role in controlling train speed and ensuring safety while offering opportunities for energy efficiency.

Rheostatic Braking

The rheostatic braking method is a dynamic brake in which the generated electrical energy is turned into heat using dynamic braking resistance. This heat is then controlled by advanced cooling systems, thus maintaining operational safety and efficiency. This method is greatly used for its simplicity and reliability in diesel-electric locomotives.

Regenerative Braking

The next generation of train dynamic brake technology is regenerative braking. Instead of wasting energy as heat, this system feeds the generated electricity back into the power supply network. Urban transit systems, such as subways, are common users of this method to maximize energy recovery and sustainability.

Benefits of Using Dynamic Braking

There are numerous reasons why dynamic braking should be considered; here are the four most crucial.

Reduced Wear and Tear

A major benefit of dynamic braking is that it reduces the wear and tear on mechanical brake components. The use of electrical systems to slow down the train means that parts based on friction experience less tension, thereby extending their lifespan and reducing maintenance costs.

Control and Safety Improvement

Dynamic brake support increases the capability of the operator to manage the train, especially during steep gradients or emergency stops. Overall, this accuracy increases safety for the passengers and cargo.

Energy Efficiency

Regenerative systems convert resistance from dynamic braking into usable power, decreasing energy usage. This energy efficiency is especially important for frequent operations, such as city transit and light rail service.

Heat Reduction

Advanced cooling techniques minimize overheating risks. Dynamic brakes manage the heat produced by braking to protect against overheating and preserve consistent performance under adverse circumstances.

Limitations and Considerations of Dynamic Braking

While dynamic breaking significantly impacts energy efficiency and operational safety, it can be useless at lower speeds where insufficient kinetic energy can generate the necessary electric power. It’s crucial to consider some limitations of dynamic breaking:

Low-Speed Performance is Limited

It works sufficiently well at higher speeds but is less efficient when the train is slowed down. Traditional friction brakes are often necessary to stop the train completely at low speeds.

Heat Management

In the case of rheostatic systems, the heat generated needs to be dissipated otherwise it will damage the system. Key components (e.g., dynamic brake fans) are critical to operating optimally.

Not a Standalone System

Dynamic braking cannot be used alone. It has to be operated in combination with the old braking system to ensure proper deceleration and safety.

Dynamic Braking vs. Traditional Braking

The difference between dynamic and conventional braking systems is in the fundamental operating principles and energy management methods. Conventional friction brakes mechanically employ a force by brake shoes or pads that press upon the wheels or discs; in other words, kinetic energy directly transforms into heat.

In the case of dynamic braking, it first converts the train’s kinetic energy into electrical energy, a much more sophisticated method to regulate the speed. Here are some differences between these two:

Energy Conversion Method

• Traditional Braking: Here the mechanical friction between the brake pads and the wheels converts kinetic energy directly into heat.
• Dynamic Braking: Kinetic energy is transformed into electrical energy, which is either dissipated as heat in a resistor or recovered for reuse.

Wear and Maintenance

• Traditional Braking: Encountering excessive mechanical friction leads to the need for regular brake pad replacements and upkeep.
• Dynamic braking: It has a low direct friction page, which also leads to less maintenance and an increase in the life of components.

Real-World Applications of Dynamic Braking in Trains

Freight Trains: On freight trains, dynamic braking becomes a way of handling heavy loads, especially when traversing steep grades. Operators are also able to maintain constant speed as well as increase safety during long descents by decreasing dependence on friction brakes.

Passenger Trains: Dynamic brake support, in particular, has proven particularly valuable on high-speed passenger trains because it smoothes the deceleration process and helps to engage the brakes. This functionality is particularly important for ensuring passenger comfort and satisfying tight scheduling constraints.

Subway and Light Rail: Urban transit systems often use regenerative dynamic braking to improve energy efficiency. By capturing and reusing braking energy, these systems contribute to sustainability while reducing operational costs. Battery-powered subways, supported by railway batteries, play a vital role in achieving this energy efficiency.

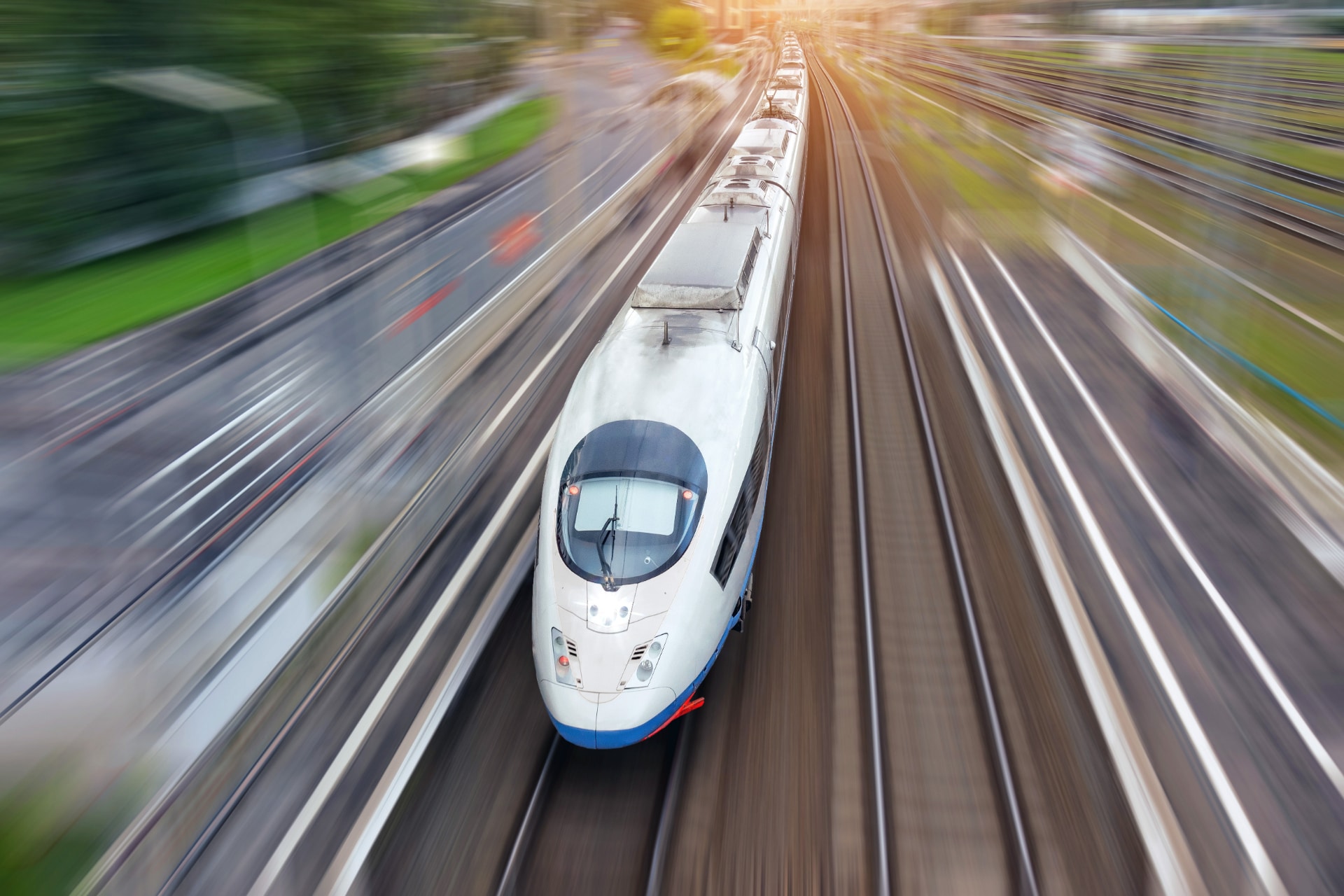

Future of Dynamic Braking Technology

What is the world going to look like if dynamic braking technology develops and becomes a preferable choice for many? Here are some predictions.

Advanced Regenerative Systems

The future of dynamic brakes lies in advanced regenerative systems that maximize energy recovery. Innovations in energy storage and distribution will further enhance their efficiency and effectiveness.

Automation and Control

Automation is revolutionizing the rail industry, and train dynamic brake systems are no exception. Automated controls promise to optimize braking performance, reduce human error, and improve overall safety.

Hybrid Systems

Hybrid braking systems, which combine the benefits of locomotive dynamic braking and traditional methods, are set to play a pivotal role in future rail technologies. These systems offer greater flexibility and reliability under diverse operating conditions.

Dynamic braking has been transforming the rail industry in efficiency, safety, and sustainability. Starting with the role of energy conversion and its use in many types of train systems, it remains an evolving factor that changes the future of transportation. There are limitations still existing; however, new innovation developments promise to open it all, making way for more intelligent, greener rail networks worldwide.
