Model 3324QC-105 amp

PATENTED

This patented combination ground power unit is designed for ground use in order to perform both engine starting and maintenance functions.  This model can be used on the ramp to conduct engine starting and will provide 28.5V of continuous clean, no duty cycle power when plugged into 220V AC wall power.  In order to recharge the unit, simply plug it into an AC wall power outlet and ensure you leave it plugged in when it’s not in use.

Contact us about this unit
Print Specification Sheet
Combination GPU model reference3324QC/105A
Battery typeLead acid
Voltage24 VDC
Peak Current2800 A
Capacity @10 Amp Rate56 Ah
Charger typeBuilt in
Charging time range1 to 7 hours
Maximum Continuous Current output 105 A
DC voltage output28.5 VDC
AC voltage input220 VAC
AC current input at maximum DC power output14 A @220VAC
PhaseSingle
Forced air-coolingYes
Over current protectionYes
Over voltage protectionYes
Over temperature protectionYes
Complete Weight173lbs / 78kg

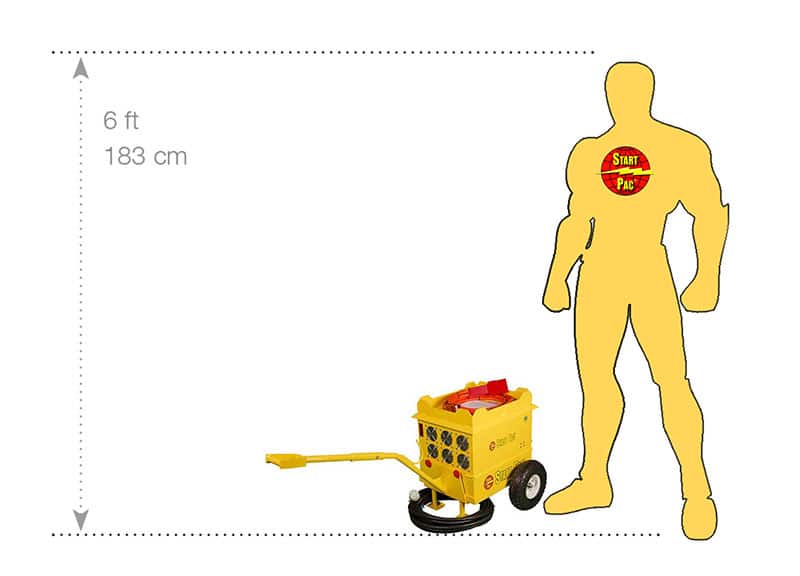

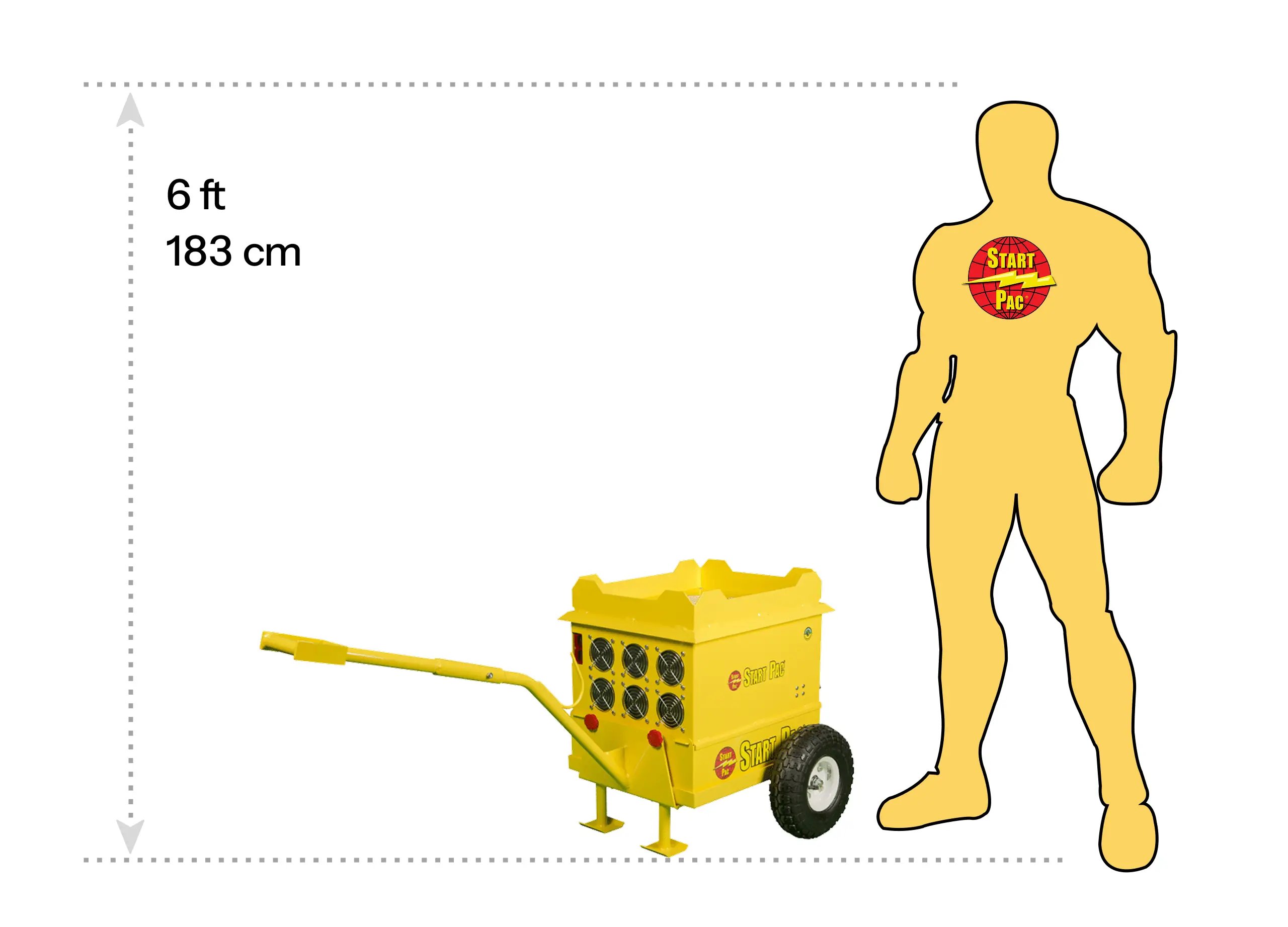

Dimensions - Length x Width x Height50″ x 23″ x 23″ 127 x 58 x 58 cm

The Model 3324QC-105 amp GPU is a combination power supply and battery bank.

The high tech proprietary chargers will maintain 100% battery charge without over charging.  Built with the only cost effective, patented Quick Change design in the world, the batteries in this unit can be changed easily in a matter of seconds without tools, training or downtime.

The environmentally responsible, low VOC powder coating protects the case from wear, tear and poor weather conditions.  However, there is also an option to purchase an all-weather cover accessory for this unit to protect it further from inclement weather and maximise performance and product life.

Batteries

  • Sealed cells – non-hazardous
  • Valve regulated, high amperage output lead acid
  • Patented Quick Change design for 10 second battery change

Power supply/charger

  • No duty cycle, clean continuous power
  • Over-voltage & over-current protection
  • Reverse polarity protection

NOTE When using more than 105 continuous amps, the batteries will make up the difference until they become depleted.  On most aircraft, a low voltage relay will drop the GPU offline when the voltage drops below a preset level.  Unfortunately, the GPU’s voltage will then rise back up, causing the aircraft to make use of it once more.  This, in turn, will cause it to re-drop below its preset level, creating a vicious circle.  It is this oscillation that can cause damage to aircraft components.

The following dimensions apply to each of the 3300s:
L 38″ x W 21″ x H 20″/L 96.52cm x W 53.34cm x H 50.8cm; Handle Height 48″/121.92cm

Please handle this unit in a responsible manner.  START PAC™ is not responsible for damages caused by misuse or neglect.

The GPU is rated at 2800 peak starting amps and a continuous 105 amps DC output when connected to a 220 Volt AC source.  It has a large battery capacity (52Ah) that enables extended usage time even when no AC power source is available.

The 3324QC 105 amp weighs 200 lbs. and can be pulled by hand or tug; locking the handle in an upright position sets the GPU brake.

Always recharge the GPU until the green charger light appears.  Once charged, it’s not necessary to leave the unit turned on.  If a heater is installed, leave the unit plugged in.

NOTE PLEASE USE #12 or Larger AC EXTENSION CORD

There are approximately thirty 110 volt and thirty 220 volt NEMA plugs in use.  Additionally, customers may have differing receptacles at their hangars and MRO facilities and may require specific AC cord lengths in order to meet their requirements.  Consequently, we do not automatically provide AC power cords.  However, for a small fee, if you provide us with the NEMA plug number and specify the AC power cord length you require, we will build a cord to be shipped with your unit.

All START PAC™ products come with a 1-year warranty on workmanship and materials.*

Please handle this unit in a responsible manner.  START PAC™ is not responsible for damages caused by misuse or neglect.
