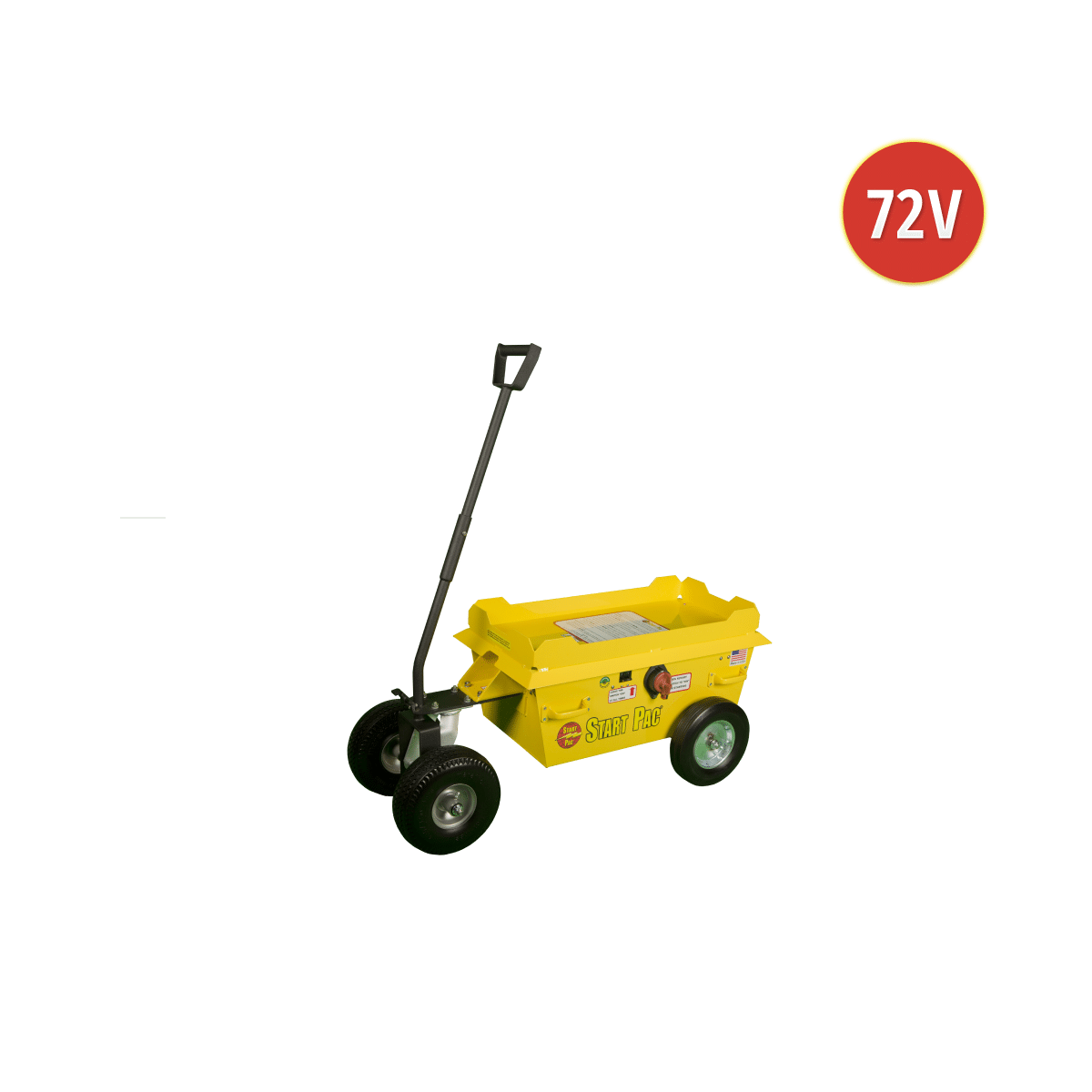

Model 3324RR Locomotive

PATENTED PENDING

Designed to start the locomotive engine directly when the locomotive battery is not sufficiently charged or capable of starting the engine, this unit will reduce operating costs by improving the safety and efficiency in the field. The unit can be manufactured with wheels or without them in order to be truck mounted.

The environmentally responsible, low VOC powder coating protects the case from wear, tear and poor weather conditions. Additionally, an all-weather cover accessory is also available as an option for this unit in order to protect it further from inclement weather to gain the maximum performance and product life.

Contact us about this unit
Print Specification Sheet
Parts & Accessories

PLEASE NOTE - THIS UNIT IS NOT DESIGNED FOR BATTERY CHARGING

STARTING UNIT model reference3324RR
Battery typeLead acid
Voltage72 VDC
Peak Current2400 A
Cold start @ 0°F /−18°C330 CCA
Capacity @10 Amp Rate28 Ah
Total Weight236lbs / 107kg

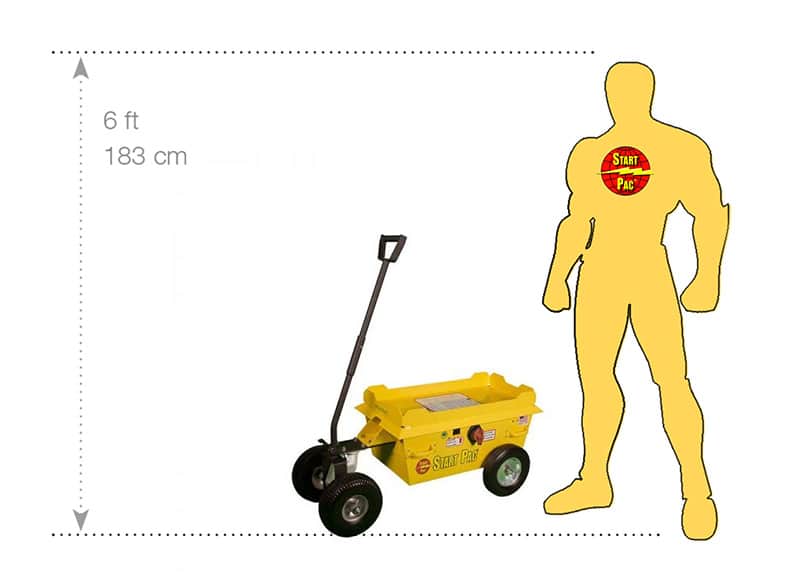

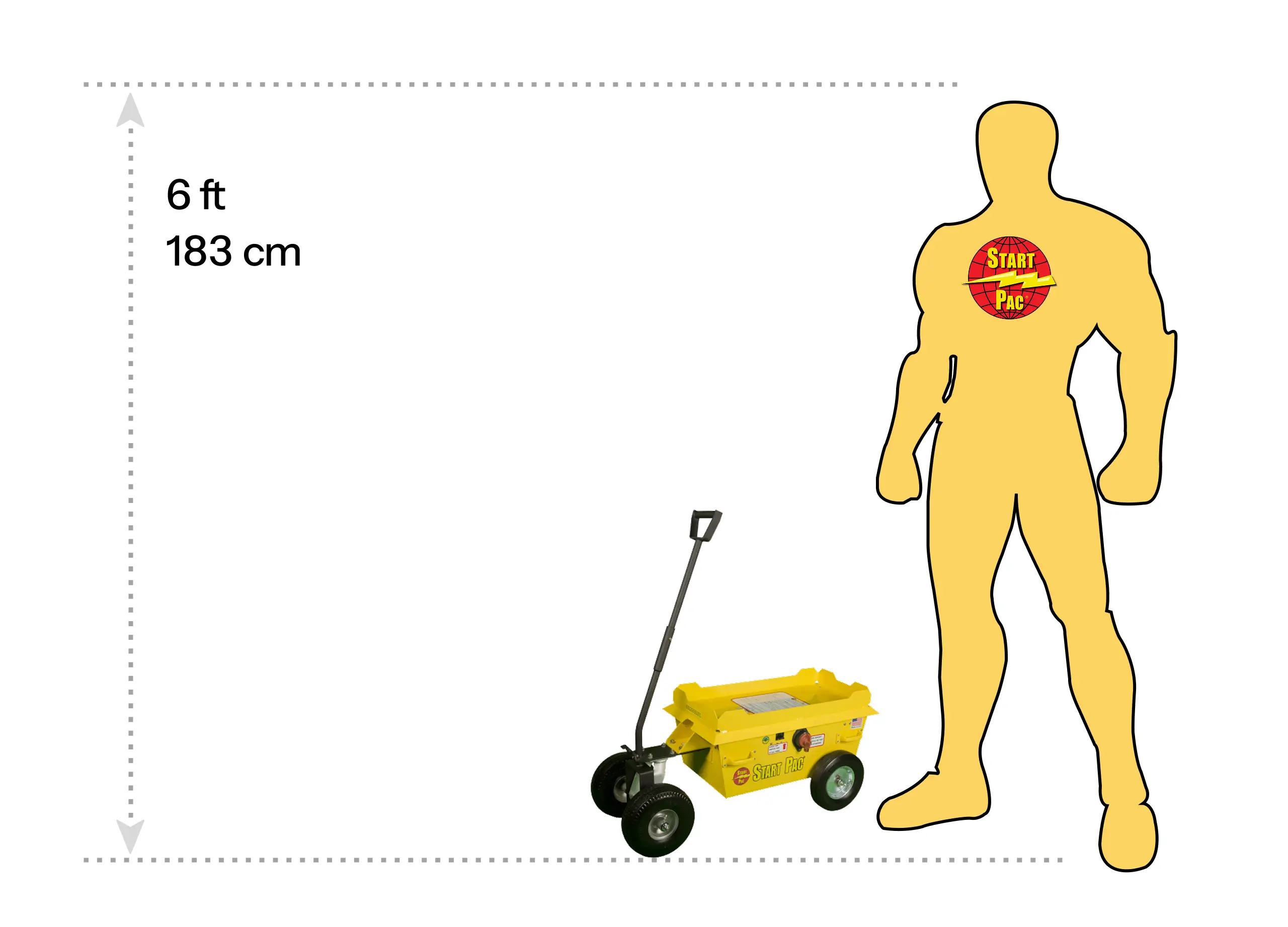

Dimensions - Length x Width x Height38″ x 21″ x 20″96.5cm x 53.3cm x 50.8cm
Charger typeBuilt in
Float type charger input*Must be specified on order111 VAC 50/60 hertz220 VAC 50/60 hertz
Charging time range30 minutes to 3 hours

The 3324RR locomotive engine starting maintenance unit can be manufactured with wheels or without wheels to be truck mounted; it is a locomotive jump starter for engines up to 3500 horse power, not for battery charging and it can be pulled by hand or tug. The handle of the tug is 48” high and locking it in an upright position sets its brake automatically.  This ground power unit has heavy duty locomotive alligator clips and solid rubber wheels for rough terrain; additionally its environmentally responsible, low VOC powder coating protects it further from wear, tear and poor weather conditions.

Safety Features

  • Emergency Disconnect: this is a rotary type switch on the outside of the case that disconnects the battery bank from the output cables to the locomotive
  • Reverse Polarity Detector: this is a safety feature installed into the cables near the alligator clamps that connect to the locomotive so that the operator will see the reverse polarity detector light illuminate if the clamps are connected in the reverse position

Limitations

  • This unit is designed to start diesel engines up to 3500 horse power, but it will not overcome a dead locomotive battery at the same time. In this instance, disconnect the locomotive battery.

This GPU is rated at 330 CCA.  Multi-unit chargers offer redundant field reliability.  Units can be serviced in the field if needed when conducting locomotive maintenance.

Power cables are normally 25′ but can be up to 35′. 800 amp alligator clamps can be installed if required.

PLEASE NOTE: When trying to start a locomotive with a dead battery, the battery must be disconnected (knife switch).

GPU Starting Unit Product Spec Sheet Download Button

NOTE: Always recharge the GPU until the green charger lights appear. Once charged, it is not necessary to leave the unit turned on.  If a heater is installed, leave the unit plugged in.

Always recharge soon after being use in order to prevent sulfation of the batteries.

CAUTION  When using the emergency disconnect, whether activating or deactivating there should be no load on the START PAC® batteries from the locomotive.  If there is, severe arcing will result causing damage to the relays.  Except in an emergency therefore, only use the disconnect under normal operations while the START PAC® is unloaded.

NOTE- PLEASE USE #12 or Larger AC EXTENSION CORD

All START PAC™ products come with a 1-year warranty on workmanship and materials.*

Please handle this unit in a responsible manner.  START PAC™ is not responsible for damages caused by misuse or neglect.
