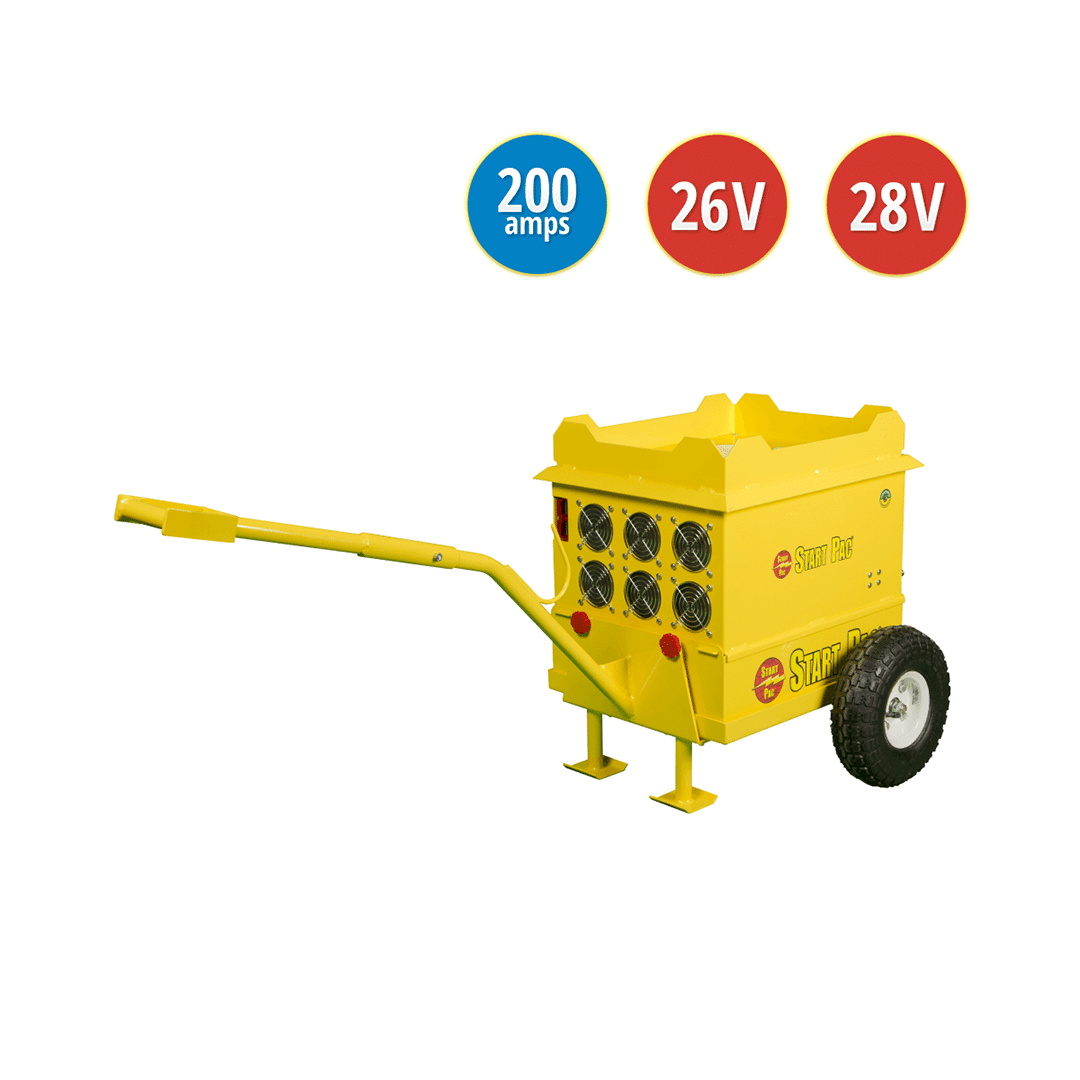

Model 3326QC-200 amp

PATENTED

The 3326QC-200 is a full 26 Volt starting unit that will give faster, cooler starts on voltage sensitive turbine engines.  When plugged into 220VAC, the 200 Amp power supply is large enough to power various systems such as inverters, avionics and GPS.  Always recharge immediately after use; the green charger light will indicate maximum battery life.

Contact us about this unit
Print Specification Sheet
Combination GPU model reference3326QC/200A
Battery typeLead acid
Voltage26 VDC
Peak Current2800 A
Capacity @10 Amp Rate56 Ah
Charger typeBuilt in
Charging time range1 to 8 hours
Maximum Continuous Current output200 A
DC voltage output28 VDC
AC voltage input220 VAC
AC current input at maximum DC power output27 A @220VAC
PhaseSingle
Forced air-coolingYes
Over current protectionYes
Over voltage protectionYes
Over temperature protectionYes
Complete Weight190lbs / 86kg

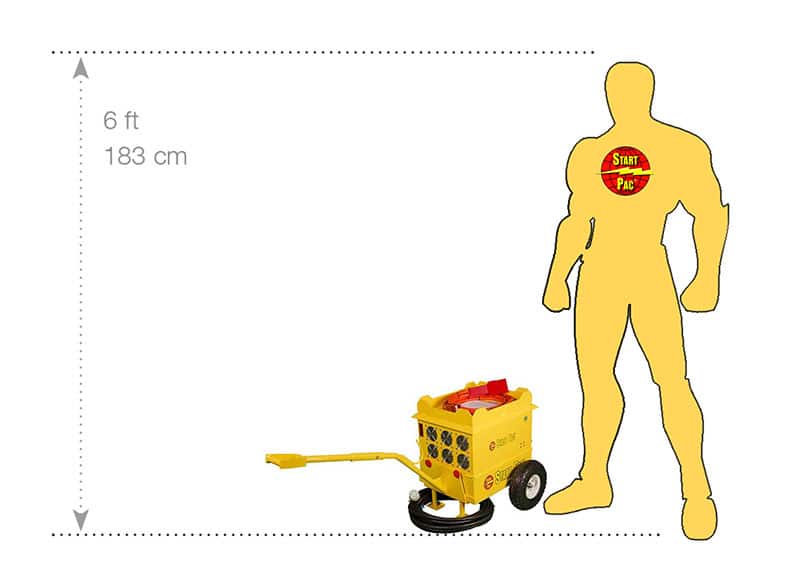

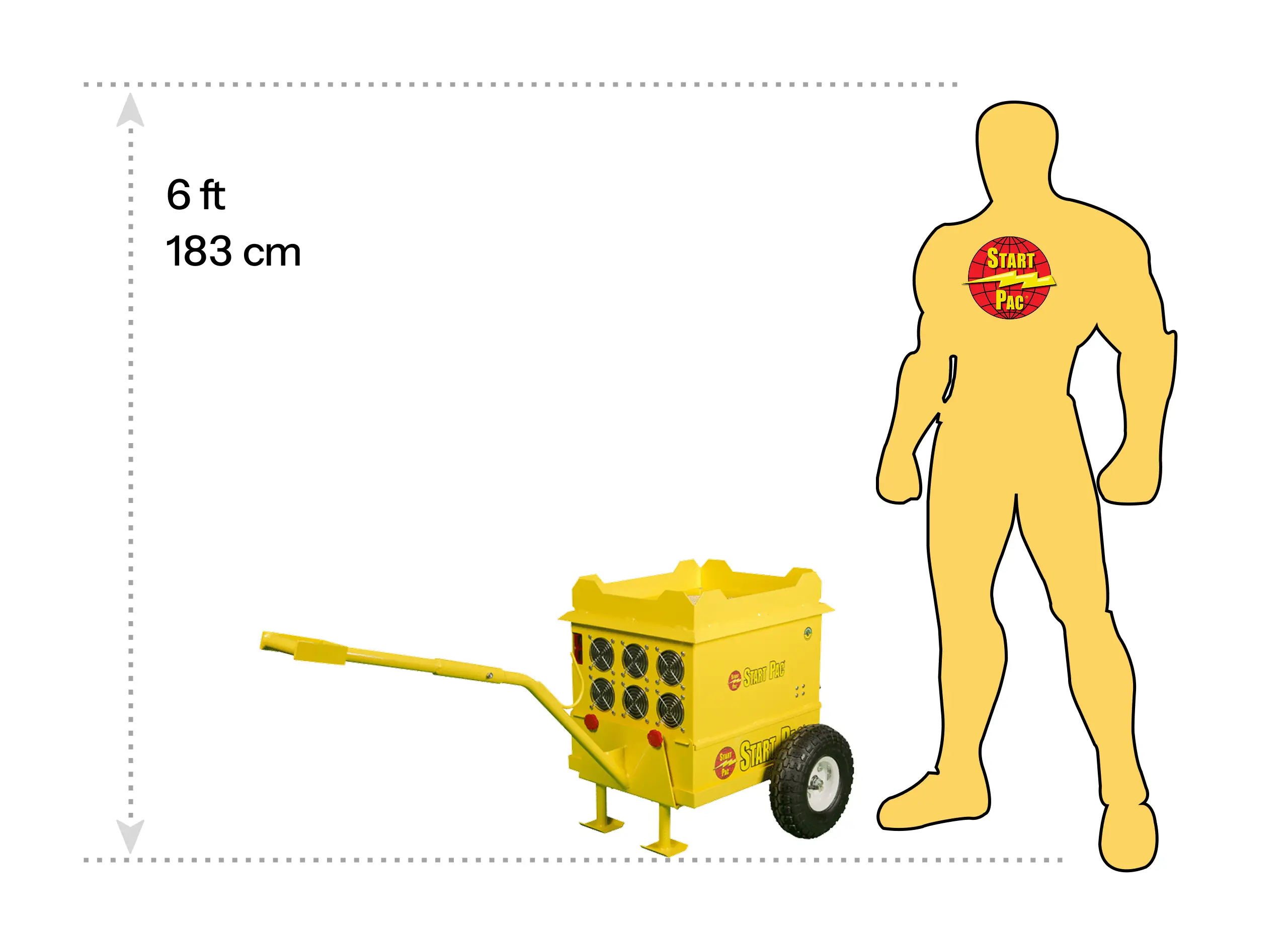

Dimensions - Length x Width x Height50″ x 23″ x 23″ 127 x 58 x 58 cm

The Model 3326QC-200amp GPU is a combination power supply (for avionics) and battery bank (for engine starting).

The 3326QC-200 is a full 26 Volt starting unit that will give faster, cooler starts on voltage sensitive turbine engines.  When plugged into 220VAC, the 200 Amp power supply is large enough to power various systems such as inverters, avionics and GPS.  Always recharge immediately after use by simply plugging it into an AC wall power outlet (leaving it plugged in when not in use); the green charger light will indicate maximum battery life.  Once charged, leave the unit plugged in. Avoid fully discharging the batteries as damage to the cells may result.

Built with the only cost effective, patented Quick Change design in the world, the batteries in this unit can be easily changed in a matter of seconds without tools, training or downtime.

The environmentally responsible, low VOC powder coating protects the case from wear, tear and poor weather conditions.  However, there is also an option to purchase an all-weather cover accessory for this unit to protect it further from inclement weather maximising performance and product life.

Batteries

  • Sealed cells – non-hazardous
  • Valve regulated high amperage output lead acid
  • Patented Quick Change design for 10 second battery changes

Power supply/charger

  • No duty cycle, clean continuous power
  • Over-voltage & over-current protection
  • Reverse polarity protection

NOTE  When using more than 200 continuous amps, the batteries will make up the difference until they become depleted.  On most aircraft, a low voltage relay will drop the GPU offline when the voltage falls below a preset level.  Unfortunately, the GPU’s voltage will then rise back up, causing the aircraft to make use of it once more.  This, in turn, will cause it to re-drop below its preset level, creating a vicious circle.  It is this oscillation that can cause damage to aircraft components.

All START PAC™ products come with a 1-year warranty on workmanship and materials.*

Please handle this unit in a responsible manner.  START PAC™ is not responsible for damages caused by misuse or neglect.
