Portable 24V/28V DC
Power Supply – Model
53105M– 24/28V

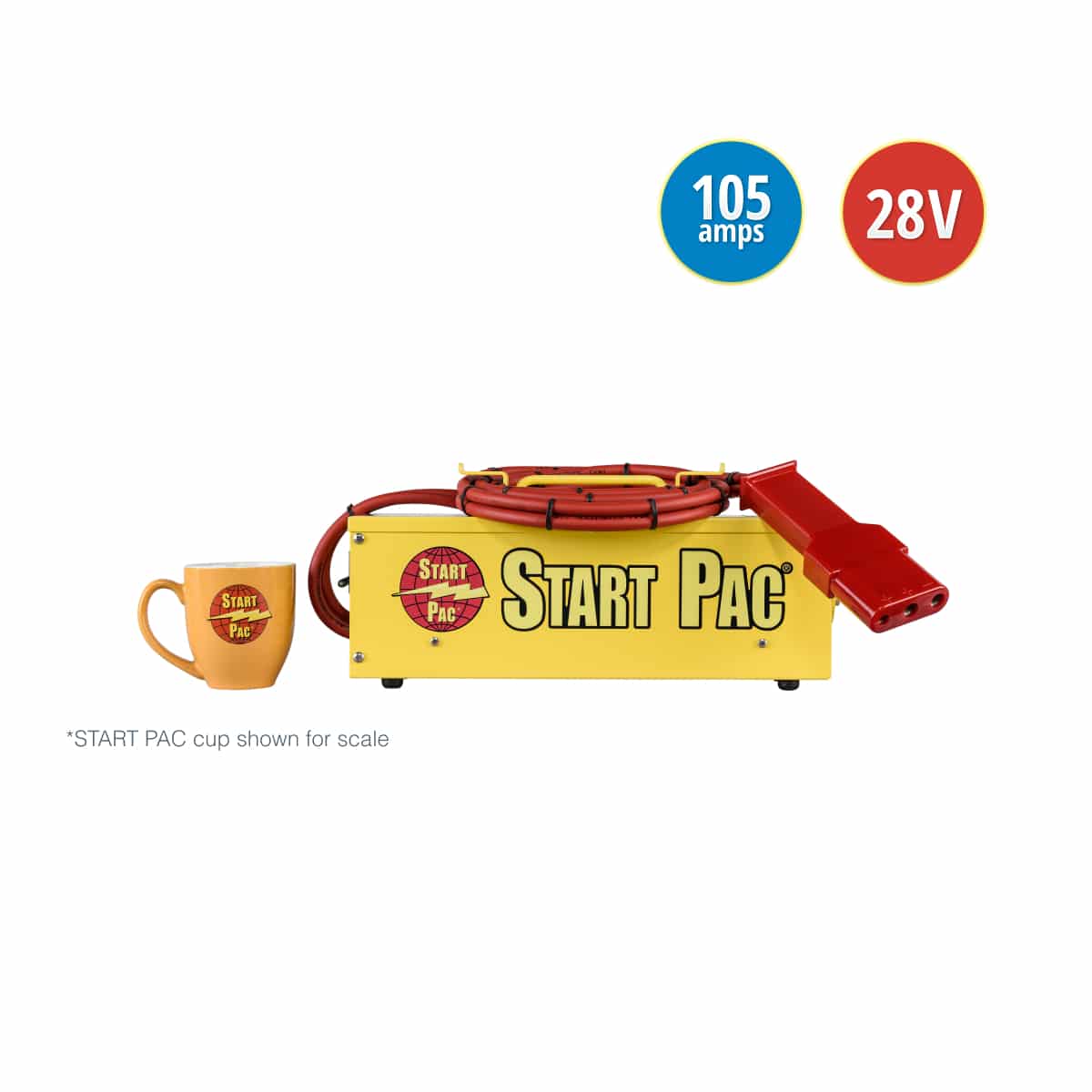

This START PAC® model has been designed to power up 28 Volt aircraft systems and will continuously deliver up to full 105 amp DC output. The voltage output is set to 28.5 Volts to simulate the same voltage as when the aircraft is running under power. This unit requires 220 Volt single phase power to operate.

Model: 53105M – 24V/28V

Please NoteThis unit is not designed for battery charging.

Description

This START PAC® unit has been specifically designed for maintenance and to power up various functions such as inverters, avionics, GPS programming, etc. Using this START PAC® power supply means that the operator can bypass the aircraft battery thus preserving it from unnecessary wear. The on-board aircraft battery can be conserved for starting only. The environmentally responsible, low VOC powder coating protects the unit from wear, tear and poor weather conditions.

Specifications
  • Maximum Continuous Current output 105 A
  • DC voltage output 28.5 VDC
  • AC voltage input 180 – 240 VAC
  • AC current input at maximum DC power output 14 A @220VAC
  • Phase Single
  • Forced air-cooling Yes
  • Over current protection Yes
  • Over voltage protection Yes
  • Over temperature protection Yes
  • Complete weight with aircraft cables 12lbs / 5.4kg
  • Dimensions Length x Width x Height 16″ x 4.375″ x 5.25″
    40 x 11.5 x 13.3 cm

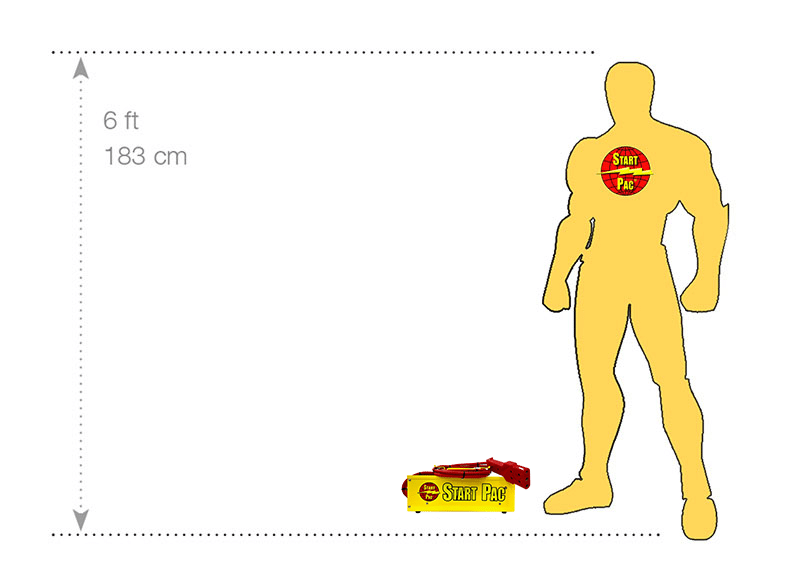

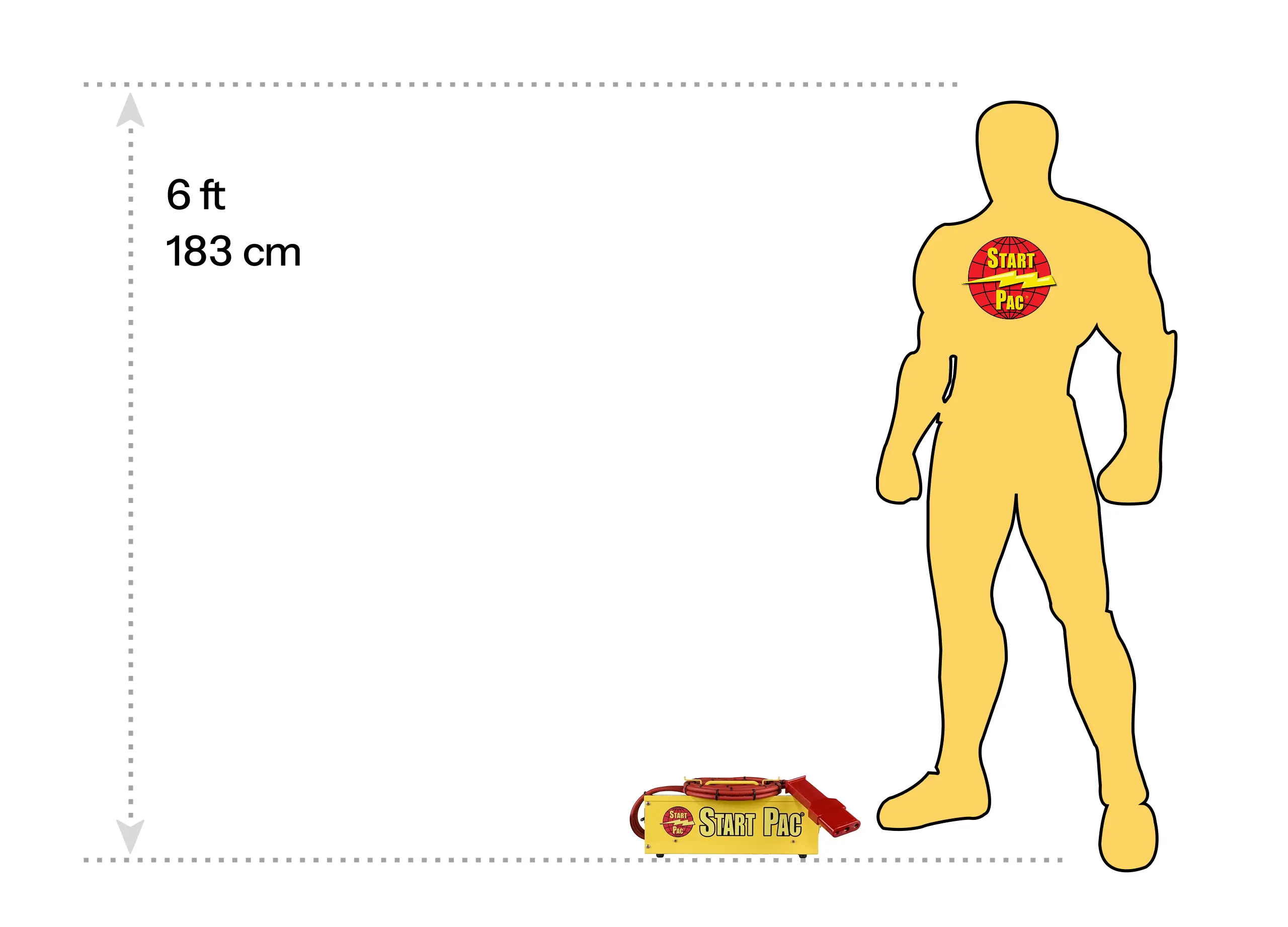

Please note that on board air conditioning systems are high draw systems that usually require a minimum of 175A.Model 53105M-24/28V Size
