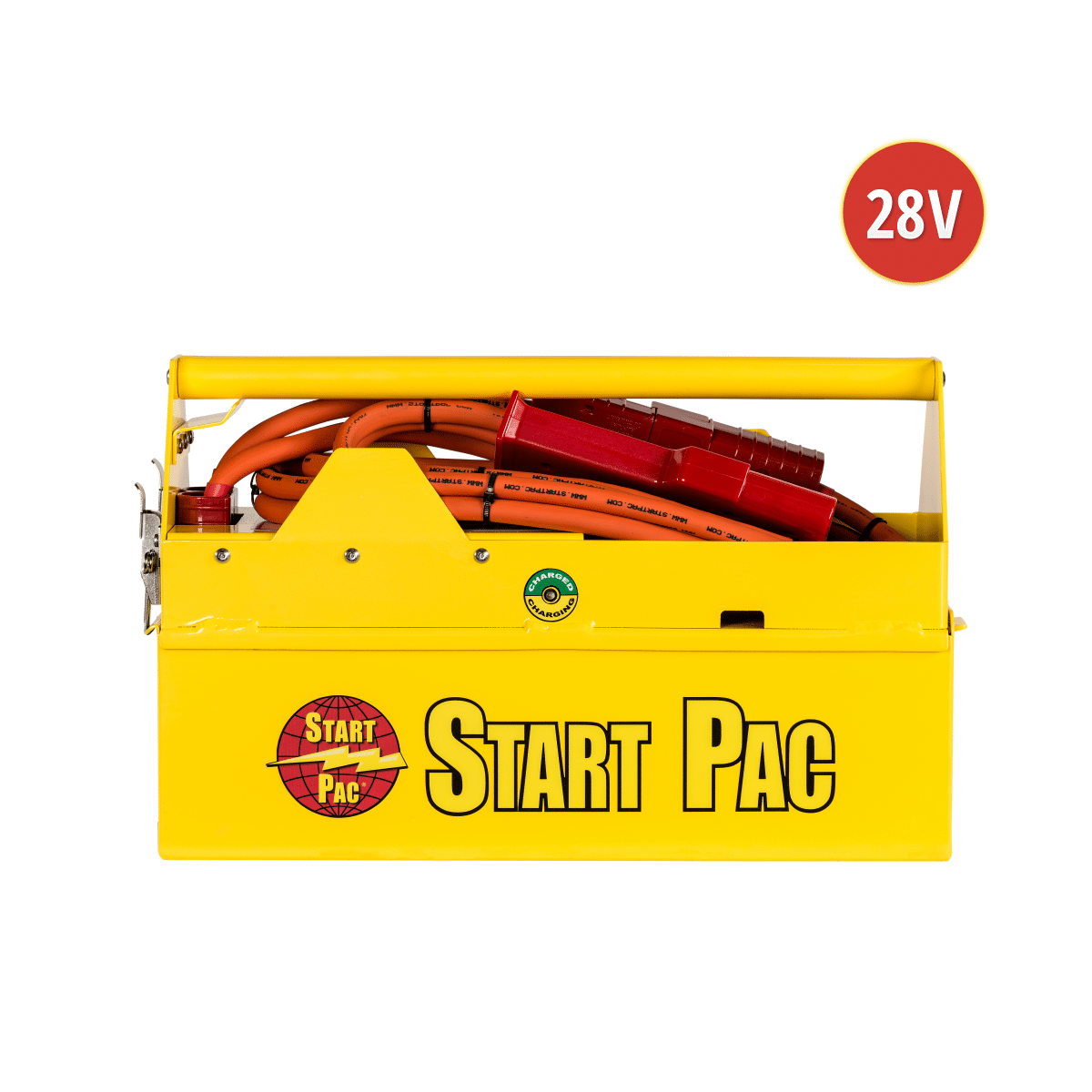

START PAC Model 6028QC

PATENTED / NSN Number 6130-01-564-9082

The new START PAC® 6028QC has a separate removable battery that can be changed in 15 seconds. This feature allows the user to change batteries in the field without needing to send the START PAC® back to the shop or manufacturer.

Contact us about this unit
Print Specification Sheet
STARTING UNIT model reference6028QC
Battery typeLead acid
Voltage28 VDC
Peak Current2300 A
Capacity @10 Amp Rate28 Ah
Total Weight77lbs / 35kg
Dimensions - Length x Width x Height19.2″ x 7.5″ x 11.5″ 48.8 x 19 x 29.2 cm
Charger typeBuilt in
Float type charger input (must be specified on order)90-240 VAC 50/60 hertz
Approximate charging time when fully depleated (Hours)4

This 28.5-volt unit will start the largest electrically started turbine or piston engines including the Garrett TPE331. This START PAC will provide a faster and cooler start than most ship’s aircraft batteries, thus increasing turbine life. Various maintenance duties can be performed with this pack that requires more than 24 volts for checkout. This unit has dual redundant chargers with a total of 7 amps output with a recharge time of approximately 4 hours.

Certain aircraft will allow the ship’s generator to back charge a GPU. In this manner, START PAC® can be recharged in the field without an AC source indefinitely.

This unit is designed for engine starting only.

  • Available with separate trolley
  • Not to be used as an aircraft battery charger.

All In One air portable/carry-on START PAC® with built in chargers, power plug and cables.

Units are 28.5 VDC output, with universal chargers that will accept 90-240VAC 50/60 hertz.

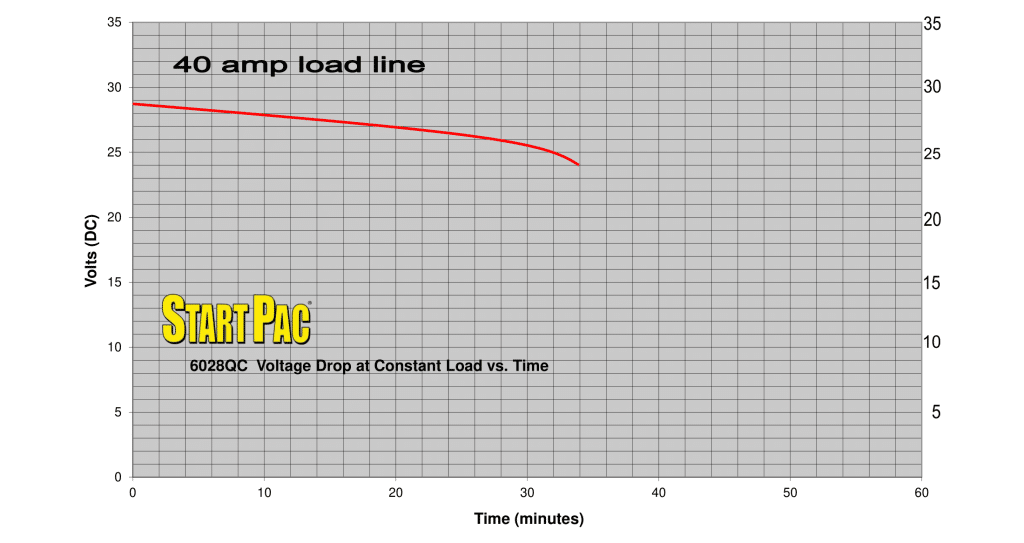

Amp vs. Time (click to view larger)
6028QC Load vs Time Curve

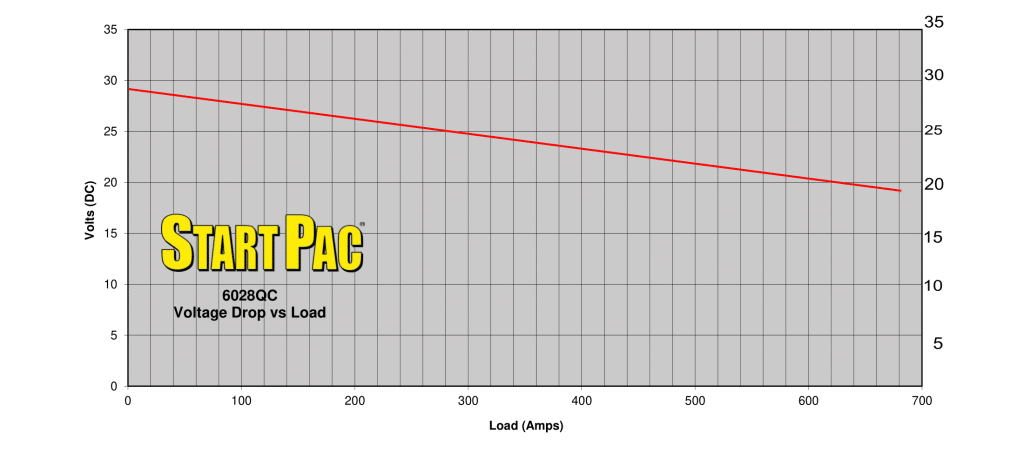

Voltage Drop vs. Load (click to view larger)
6028QC Load vs Time Curve

All START PAC™ products come with a 1-year warranty on workmanship and materials.*
