Product Set

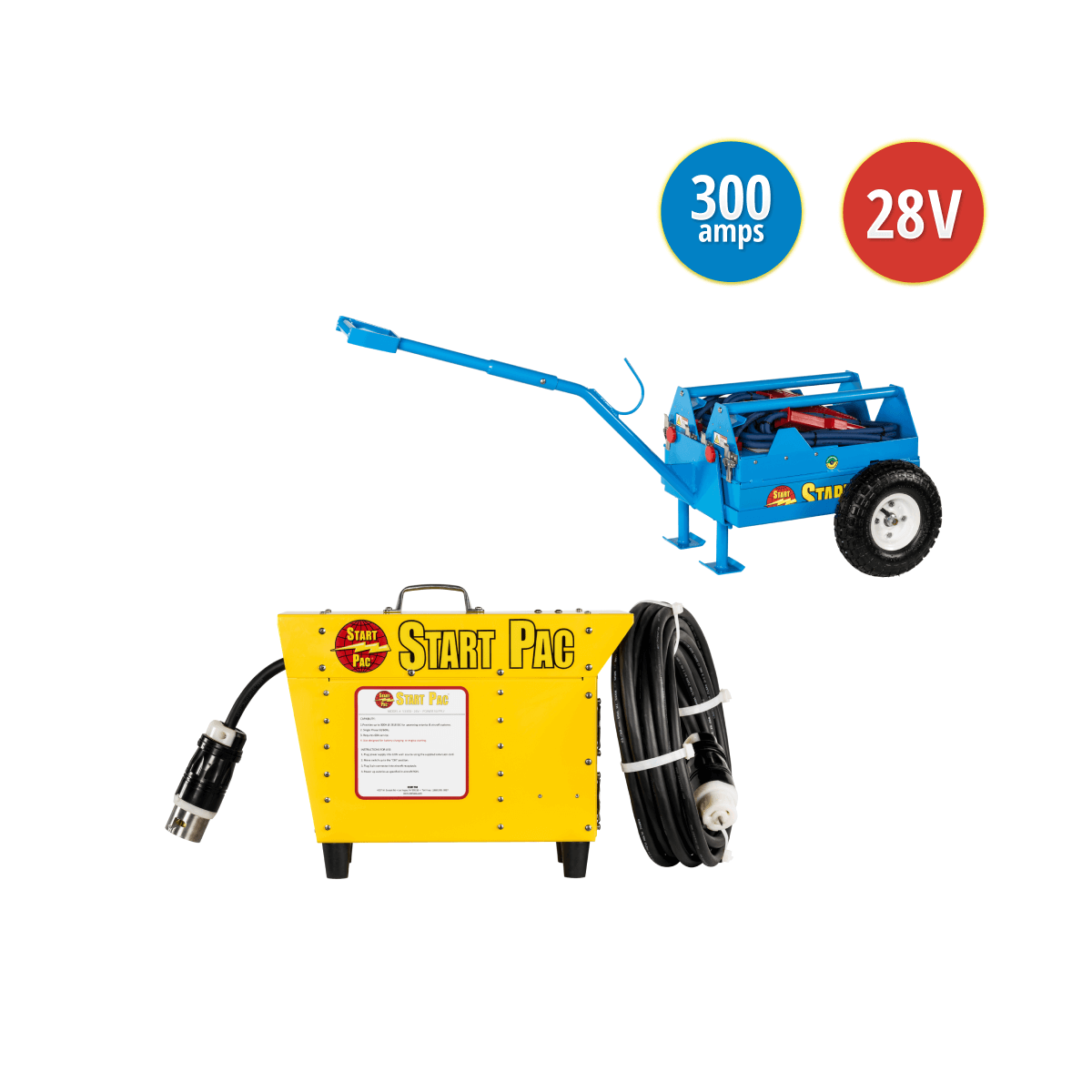

Model Li3326QC 300 Amp Set

Mobile 26V Lithium Aircraft START PAC
MODEL LI2700QC TWIN PAC
Mobile 24V/28V 300amp Aircraft Power Supply
MODEL 53300-24/28V
MODEL LI2700QC TWIN PAC

Mobile 26V Lithium Aircraft START PAC

PATENTED

This powerful Lithium Ion starting unit is a full 26VDC portable battery pack and will provide superior starts on all electrically-started turbine engines. This versatile Twin Pac can be used as a single unit or separated in order to have two complete Lithium units that can easily be on board different aircraft. It has redundant chargers with a total of 18 Amps output and a recharge time of approximately four hours.

Please Note

This unit is not designed for battery charging.

Specifications
  • Battery type Safe lithium-Ion
  • Voltage26 VDC
  • Peak Current 3500 A
  • Capacity @10 Amp Rate 62 Ah
  • Total Weight 80lbs/36kg
  • Dimensions – Length x Width x Height 52″ x 23″ x 23.5″ 132 x 58 x 60 cm
  • Charger type Built in
  • Float type charger input (must be specified on order) 90-240 VAC 50/60 hertz
  • Charging time range 30 minutes to 4 hours
MODEL 53300-24/28V

Mobile 24V/28V 300amp Aircraft Power Supply

When plugged into 220Volt single-phase AC power, START PAC® Model 53300 is a 28.5 Volt continuous DC power supply. This unit will deliver full 300 Amp DC output, but it won’t provide enough current for engine starting. This unit has been specifically designed for maintenance and to power up various functions, such as inverters, avionics, GPS and air conditioning. This unit requires 220 Volt single phase power to operate.

Please Note

This unit is not designed for battery charging.

Specifications
  • Maximum Continuous Current output 300 A
  • DC voltage output 28 VDC
  • AC voltage input 180 – 240 VAC
  • AC current input at maximum DC power output 40 A @220VAC
  • Phase Single
  • Forced air-cooling Yes
  • Over current protection Yes
  • Over voltage protection Yes
  • Over temperature protection Yes
  • Complete weight with aircraft cables 42lbs/19kg
  • Dimensions Length x Width x Height 20″ x 8″ x 13″ 51 x 20 x 33 cm

The engineers at START PAC specifically designed the new Li2700QC as an airplane starting unit for aircraft with voltage protection relays that are set lower than most aircraft, meaning that they cannot accept more than 29.5 volts from an external starting source. These aircraft include but are not limited to the Agusta Westland AW139, Sikorsky S-76, Eclipse 500 and both the Phenom 100 and Phenom 300.

This unit is designed for engine starting only.

  • Not to be used as an aircraft battery charger.
  • Do not charge in flight.

The all new START PAC® Model Li2700 QC Twin Pac utilizes the latest technology in Lithium batteries; these batteries provide the same power as the lead-acid type, but are 42% lighter and 32% smaller. In addition, lithium batteries have two other major advantages:

  1. Twice the battery life of lead-acid batteries
  2. No sulfation problems (can be left in a discharged state without causing damage)

NOTE: When storing the START PAC® for more than 30 days, remove the battery box from the charging unit and keep separately.

PLEASE NOTE: Lithium ion batteries can be damaged by deep discharges. Do not run the batteries down below 22 volts; a spike during a start is okay. Voltages below 22 will begin to damage the batteries and at 20 volts, the batteries will be damaged beyond repair.

This unit is NOT designed for engine starting or battery charging.

  • Over current protection
  • Over voltage protection
  • Over temperature protection
  • Forced air cooling.
  • Weights 40 lbs/ 18.1 kilos complete with power cable.
  • L 20″ x W 8″ x H 13″ / L 51cm x W 20cm x H 33cm
  • 8 foot power cable
  • CE Certified Components
