Model Li3328QC 105 Amp Set

Li2700 Twin Pac Lithium Power Supply for Aircraft GPU starting

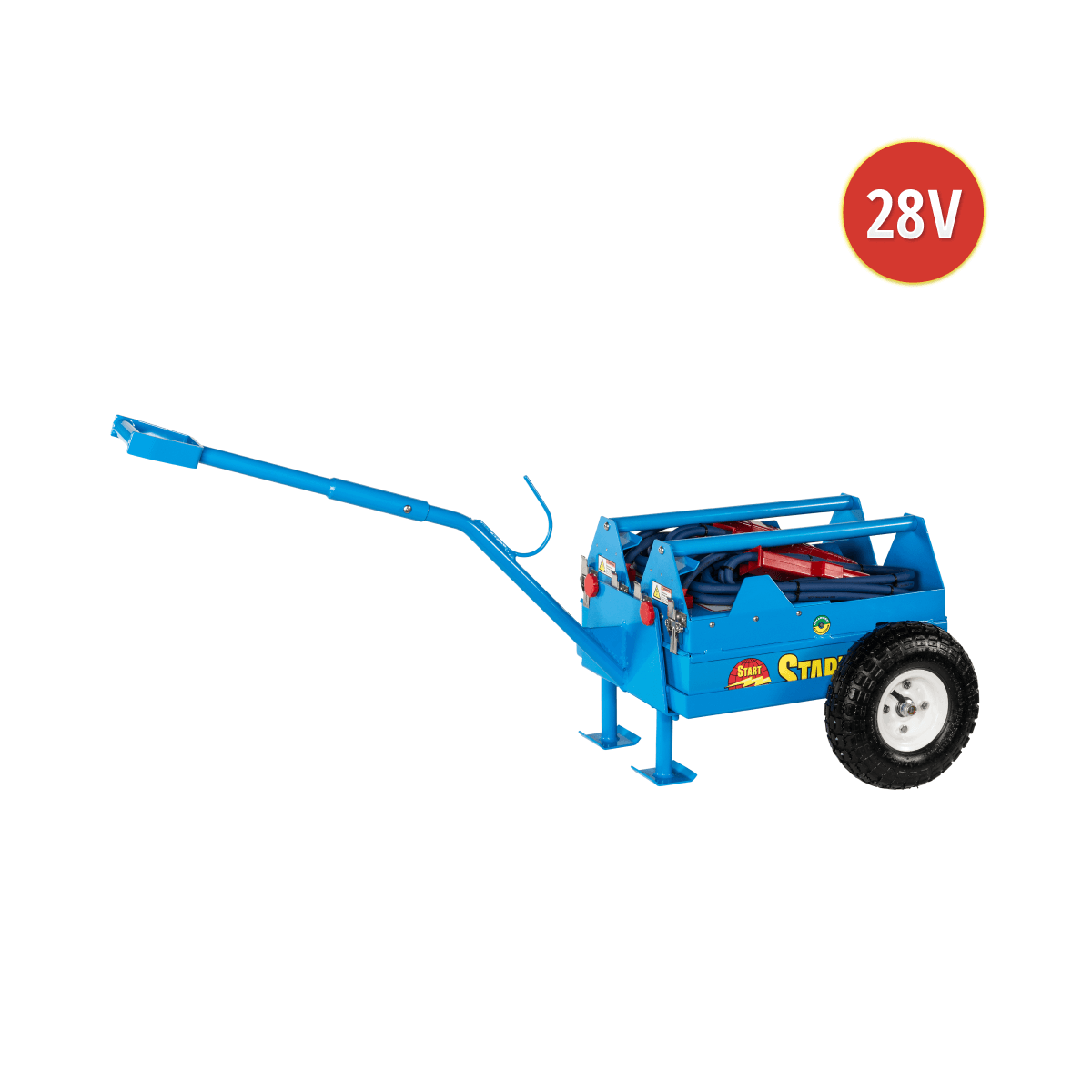

Model Li2800QC Twin Pac

PATENTED

This powerful Lithium aircraft starter unit is a full 28VDC battery Twin Pac and will provide superior starts on all electrically-started turbine engines. Versatile and highly portable, this Twin Pac can be used as a single unit or separated into two complete Lithium units that can easily be carried on board two different aircraft. The Lithium twin pack has redundant chargers with a total of 14 amps output and a recharge time of approximately four hours.

CONTACT US ABOUT THIS SET

PLEASE NOTE – THIS UNIT IS NOT DESIGNED FOR BATTERY CHARGING

STARTING UNIT model referenceLi2800QC Twin Pac
Battery typeSafe lithium-Ion
Voltage28 VDC
Peak Current3500 A
Capacity @10 Amp Rate62 Ah
Total Weight88lbs/40kg
Dimensions – Length x Width x Height52″ x 23″ x 23.5″ 132 x 58 x 60 cm
Charger typeBuilt in
Float type charger input (must be specified on order)90-240 VAC 50/60 hertz
Charging time range30 minutes to 4 hours
PRINT LI2800QC TWIN PAC SPEC SHEET
SPARES & ACCESSORIES

Model 53105-24/28V

When plugged into 220Volt single-phase AC power, the START PAC® Model 53105 is a 28.5 Volt continuous DC power supply. This unit will deliver full 105 amp DC output, but it will not provide enough current for engine starting. This unit has been specifically designed for maintenance and to power up various functions, such as inverters, avionics, GPS, etc.

PLEASE NOTE – THIS UNIT IS NOT DESIGNED FOR BATTERY CHARGING

POWER SUPPLY model reference53105M-24/28V
Maximum Continuous Current output105 A
DC voltage output28.5 VDC
AC voltage input180 – 240 VAC
AC current input at maximum DC power output14 A @220VAC
PhaseSingle
Forced air-coolingYes
Over current protectionYes
Over voltage protectionYes
Over temperature protectionYes
Complete weight with aircraft cables12lbs / 5.4kg
Dimensions Length x Width x Height16″ x 4 ⅜″ x 5 ¼″ 40 x 11.5 x 13.3 cm
53050-24/28V SPEC SHEET
SPARES & ACCESSORIES

This unit is specifically designed for engine starting only.

The all-new, patent pending START PAC® Model Li2800 QC Twin Pac utilizes the latest technology in Lithium batteries and lithium ground support equipment. Providing the same power as the lead-acid type, these batteries are superior being 42 percent lighter and 32 percent smaller. Additionally, lithium batteries have two other major advantages:

  1. Twice the battery life of lead-acid batteries
  2. No sulfation problems (can be left in a discharged state without causing damage)

Load vs. Time (click to view larger)

Li2800QC Twin Pac Load vs Time

Please handle this unit in a responsible manner. START PAC™ is not responsible for damage caused by misuse or neglect.

PLEASE NOTE: Lithium ion batteries can be damaged by deep discharges. Do not run the batteries down below 24 volts, although a spike during a start is okay. Voltages below 24 begin to damage the batteries. At 20 volts, the batteries will be damaged beyond repair.

All START PAC™ products come with a 1-year warranty on workmanship and materials.*

Please handle this unit in a responsible manner. START PAC™ is not responsible for damages caused by misuse or neglect.
