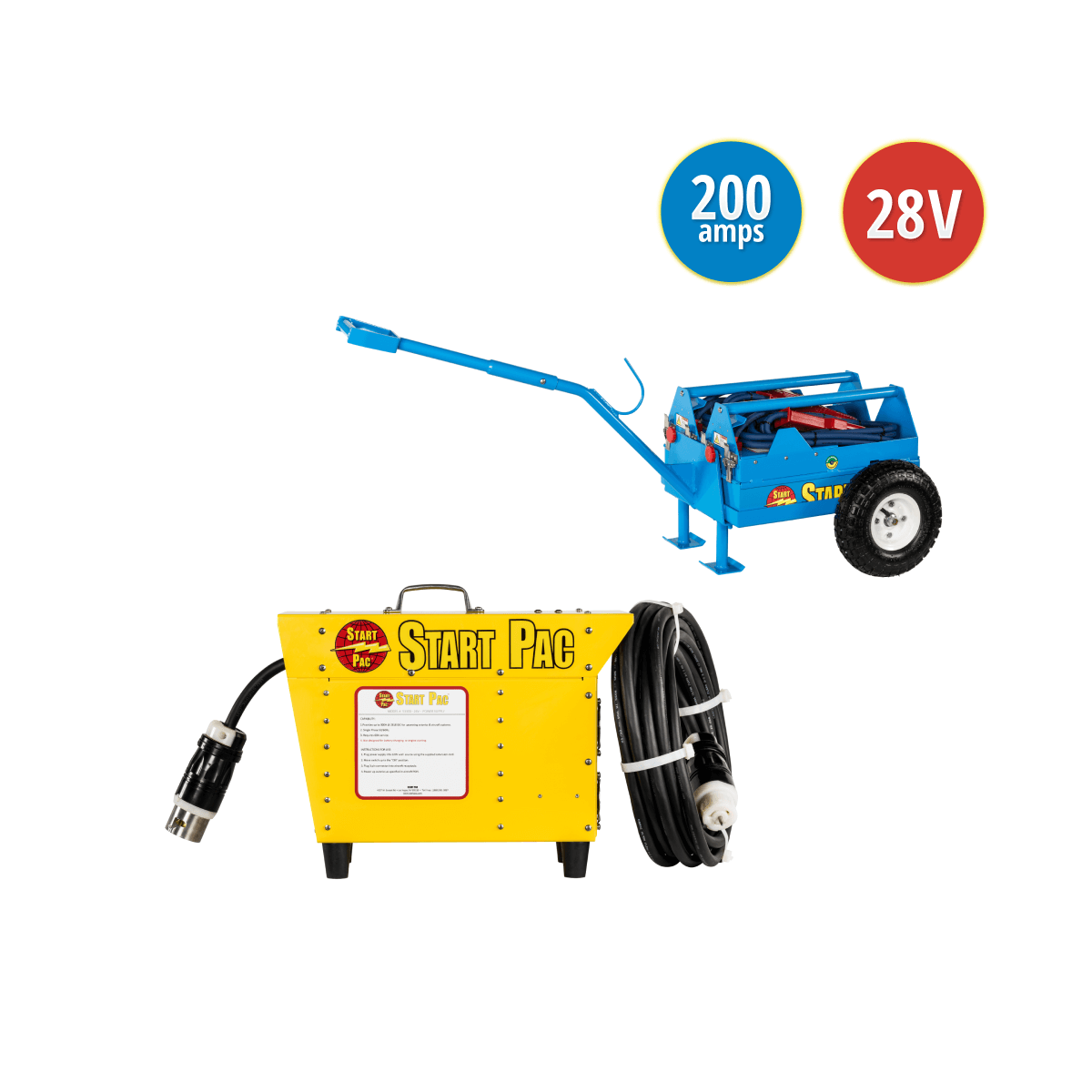

Model Li3328QC 200 Amp Set

Product Set

Model Li3328QC™/ 200 Amp Set

Mobile 28V DC Lithium Aircraft Starting Unit

Portable 24V-28V DC Aircraft Power Supply

Description

This unit is specifically designed for engine starting only.

Not to be used as an aircraft battery charger.
Do not charge in flight.

The all-new, patented START PAC® Model Li2800 QC Twin Pac™ utilizes the latest technology in Lithium batteries and lithium ground support equipment. Providing the same power as the lead-acid type, these batteries are superior being 42 percent lighter and 32 percent smaller. Additionally, lithium batteries have two other major advantages:

Twice the battery life of lead-acid batteries
No sulfation problems (can be left in a discharged state without causing damage)

Please handle this unit in a responsible manner. START PAC® is not responsible for damage caused by misuse or neglect.

PLEASE NOTE: Lithium ion batteries can be damaged by deep discharges. Do not run the batteries down below 25 volts, although a spike during a start is okay. Voltages below 24 begin to damage the batteries. At 20 volts, the batteries will be damaged beyond repair.

Special features:

Over current protection
Over voltage protection
Over temperature protection
Forced air cooling
Weights 40 lbs/ 18.1 kilos complete with power cable.
L 20″ x W 8″ x H 13″ / L 51cm x W 20cm x H 33cm
8 foot power cable
CE Certified Components

Remember that this unit has NOT been designed for engine starting.

Input and output cables may look different than what is shown in the photo.

https://startpac.com/contact/Contact us about this set

Mobile 28V DC Lithium Aircraft Starting Unit

PATENTED

This powerful Lithium aircraft starter unit is a full 28VDC battery Twin Pac and will provide superior starts on all electrically-started turbine engines. Versatile and highly portable, this Twin Pac can be used as a single unit or separated into two complete Lithium units that can easily be carried on board two different aircraft. The Lithium twin pack has redundant chargers with a total of 14 Amps output and a recharge time of approximately four hours.

/wp-content/uploads/2024/02/SPECIFICATION-SHEET_Li2800QC-TWIN-PAC.pdfPrint specification sheet

/wp-content/uploads/2024/02/SPARE-PARTS-ACCESSORIES_Li2800QC-Twin-Pac.pdfParts & Accessories

Specifications

Battery type Safe lithium-Ion
Voltage 28 VDC
Peak Current 3500 A
Capacity @10 Amp Rate 62 Ah
Total Weight 88lbs/40kg
Dimensions – Length x Width x Height 52″ x 23″ x 23.5″
132 x 58 x 60 cm
Charger type Built in
Float type charger input (must be specified on order) 90-240 VAC 50/60 hertz
Charging time range 30 minutes to 4 hours

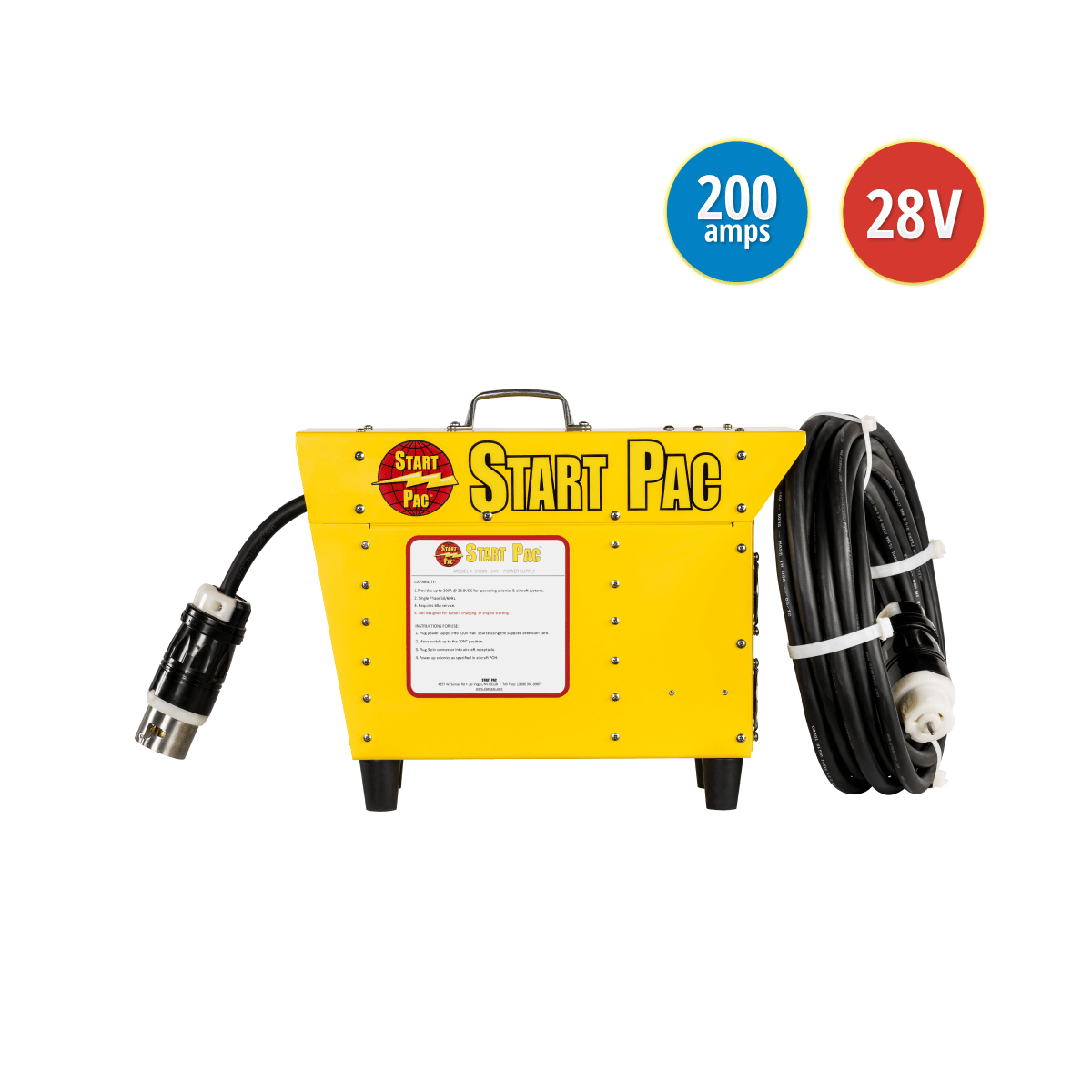

Portable 24V-28V DC Aircraft Power Supply

When plugged into 220Volt single-phase AC power, START PAC® Model 53200™ is a 28.5 Volt continuous DC power supply. This unit will deliver full 200 Amp DC output, but it won’t provide enough current for engine starting. This unit has been specifically designed for maintenance and to power up various functions, such as inverters, avionics, GPS and air conditioning.

/wp-content/uploads/2024/02/SPECIFICATION-SHEET_53200_24V.pdfPrint specification sheet

/wp-content/uploads/2024/02/SPARE-PARTS-ACCESSORIES_53200_24_28V.pdfParts & Accessories

Specifications

Maximum Continuous Current output 200 A
DC voltage output 28 VDC
AC voltage input 180 – 240 VAC
AC current input at maximum DC power output 27 A @220VAC
Phase Single
Forced air-cooling Yes
Over current protection Yes
Over voltage protection Yes
Over temperature protection Yes
Complete weight with aircraft cables 30lbs/13.6kg
Dimensions Length x Width x Height 20″ x 8″ x 13″
51 x 20 x 33 cm

https://startpac.com/contact/Contact us about this set
