T36 - 120V AC to Vehicle 36V DC Power Supply

Name: Model T36 – 120V AC to Vehicle 36V DC Power Supply
Brand: START PAC
Availability: InStock

Home > Shop > Model T36 – 120V AC to Vehicle 36V DC Power Supply

Model T36 – 120V AC to Vehicle 36V DC Power Supply

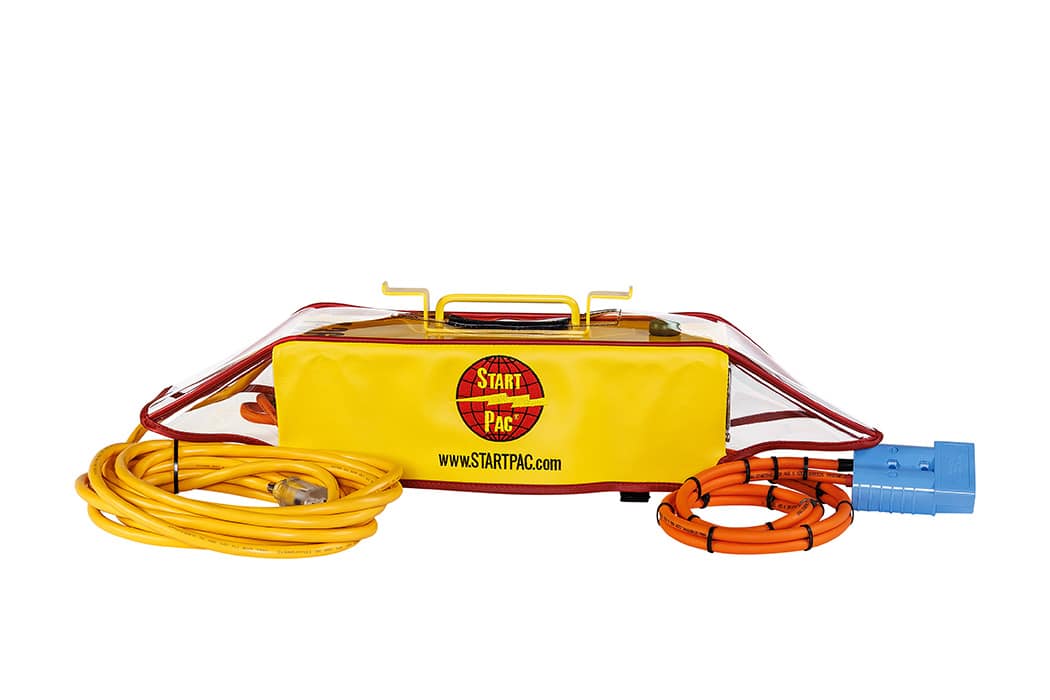

The 36T utilizes typical standard 120v 20A wall sockets to provide 1.5KW power to the vehicle. It is 15 lbs and highly mobile. The 36T model is designed to maintain the batteries and provide power to the vehicle’s basic systems. An optional weather-resistant cover can be purchased with this unit for outdoor use. This unit includes a 25 foot power input cable and 6 foot vehicle connection cable. Located at the top of the unit, an ON indicator helps understand if the power supply is connected and functioning.

Model: T36 – 120V

/contact/Contact us about this unit

/wp-content/uploads/2025/09/T36-Correct-Spec-Sheet.pdfPrint specification sheet

Description

The all new models 36T and 48T START PAC® units are specifically designed for the Autonomous Freightliner Cascadia vehicle with input from Daimler Truck North America PowerNet Engineering and Aftermarket Service team. Units connect via the shore power connector underneath the driver seat and provide direct power to the PowerNet system for multiple service and vehicle maintenance scenarios where the engine is not running. Units can be configured with various lengths of output cables.

Applications of a 36V DC Power Supply

A 36V DC power supply is commonly used in maintenance and service environments where stable electrical power is required without relying on the vehicle’s battery system. External DC power supplies allow technicians to operate electronic systems, perform diagnostics, or update software while the engine remains off.

In modern vehicles and equipment, many electronic components require a consistent power source during service procedures. Using a dedicated 36V DC power supply helps maintain stable voltage and prevents unnecessary battery drain while technicians perform inspections, testing, or system updates.

External DC power supplies are typically used in environments such as:

• vehicle maintenance facilities

• service workshops

• diagnostic testing environments

• electronic system calibration and programming

• maintenance scenarios requiring continuous DC power

The START PAC Model T36 provides stable external power designed to support these types of service operations when the engine is not running.

Specifications

Maximum Continuous Current output 35 A
DC voltage output 36 VDC
AC voltage input 180 – 240 VAC
AC current input at maximum DC power output 14 A @220VAC
Phase Single

INSTRUCTIONS FOR USE:

Do not crank and run engine while power supply is connected
Confirm power supply is switched OFF
Plug shore power connector to the vehicle
Plug power supply into 110v socket
Switch the power supply unit ON

FAQ

What is a 36V DC power supply used for?

A 36V DC power supply provides stable direct current for equipment and vehicle systems that require 36-volt power. These units are commonly used in service environments, diagnostics, and maintenance operations where electronic systems must operate without relying on the vehicle battery.

How does a 36 VDC power supply work?

A 36 VDC power supply converts incoming electrical energy, typically from an AC outlet, into regulated direct current. This allows technicians to safely power electronics, testing equipment, and maintenance tools that require stable DC voltage.

Can a 120V AC power supply be converted to 36V DC?

Yes. Many units function as a 120V AC to 36V DC power supply, converting standard wall outlet electricity into regulated DC output used by vehicle electronics and maintenance systems.

When should a vehicle power supply be used during maintenance?

A vehicle power supply is typically used when technicians need to operate electronic systems while the engine is off. Using an external power supply helps maintain stable voltage and prevents unnecessary battery drain during diagnostics, testing, or system updates.

What input power does the START PAC T36 require?

The START PAC Model T36 operates using a standard 120V AC power supply and converts it into stable 36V DC output, allowing technicians to safely power vehicle systems during maintenance and service procedures.
