Mobile 24V 29V 300Amp Aircraft Power Supply - Model 53300-24 29V

Mobile 24V/29V 300Amp
Power Supply – Model
53300™– 24V/29V

This START PAC® model has been designed to power up 29 Volt aircraft systems and will continuously deliver up to full 300 Amp DC output. The voltage output is set to 29 Volts to meet the requirements for Embraer Aircraft voltage sensitivities to simulate the same voltage as when the aircraft is running under power. This unit requires 220 Volt single phase power to operate.

Model: 53300™ – 24V/29V

Please NoteThis unit is not designed for battery charging.

/contact/Contact us about this unit
/wp-content/uploads/2024/02/SPECIFICATION-SHEET_53300_24V-1.pdfPrint specification sheet
/wp-content/uploads/2024/02/SPARE-PARTS-ACCESSORIES_53300_24_28V-1.pdfParts & Accessories
Description

This START PAC® unit has been specifically designed for maintenance and to power up various functions such as inverters, avionics, GPS programming and on-board air conditioning, etc. Using this START PAC® power supply means that the operator can bypass the aircraft battery, thus preserving it from unnecessary wear. The on board aircraft battery can be conserved for starting only. The environmentally responsible, low VOC powder coating protects the unit from wear, tear and poor weather conditions.

Specifications
  • Maximum Continuous Current output 300 A
  • DC voltage output 28 VDC
  • AC voltage input 180 – 240 VAC
  • AC current input at maximum DC power output 40 A @220VAC
  • Phase Single
  • Forced air-cooling Yes
  • Over current protection Yes
  • Over voltage protection Yes
  • Over temperature protection Yes
  • Complete weight with aircraft cables 42lbs/19kg
  • Dimensions Length x Width x Height 20″ x 8″ x 13″
    51 x 20 x 33 cm

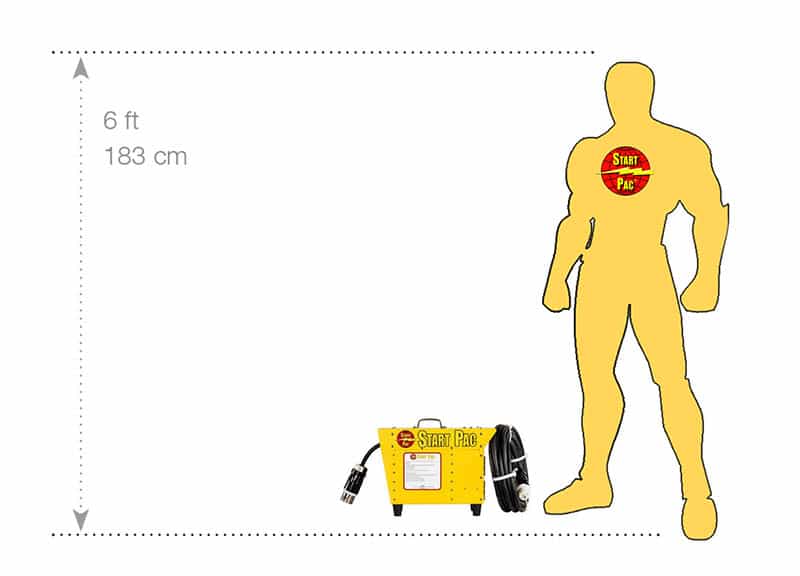

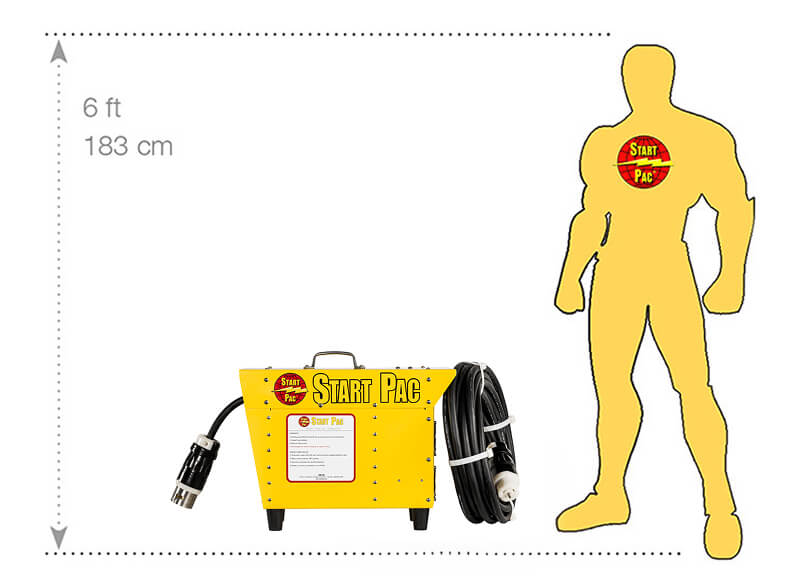

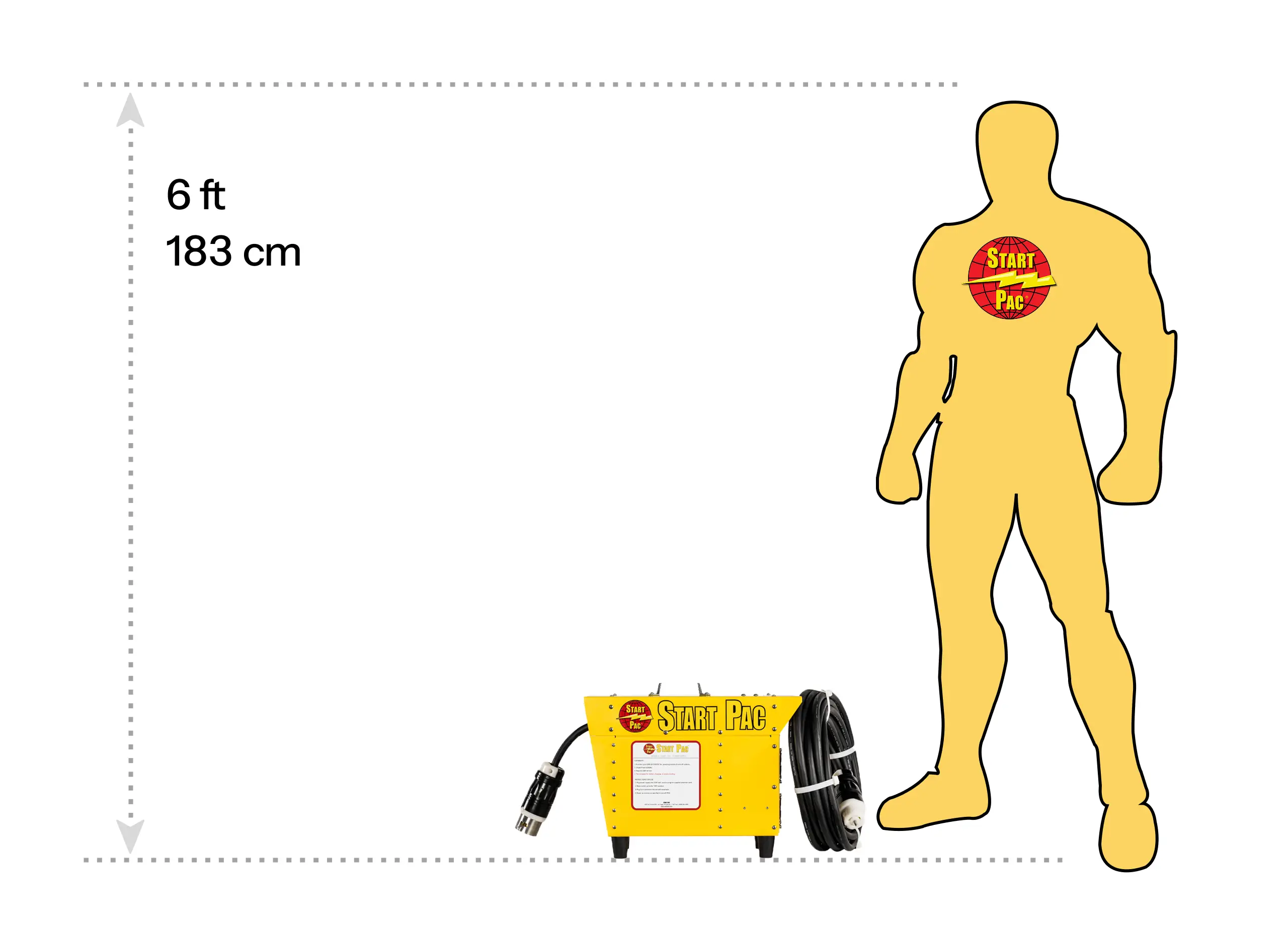

Model 53300-24/29V Size
