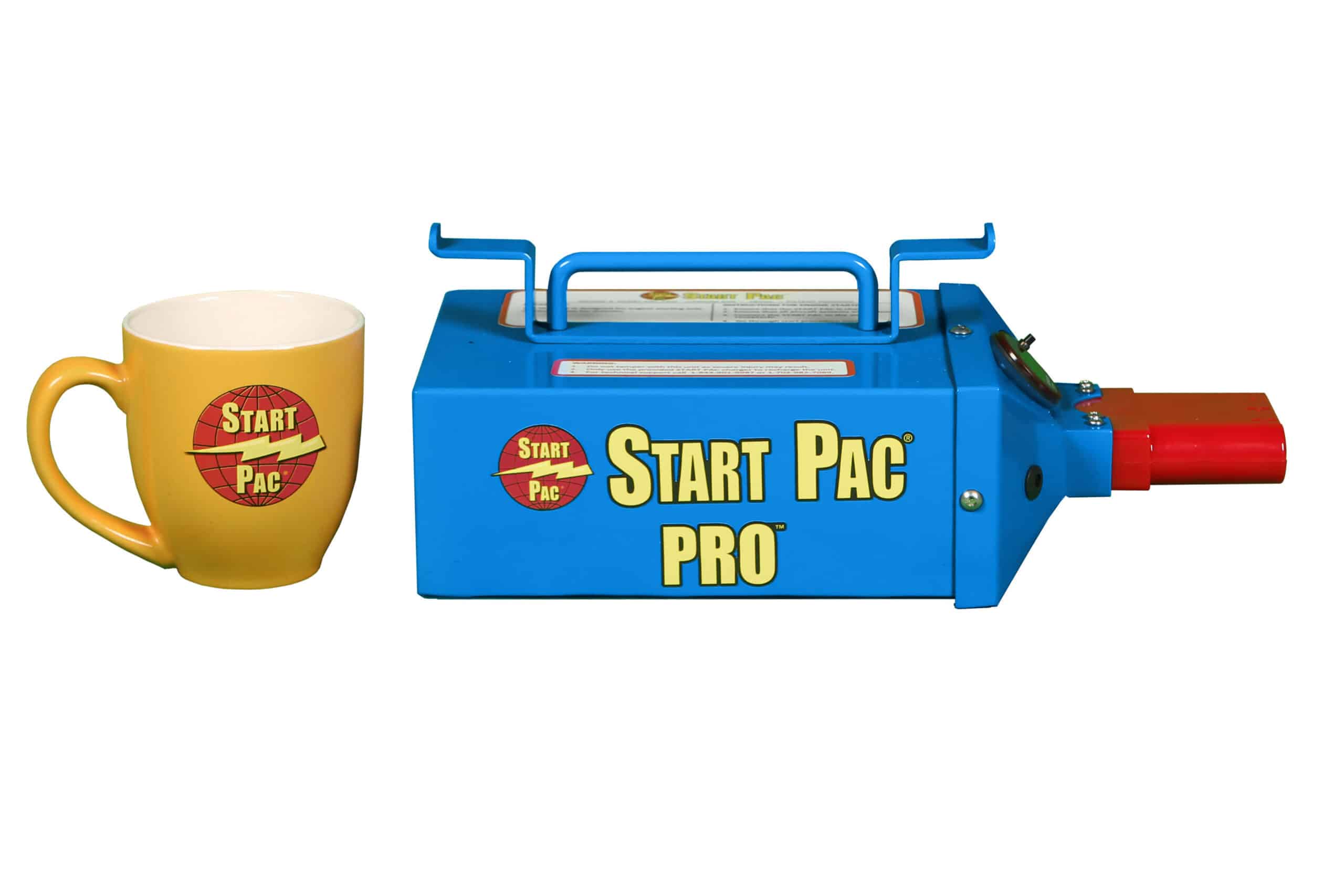

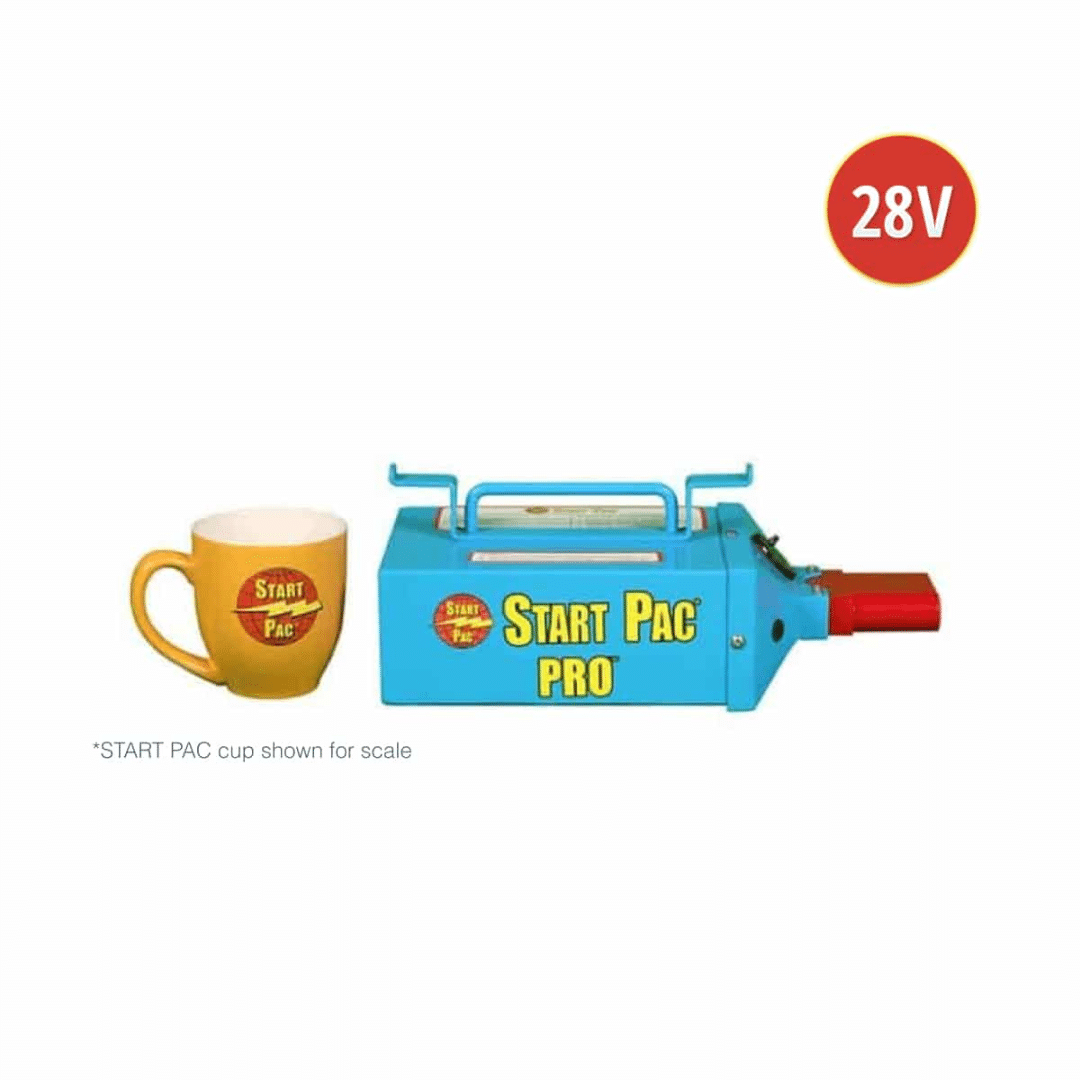

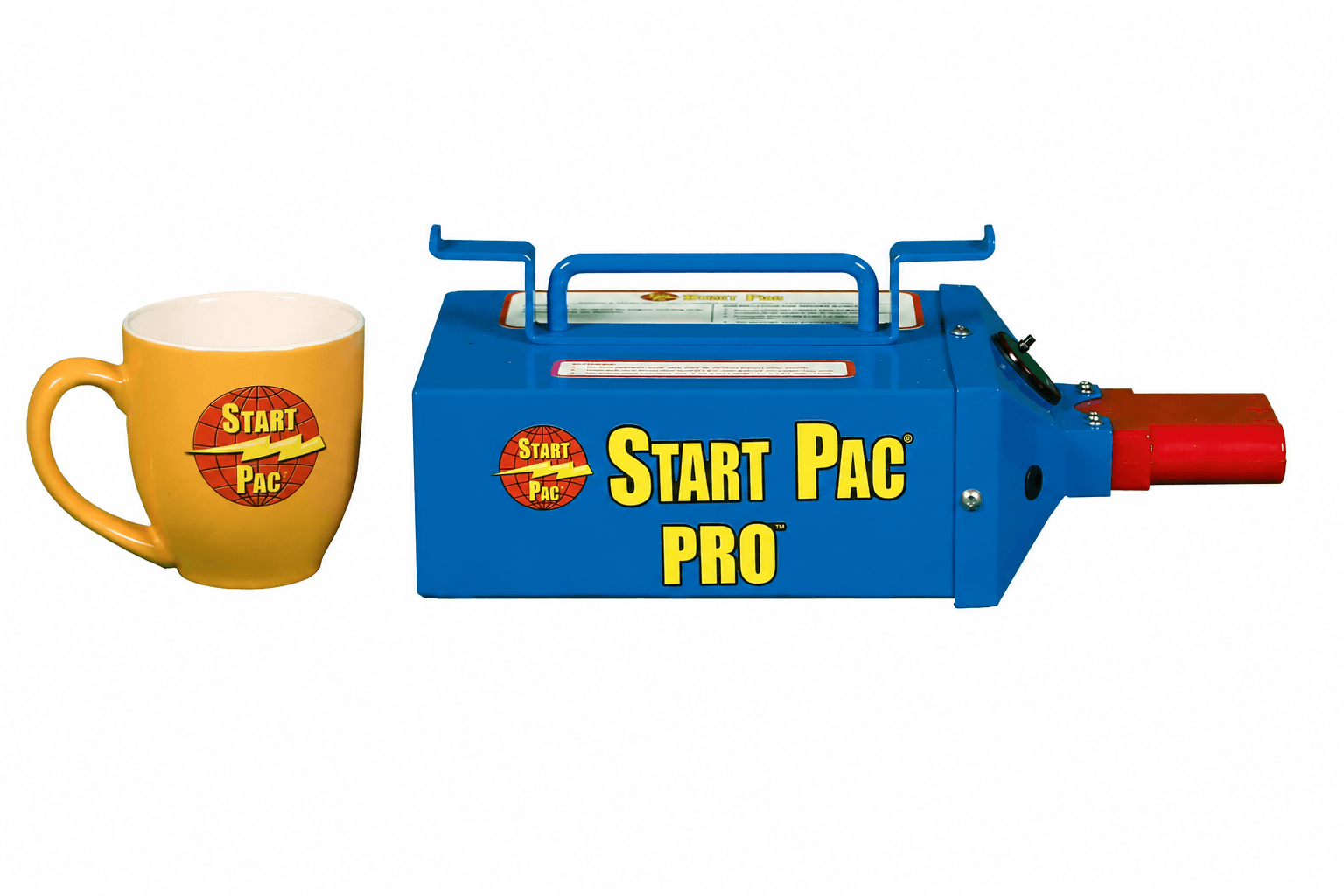

Model START PAC PRO

Portable 28V Lithium Aircraft Starting Unit

PATENT PENDING

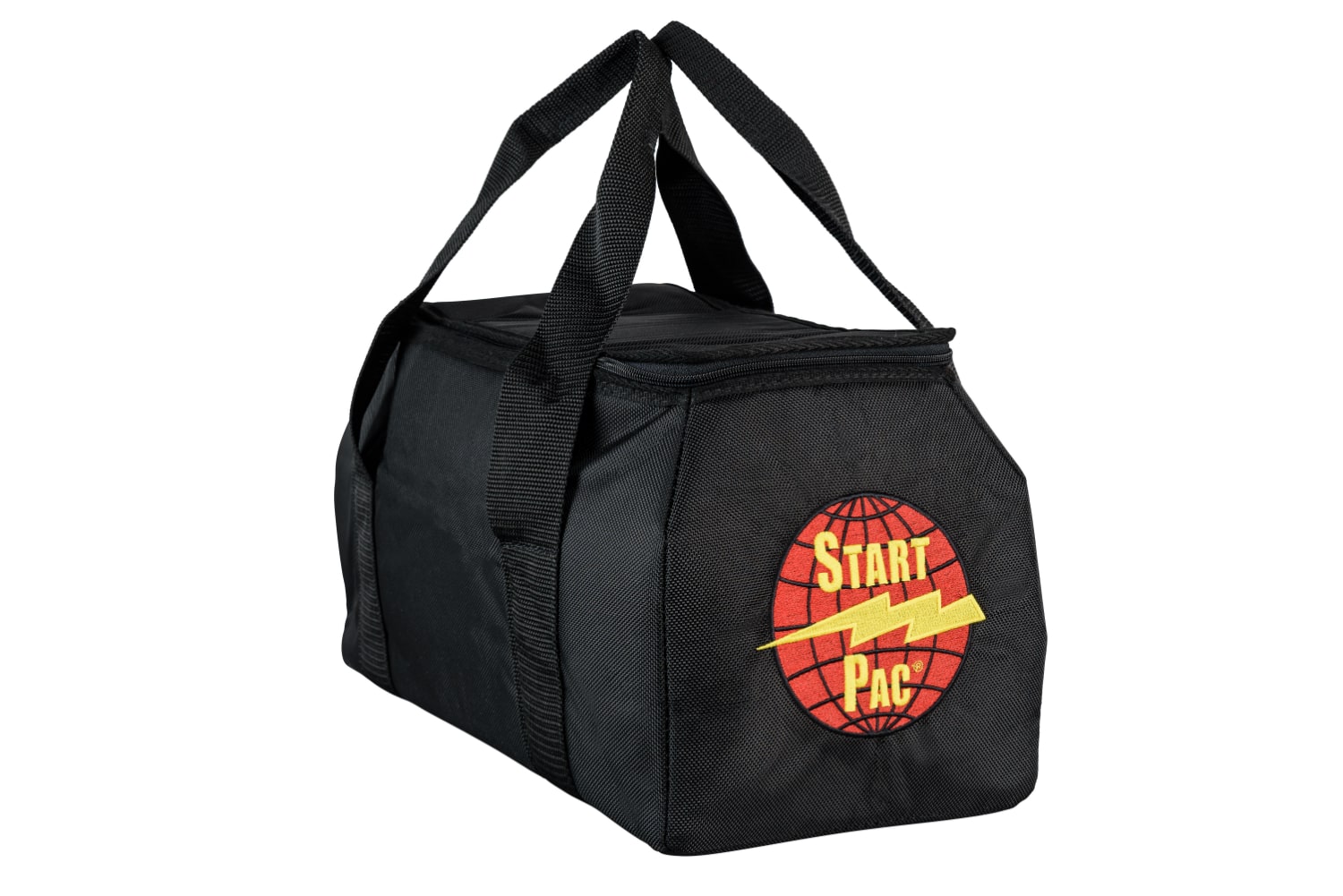

This light duty air portable/carry-on START PAC® lithium-ion unit is the smallest, lightest and one and only true 28V micro starting unit on the market. Providing emergency starting for turbine or piston engines, it weighs only 14lbs/6.3kg. This unit comes with a carrying case and aircraft adapter cable to prevent torquing on the aircraft receptacle.

CONTACT US ABOUT THIS UNIT
PRINT SPECIFICATION SHEET
PARTS & ACCESSORIES

PLEASE NOTE – THIS UNIT IS NOT DESIGNED FOR BATTERY CHARGING

STARTING UNIT model referenceSTART PAC PRO
Battery typeSafe lithium-Ion
Voltage28 VDC
Peak Current1800 A
Capacity @10 Amp Rate14 Ah
Total Weight14 lbs/6.3 kg
Dimensions – Length x Width x Height13.75″ x 7″ x 5.25″ 34.9 x 17.8 x 13.3 cm
Charger typeExternal
Float type charger input (must be specified on order)110-240 VAC 50/60 hertz
Charging time range30 minutes to 3 hours

This START PAC® will provide a faster and cooler engine start than most ship’s aircraft batteries (the turbine is spooled to more revolutions per second before fuel is injected). Thus, turbine life will be extended because there is less stress on the starter and other engine components. This will preserve the aircraft’s costly batteries and help lower operating costs. Your on-board battery can then be saved for emergency use only.

As it’s super portable, this starting unit can be carried on-board easily and it comes into its own when out in the field, securing all your engine starts and ensuring that you don’t experience any downtime, even in remote locations. Certain aircraft will also allow the ship’s generator to back charge a GPU. In this manner, the START PAC® can be recharged in the field without an AC source indefinitely. Once back at home base, it can also be used as a light duty jump starter.

Virtually maintenance free, this lightweight solution is unique in that it addresses requirements across civil, commercial and military markets. Helicopters, fixed wing aircraft and military UAVs, the START PAC PRO does not discriminate; it can jump start them all.

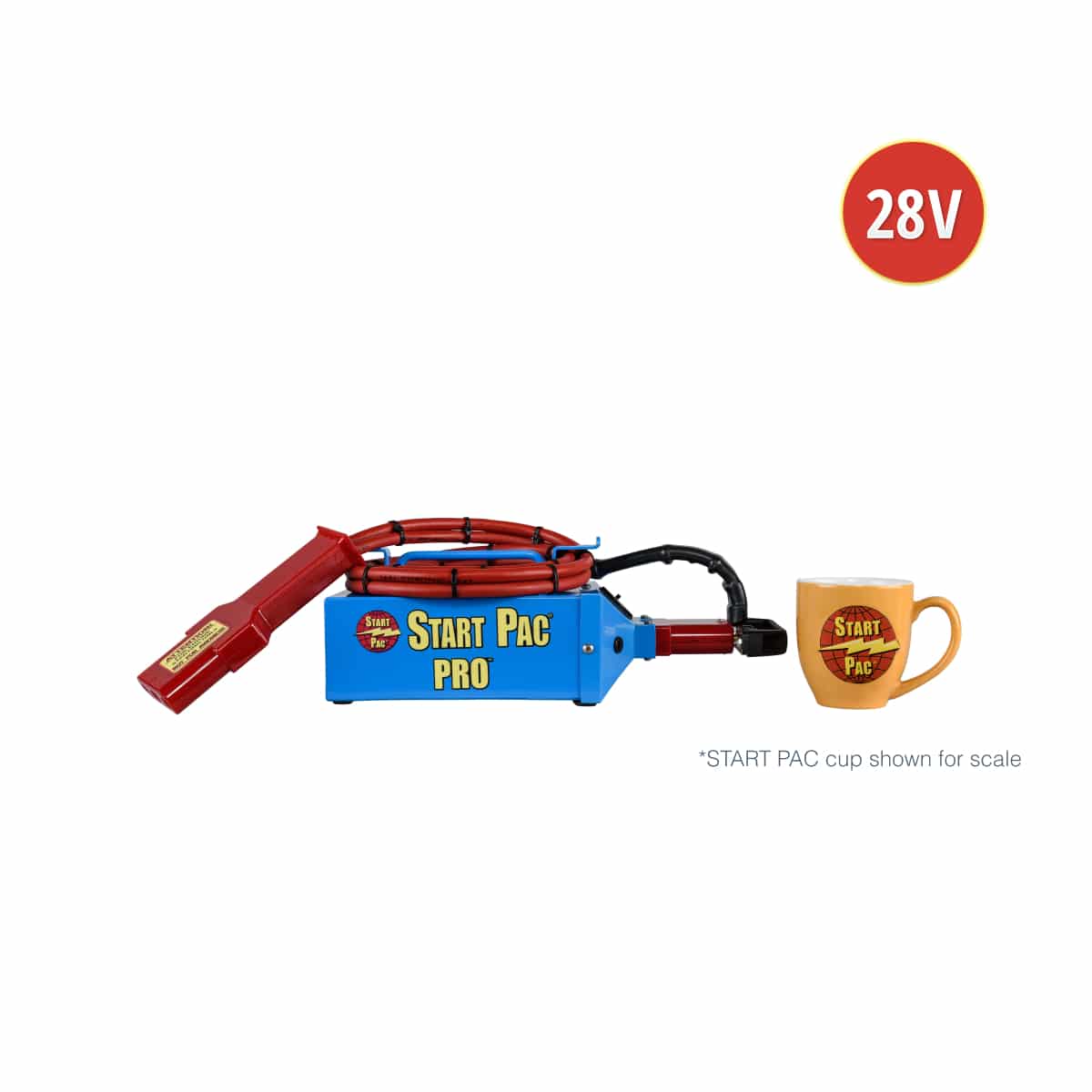

The environmentally responsible, low VOC powder coating protects the case of the unit from wear, tear and poor weather conditions. Additionally, the START PAC PRO comes standard as a complete set with a patent pending aircraft cable adaptor kit, proprietary external charger and carrying case.

Load vs. Time (click to view larger)

START PAC Pro Load vs Time Curve

All START PAC™ products come with a 1-year warranty on workmanship and materials.*

Please handle this unit in a responsible manner. START PAC™ is not responsible for damages caused by misuse or neglect.

START PAC Logo

Need Assistance?

START PAC offers a wide selection of power supplies, starting units and combination Aircraft Ground Power Units (GPU). Browse our website to read about our extensive product line or visit our tutorial section to gain a more technical insight into our products. If you have a question or need help finding the right product for your aircraft, locomotive or vehicle, START PAC provides customer service support via phone and email. One of our friendly and knowledgeable experts will guide you to the product suited to your specific needs. If – for whatever reason – you are unhappy with your START PAC product, simply send return the unit to us for a full refund.

Why buy from START PAC®?

Made in the USA and developed with the latest state-of-the-art battery and power management technology, our products are trusted the world over. START PAC power supplies are built for heavy duty application and are designed to withstand all environments, however tough. START PAC boasts superior technical and after sales support thanks to our long standing industry experience and our passion for the industries in which we work. START PAC offers unparalleled value for money and fast global shipping via our international dealership network.

*Batteries are cycle-dependent and are therefore not covered under this warranty.
