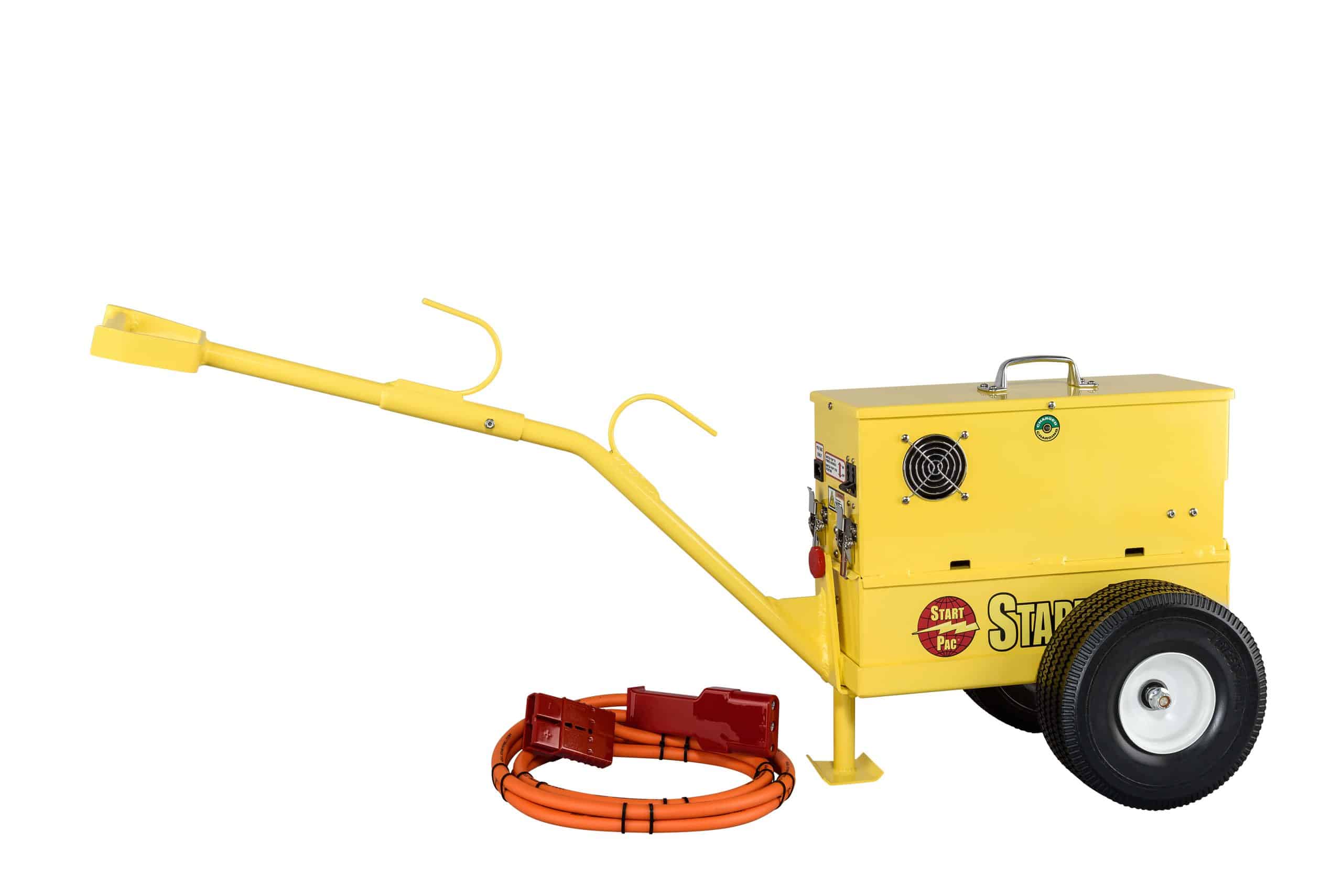

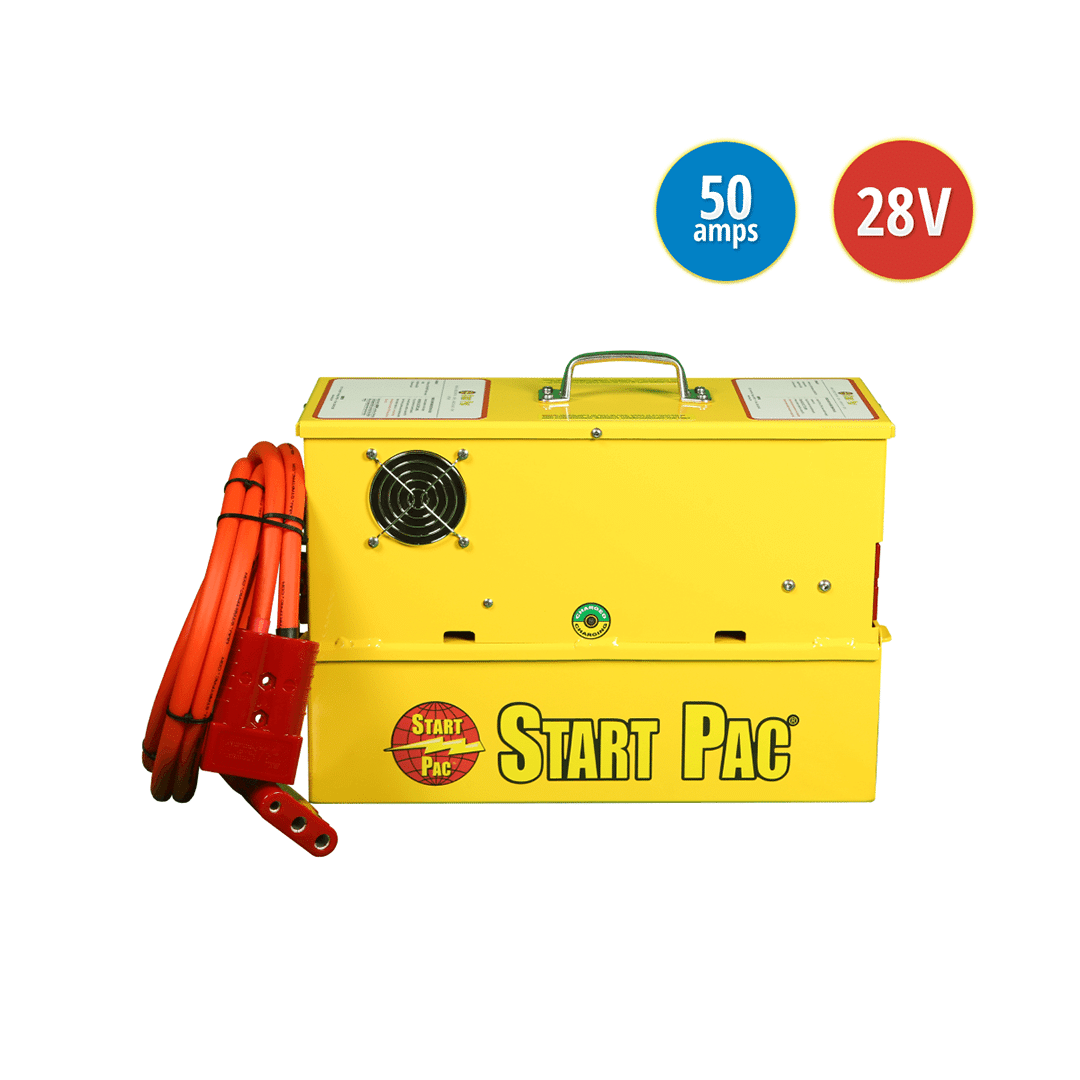

Compact 26V Aircraft Ground Power Unit – Model SUPER PAC 6028QC/50

This full 28V Micro GPU will provide better starts than the onboard battery on all electrically started turbine engines, as well as 50A continuous power for powering up aircraft systems.

Model: SUPER PAC 6028QC/50– micro GPU

Please NoteThis unit is not designed for battery charging.

Description

This very compact and powerful START PAC® utilizes our proprietary Quick Change technology (removeable batteries that can be changed in less than one minute),combined with a lightweight 50 amp power supply. It allows for excellent engine starts, as well as 28.5V of clean unlimited continuous, no duty cycle power when connected to the AC mains, for powering up 28V aircraft systems. It will provide a faster and cooler engine start.

Specifications
  • Battery type Lead acid
  • Voltage28 VDC
  • Peak Current 2300 A
  • Capacity @10 Amp Rate 28 Ah
  • Charger typeBuilt in
  • Recharge time range Between 1 and 4 hours
  • Maximum Continuous Current output 50
  • DC voltage output28.5 VDC
  • AC voltage input *Must be specified on order110 VAC or 220 VAC
  • AC current input at maximum DC power output14A @110VAC 7A @220VAC
  • Phase Single
  • Forced air-cooling Yes
  • Over current protection Yes
  • Over voltage protectionYes
  • Over temperature protectionYes
  • Complete Weight 79lbs / 35kg
  • Dimensions - Length x Width x Height 19.2” x 7.5” x 14” 49 x 19 x 36 cm

The environmentally responsible low VOC powder coating protects the case from wear and poor weather conditions These units come standard with the QC trolley. Still portable they can be used at home base and in the field and are an ideal alternative to larger traditional GPUs.

Certain aircraft will allow the ship’s generator to backcharge a GPU. In this manner, the START PAC® unit can be recharged in the field without an AC source indefinitely.

Proprietary Copyright © 2020 START PAC® MADE IN USA

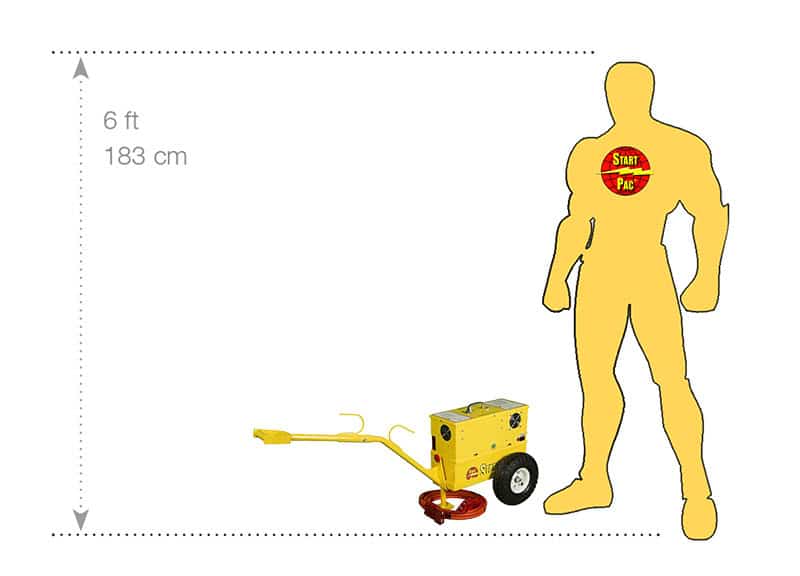

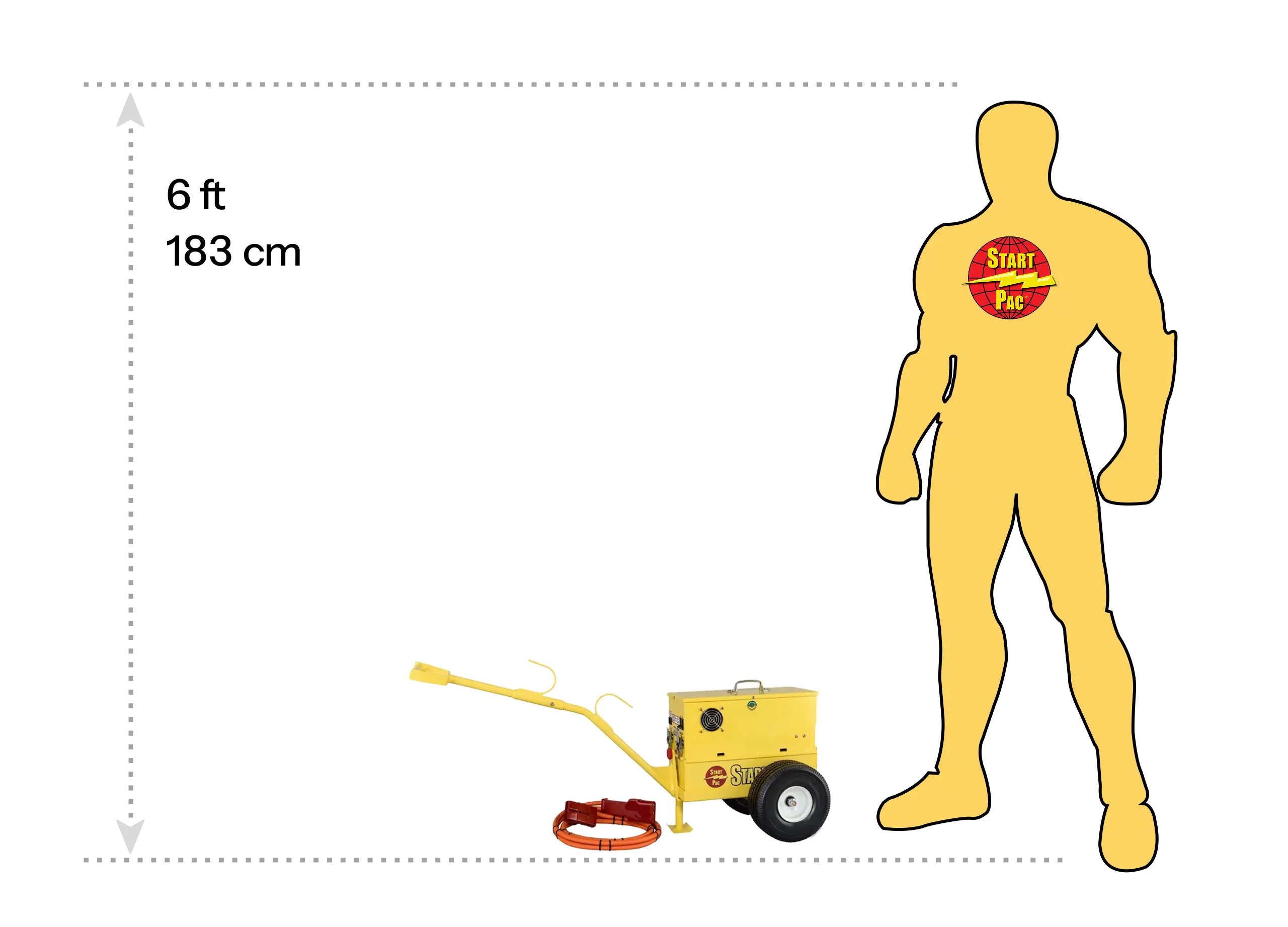

SUPER PAC MICRO GPU Size

Product Features:
  • Compact and lightweight
  • Air portable/carry on START PAC® for whenever power is needed
  • No duty cycle, clean continuous power
  • Complete all-in-one unit is supplied with built-in smart float type chargers for faster recharge, trolley, power plug and7ft/2.1m aircraft cables
  • Integrated LED charge indicator
  • Cold resistant, valve regulated high amperage output lead acid batteries
  • Powerful, sealed cells non-hazardous battery pack, can be used in any position
  • Maintenance free
  • Nontoxic, non-spillable and recyclable batteries
  • Resistant aluminum case with environmentally friendly, low VOC durable powder coat finish, easy to handle, built for heavy duty usage
  • Patented Quick Change design: less than one minute battery change for easy replacement
  • Integrated Voltmeter
