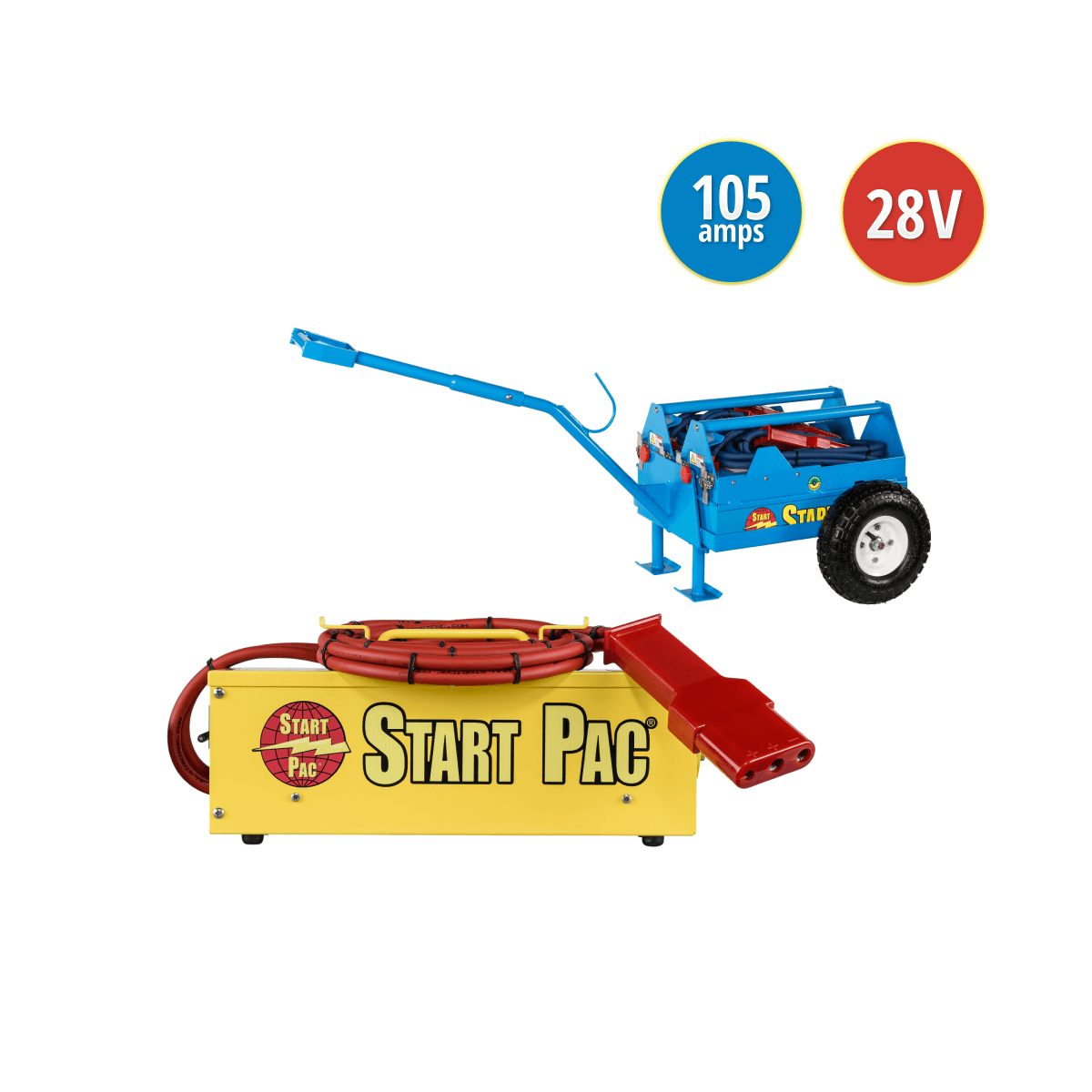

Model Li3326QC 105 Amp Set

Model Li2700QC Twin Pac Starting

PATENTED

This powerful Lithium Ion starting unit is a full 26VDC portable battery pack and will provide superior starts on all electrically-started turbine engines. This versatile Twin Pac can be used as a single unit or separated in order to have two complete Lithium units that can easily be taken on board different aircraft.  The unit has redundant chargers with a total of 18 amps output and a recharge time of approximately four hours.

Print Li2700QC Twin Pac Spec Sheet

Model 53105-24/28V

When plugged into 220Volt single-phase AC power, the START PAC® Model 53105 is a 28.5 Volt continuous DC power supply.  This unit will deliver full 105 amp DC output, but it will not provide enough current for engine starting.  This unit has been specifically designed for maintenance and to power up various functions, such as inverters, avionics, GPS, etc.

Print Model 53105-24/28V Spec Sheet
STARTING UNIT model referenceLi2700QC Twin Pac
Battery typeSafe lithium-Ion
Voltage26 VDC
Peak Current2400 A
Capacity @10 Amp Rate62 Ah
Total Weight105lbs / 47.6kg
Dimensions - Length x Width x Height52″ x 23″ x 23.5″ 132 x 58 x 60 cm
Charger typeBuilt in
Float type charger input (must be specified on order)90-240 VAC 50/60 hertz
Charging time range30 minutes to 4 hours

The engineers at START PAC specifically designed the new Li2700QC as an airplane starting unit for aircraft with voltage protection relays that are set lower than most aircraft, meaning that they cannot accept more than 29.5 volts from an external starting source.  These aircraft include, but are not limited to, the Agusta Westland AW139, Sikorsky S-76, Eclipse 500 and both the Phenom 100 and Phenom 300.

This unit is designed for engine starting only.

  • Not to be used as an aircraft battery charger.
  • Do not charge in flight.

The all new START PAC® Model Li2700 QC Twin Pac utilizes the latest technology in Lithium batteries; these batteries provide the same power as the lead-acid type, but are 42% lighter and 32% smaller.  In addition, lithium batteries have two other major advantages:

  1. Twice the battery life of lead-acid batteries
  2. No sulfation problems (can be left in a discharged state without causing damage)

Load vs. Time (click to view larger)
Li2700QC Twin Pac Load vs Time Curve

NOTE: When storing the START PAC® for more than 30 days, remove the battery box from the charging unit and keep separately.

PLEASE NOTE: Lithium ion batteries can be damaged by deep discharges.  Do not run the batteries down below 22 volts; a spike during a start is okay. Voltages below 22 will begin to damage the batteries and at 20 volts, the batteries will be damaged beyond repair.

POWER SUPPLY model reference53105-24/28V
Maximum Continuous Current output105 A
DC voltage output28.5 VDC
AC voltage input90 - 240 VAC
AC current input at maximum DC power output27 A @110VAC 14 A @220VAC
PhaseSingle
Forced air-coolingYes
Over current protectionYes
Over voltage protectionYes
Over temperature protectionYes
Complete weight with aircraft cables18lbs / 8.2kg
Dimensions Length x Width x Height14.5″ x 7″ x 13.75″ 37 x 18 x 35 cm

On board air conditioning systems are high draw systems that usually require a minimum of 175A.

Special features:

  • Over current protection
  • Over voltage protection
  • Over temperature protection
  • Forced air cooling
  • 8 foot power cable
  • Weighs 18 lbs./8.18 kilos kilos complete with power cable
  • 14.5″x7″x13.75″/ L 37cm x W 18cm x H 35cm
  • CE Certified

Remember that this unit is NOT designed for engine starting or battery charging.

Contact us about this set

All START PAC™ products come with a 1-year warranty on workmanship and materials.*

Please handle this unit in a responsible manner.  START PAC™ is not responsible for damages caused by misuse or neglect.
